SR60SGC - Closed Screw Spacer Grommet Nuts
Showing 1-10 of 18
Per page:1-10 of 18

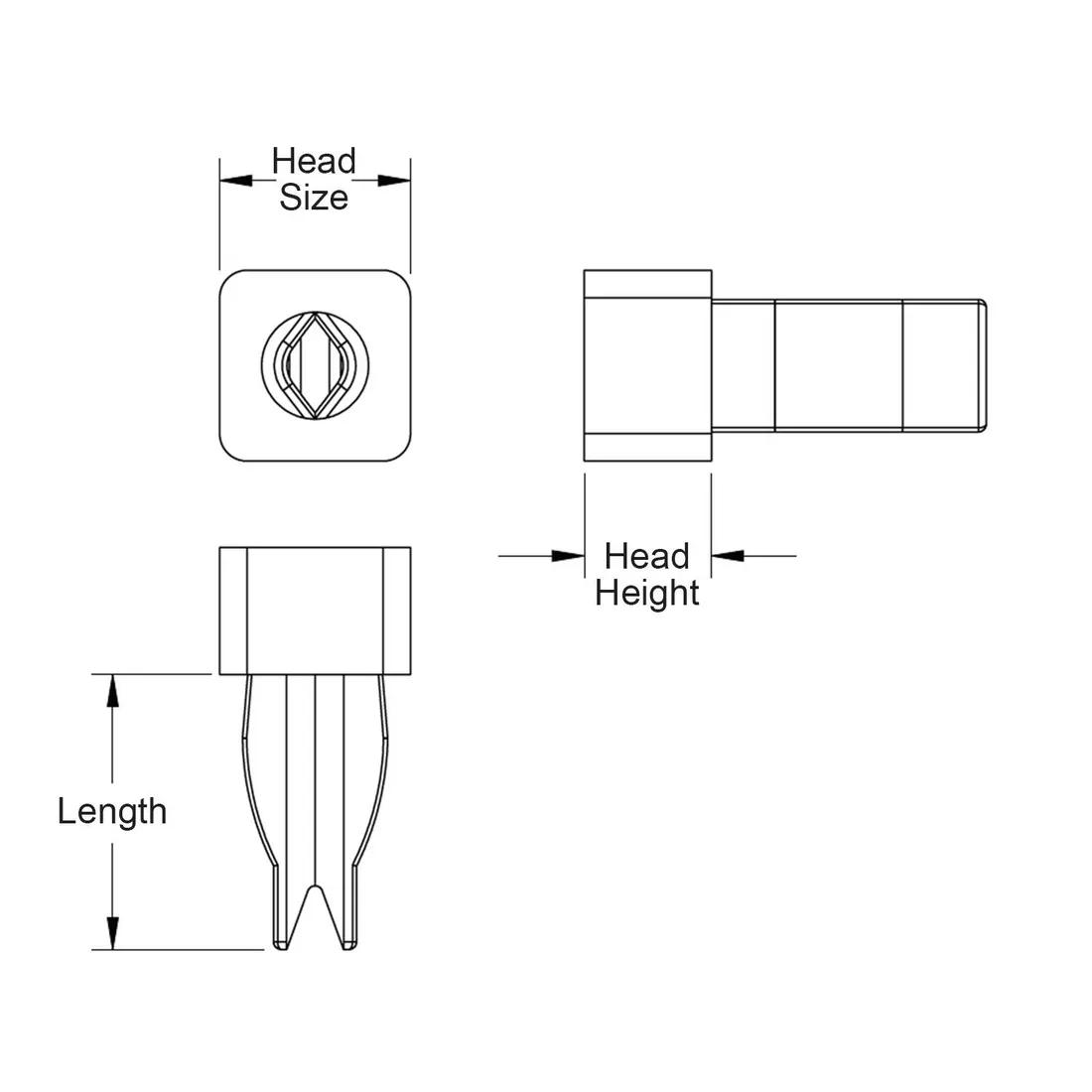

Item Code | Color | Material | Hole Size | Maximum Panel Thickness | Head Height | Material Flammability Standard | Screw Size | Minimum Panel Thickness | Head Length | Spacer Length | Head Width | Maximum Operating Temperature | Minimum Operating Temperature | Head Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
60SGC00004B | Black | Nylon 6/6 | 0.270 x 0.290 in | 0.140 in | 0.250 in | UL94 V-2 | #8;#10 | 0.020 in | - | - | - | - | - | - | |
60SGC00006B | Black | Nylon 6/6 | 0.309 x 0.315 in | 0.140 in | 0.062 in | UL94 V-2 | #8;#10 | 0.020 in | - | - | - | - | - | - | |
60SGC00005B | Black | Nylon 6/6 | 0.309 x 0.315 in | 0.140 in | 0.031 in | UL94 V-2 | #8;#10 | 0.020 in | - | - | - | - | - | - | |
60SGC00007B | Black | Nylon 6/6 | 0.309 x 0.315 in | 0.140 in | 0.125 in | UL94 V-2 | #8;#10 | 0.020 in | - | - | - | - | - | - | |
60SGC00002B | Black | Nylon 6/6 | 0.270 x 0.290 in | 0.140 in | 0.062 in | UL94 V-2 | #8;#10 | 0.020 in | - | - | - | - | - | - | |
60SGC00003B | Black | Nylon 6/6 | 0.270 x 0.290 in | 0.140 in | 0.125 in | UL94 V-2 | #8;#10 | 0.020 in | - | - | - | - | - | - | |
60SGC00001B | Black | Nylon 6/6 | 0.270 x 0.290 in | 0.140 in | 0.031 in | UL94 V-2 | #8;#10 | 0.020 in | - | - | - | - | - | - | |
60SGC00010B | Black | Nylon 6/6 | 0.250 ix 0.281 in | 0.140 in | 0.125 in | UL94 V-2 | #8;#10 | 0.020 in | - | - | - | - | - | - | |
60SGC00008B | Black | Nylon 6/6 | 0.309 x 0.315 in | 0.140 in | 0.250 in | UL94 V-2 | #8;#10 | 0.020 in | - | - | - | - | - | - |
Per page:
1-10 of 18
1–5 of 18 variants
Per page:
60SGC00004B
Color
Black
Material
Nylon 6/6
Hole Size
0.270 x 0.290 in
Maximum Panel Thickness
0.140 in
60SGC00006B
Color
Black
Material
Nylon 6/6
Hole Size
0.309 x 0.315 in
Maximum Panel Thickness
0.140 in
60SGC00005B
Color
Black
Material
Nylon 6/6
Hole Size
0.309 x 0.315 in
Maximum Panel Thickness
0.140 in
60SGC00007B
Color
Black
Material
Nylon 6/6
Hole Size
0.309 x 0.315 in
Maximum Panel Thickness
0.140 in
Per page:
1–5 of 19
