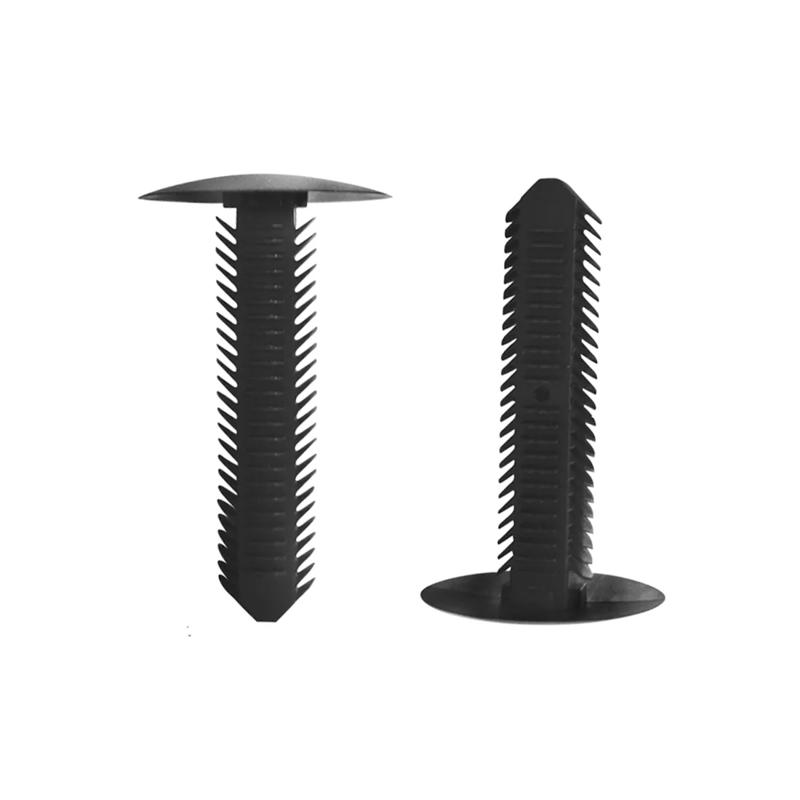

SRXT/RBF - Fir Tree Rivets
Showing 1-10 of 100
Per page:1-10 of 100

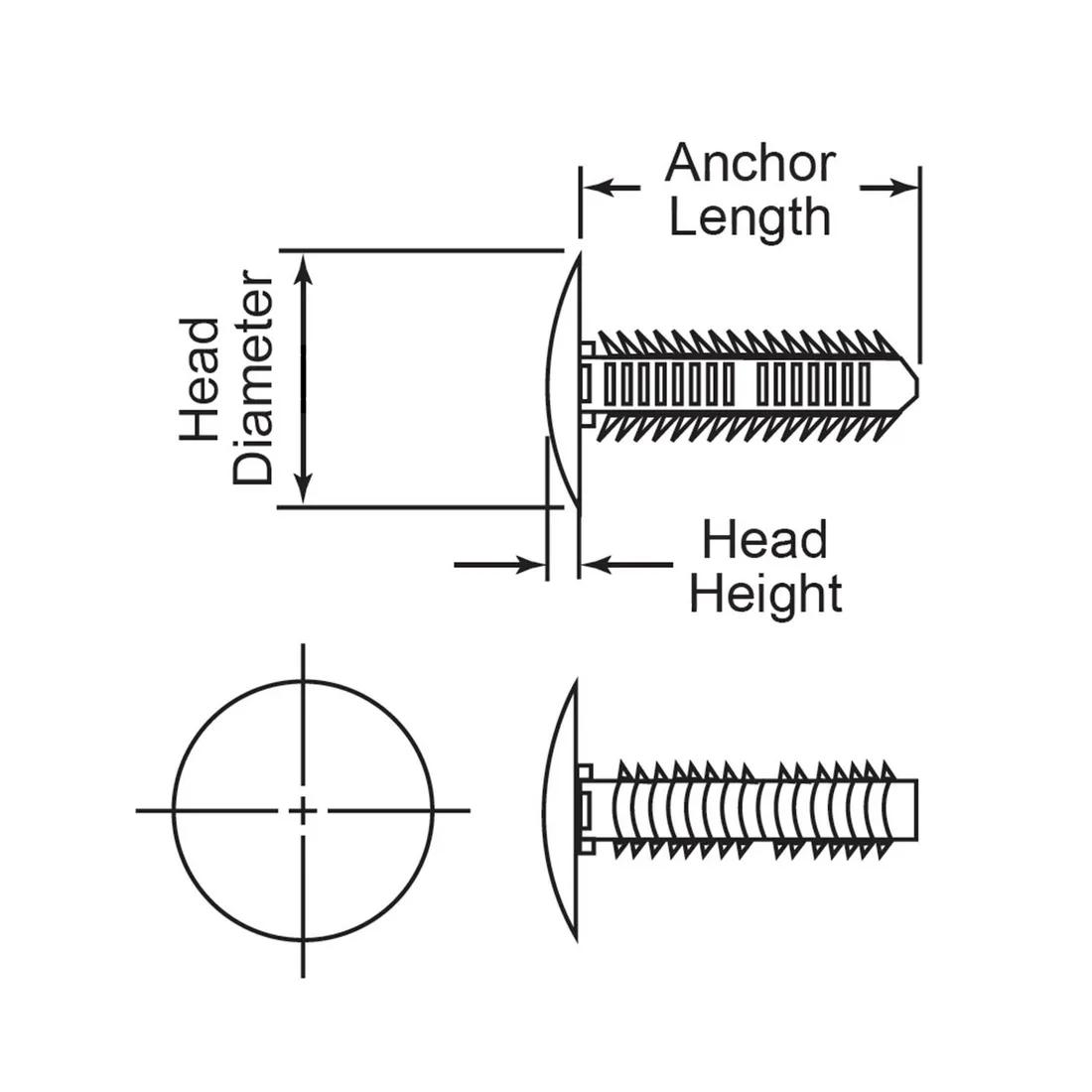

Item Code | Material Flammability Standard | Color | Material | Head Height | Overall Height | UL/CSA Description | Anchor Length | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Maximum Operating Temperature | Minimum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27XT1880750N | UL94 V-2 | Black | Nylon 6/6 | 0.078 in | 0.926 in | UL E70062 | 0.848 in | 0.750 in | 0.500 in | 0.062 in | - | - | |
XT2812000A | UL94 V-2 | Black | Nylon 6/6 | 0.100 in | 2.253 in | - | 2.153 | 2.000 in | 0.787 | 0.062 in | - | - | |
RBF-7.1-11.1-8 | UL94 V-2 | Black | Nylon 6/6 | 0.039 in | 0.476 in | - | 0.437 | 0.280 in | 0.315 | 0.080 in | - | - | |
XT3751250A | UL94 V-2 | Black | Nylon 6/6 | 0.100 in | 1.551 in | - | 1.451 | 1.250 in | 1.000 | 0.062 in | - | - | |
XT3750750A | UL94 V-2 | Black | Nylon 6/6 | 0.100 in | 1.043 in | - | 0.943 | 0.750 in | 1.000 | 0.062 in | - | - | |
XT3750625A | UL94 V-2 | Black | Nylon 6/6 | 0.100 in | 0.916 in | - | 0.816 | 0.625 in | 1.000 | 0.062 in | - | - | |
XT3751750A | UL94 V-2 | Black | Nylon 6/6 | 0.100 in | 2.059 in | - | 1.959 | 1.750 in | 1.000 | 0.062 in | - | - | |
XT3751500A | UL94 V-2 | Black | Nylon 6/6 | 0.100 in | 1.805 in | - | 1.705 | 1.500 in | 1.000 | 0.062 in | - | - | |
XT3750875A | UL94 V-2 | Black | Nylon 6/6 | 0.100 in | 1.170 in | - | 1.070 | 0.875 in | 1.000 | 0.062 in | - | - |
Per page:
1-10 of 100
1–5 of 100 variants
Per page:
27XT1880750N
Material Flammability Standard
UL94 V-2
Color
Black
Material
Nylon 6/6
Head Height
0.078 in
XT2812000A
Material Flammability Standard
UL94 V-2
Color
Black
Material
Nylon 6/6
Anchor Length
2.153
RBF-7.1-11.1-8
Material Flammability Standard
UL94 V-2
Color
Black
Material
Nylon 6/6
Anchor Length
0.437
XT3751250A
Material Flammability Standard
UL94 V-2
Color
Black
Material
Nylon 6/6
Anchor Length
1.451
Per page:
1–5 of 101
