SRSK4952 - Double Ended Fir Tree Rivet
Showing 1-3 of 3
Per page:1-3 of 3

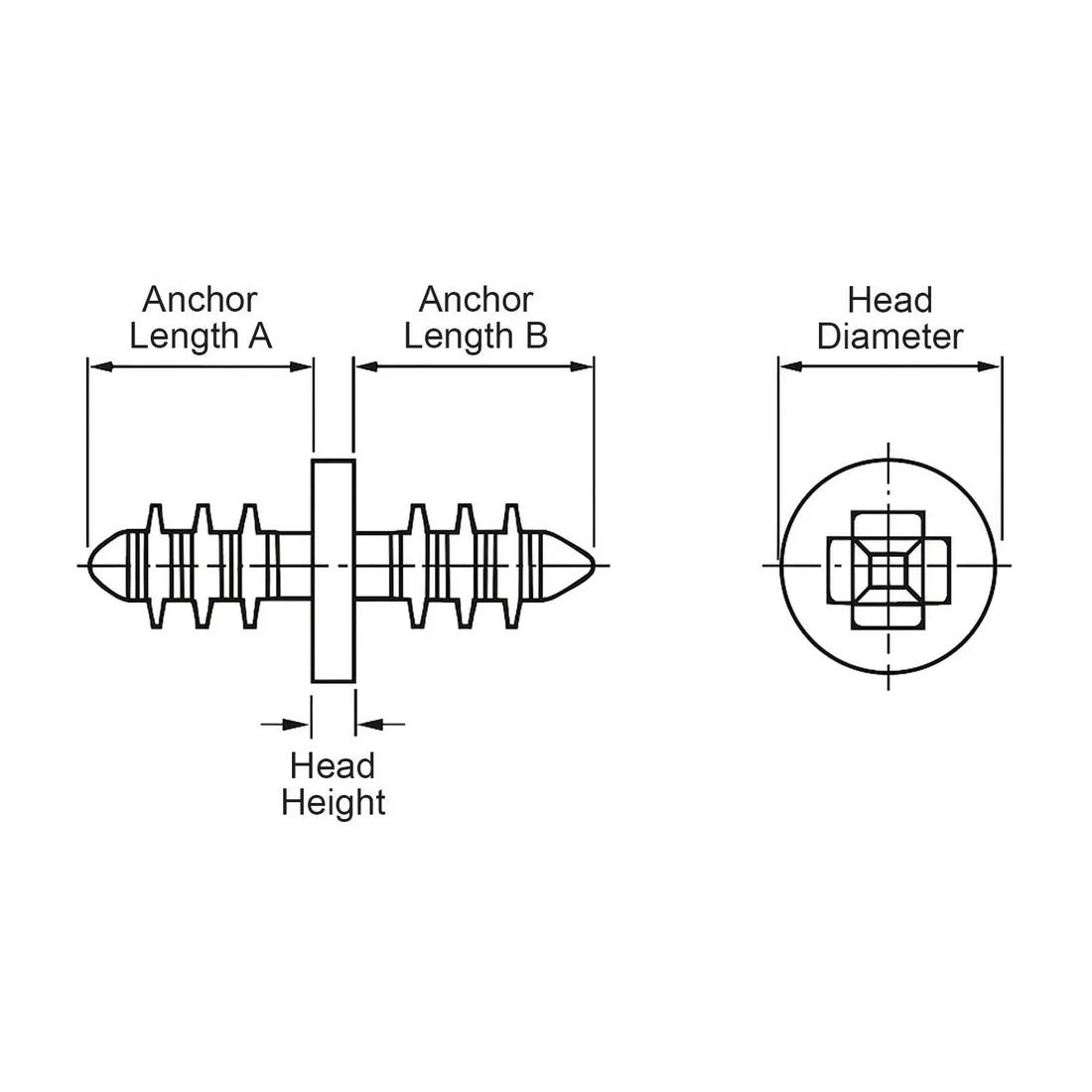

Item Code | Minimum Panel Thickness A | Material Flammability Standard | Color | Head Height | Minimum Operating Temperature | Material | Anchor Length A | Head Diameter | Anchor Length B | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
495219 | 3.0 mm | UL94 V-2 | Black | 1.0 mm | -40 °F | Nylon 6/6 | 17.5 mm | 19.0 mm | 17.5 mm | 8.0 mm | 3.0 mm | 8.0 mm | 185 °F | |
495218 | 2.6 mm | UL94 V-2 | Black | 1.8 mm | -40 °F | Nylon 6/6 | 7.8 mm | 7.5 mm | 7.8 mm | 6.3 mm | 2.6 mm | 6.3 mm | 185 °F | |
495220 | 3.2 mm | UL94 V-2 | Black | 1.1 mm | -40 °F | Nylon 6/6 | 11.6 mm | 12.7 | 21.8 mm | 19.0 mm | 3.6 mm | 9.5 mm | 185 °F |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
495219
Minimum Panel Thickness A
3.0 mm
Material Flammability Standard
UL94 V-2
Color
Black
Head Height
1.0 mm
495218
Minimum Panel Thickness A
2.6 mm
Material Flammability Standard
UL94 V-2
Color
Black
Head Height
1.8 mm
495220
Minimum Panel Thickness A
3.2 mm
Material Flammability Standard
UL94 V-2
Color
Black
Head Height
1.1 mm
