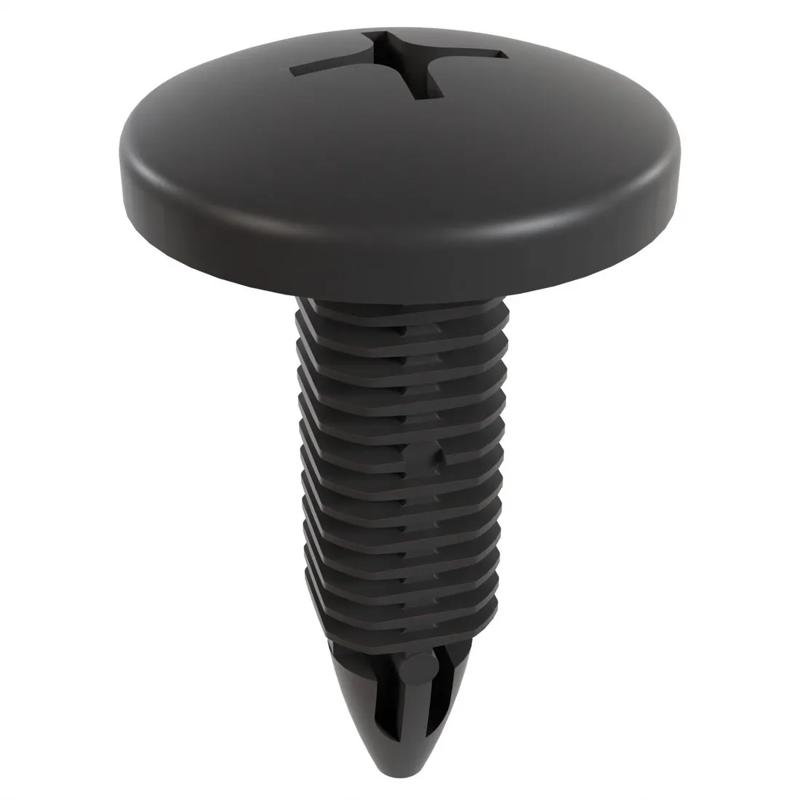

SRBPFR - Removable Fir-Tree Rivet
Showing 1-1 of 1
Per page:1-1 of 1

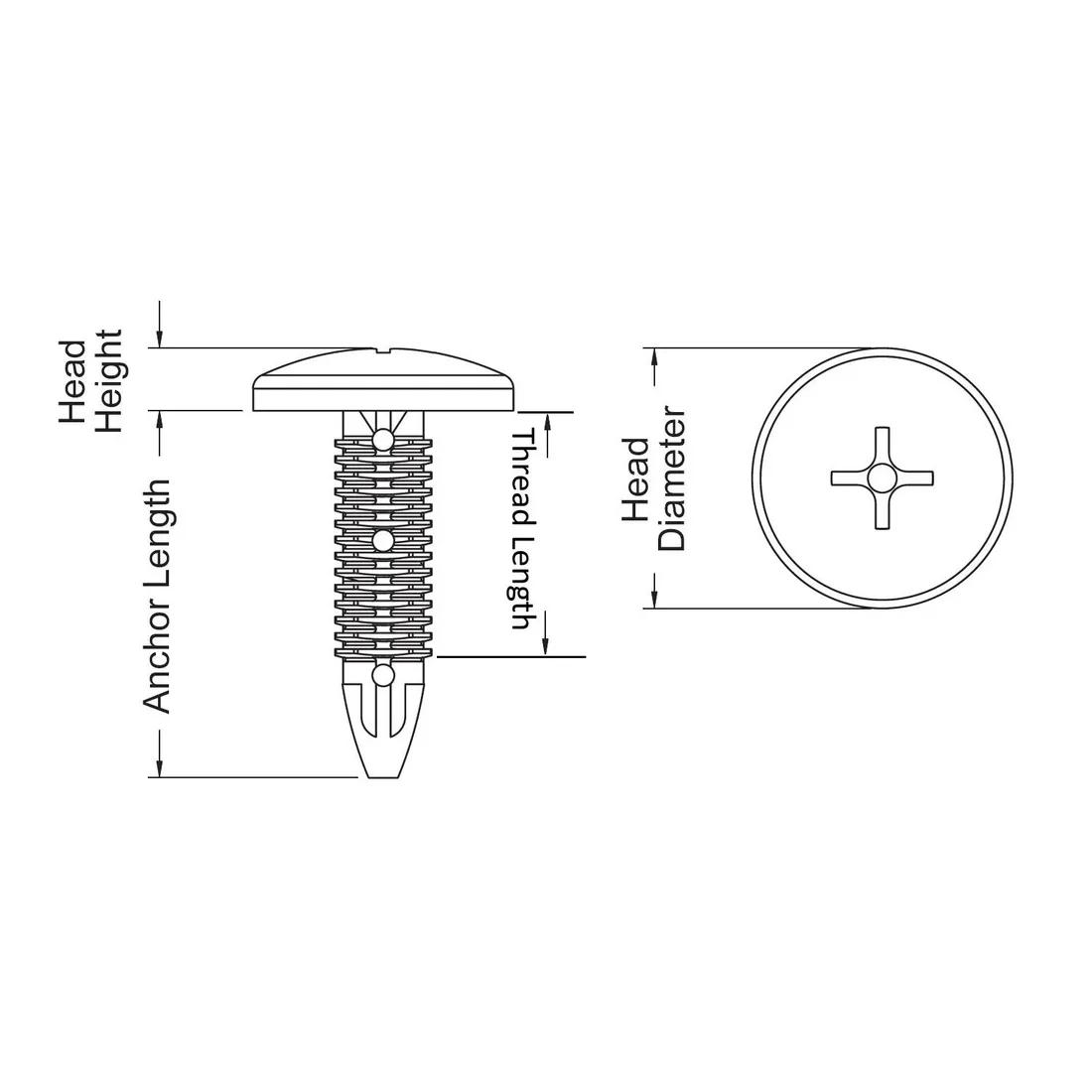

Item Code | Drive Type | Material Flammability Standard | Color | Hole Diameter | Head Diameter | Head Height | Hole Thread Size | Maximum Operating Temperature | Minimum Operating Temperature | Material | Head Shape | UL/CSA Description | Anchor Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BPFR-1 | Cross Recess Drive | UL94 V-0 | Black | 7.0 mm | 17.8 | 4.3 | 5/16 (M8) | 110 °C | -40 °C | Nylon 6/6 | Truss | UL E70062 | 25.1 | 6.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
BPFR-1
Drive Type
Cross Recess Drive
Material Flammability Standard
UL94 V-0
Color
Black
Hole Diameter
7.0 mm
