SR27XTS - Fir Tree Rivet
Showing 1-10 of 16
Per page:1-10 of 16

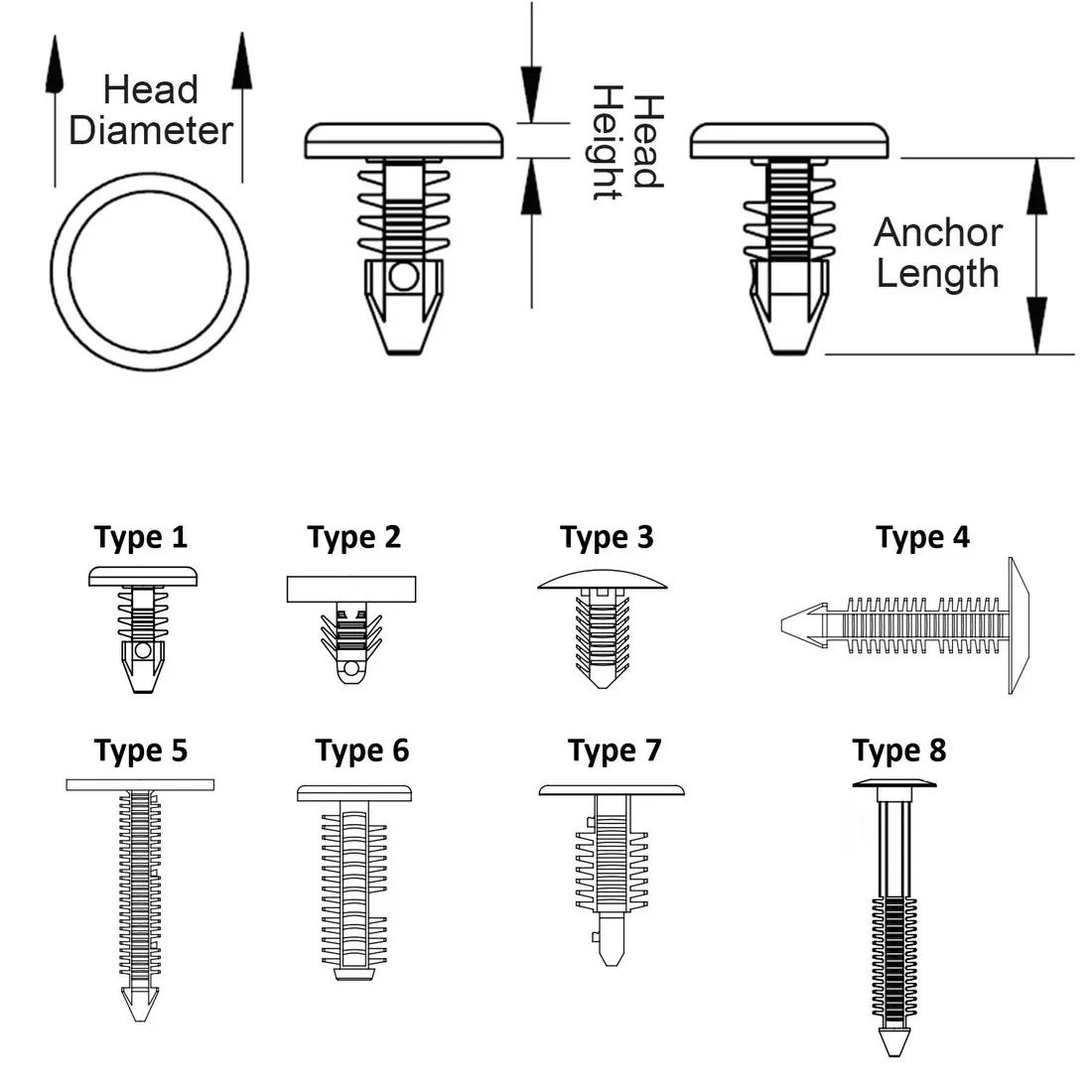

Item Code | Color | Maximum Hole Diameter | Material | Anchor Length | Head Height | Type | Material Flammability Standard | Minimum Hole Diameter | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | UL/CSA Description | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27XTS2500561N | Natural | 0.255 in | Nylon 6/6 | 0.542 in | 0.100 in | 3 | UL94 V-2 | 0.245 in | 0.400 in | 0.700 in | 0.070 in | - | - | - | - | |
27XTS2800710N | Natural | 0.250 in | Nylon 6/6 | 0.732 in | 0.040 in | 7 | UL94 V-2 | - | 0.500 in | 0.620 in | 0.200 in | - | - | - | - | |
27XTS1870442N | Natural | 0.192 in | Nylon 6/6 | 0.437 in | 0.075 in | 1 | UL94 V-2 | 0.182 in | 0.210 in | 0.437 in | 0.035 in | - | - | - | - | |
27XTS2500787N | Natural | 0.250 in | Nylon 6/6 | 0.787 in | 0.067 in | 6 | UL94 V-2 | - | 0.687 in | 0.500 in | 0.125 in | - | - | - | - | |
27XTS2501430N | Natural | 0.250 in | Nylon 6/6 | 1.530 in | 0.070 in | 5 | UL94 V-2 | - | 1.000 in | 0.975 in | 0.078 in | - | - | - | - | |
27XTS2501250N | Natural | - | Nylon 6/6 | 1.250 in | 0.110 in | 4 | UL94 V-2 | 0.250 in | 0.875 in | 0.750 in | 0.050 in | - | - | - | - | |
27XTS2501430 | Black | 0.250 in | Nylon 6/6 | 1.530 | 0.070 in | 5 | UL94 V-2 | - | 1.000 in | 0.975 | 0.078 in | 1.600 in | - | - | - | |
27XTS2500787 | Black | 0.250 in | Nylon 6/6 | 0.787 | 0.067 in | 6 | UL94 V-2 | - | 0.687 in | 0.500 | 0.125 in | 0.854 in | - | - | - | |
27XTS2800710 | Black | 0.250 in | Nylon 6/6 | 0.732 | 0.040 in | 7 | UL94 V-2 | - | 0.500 in | 0.620 | 0.200 in | 0.772 in | - | - | - |
Per page:
1-10 of 16
1–5 of 16 variants
Per page:
27XTS2500561N
Color
Natural
Maximum Hole Diameter
0.255 in
Material
Nylon 6/6
Anchor Length
0.542 in
27XTS2800710N
Material Flammability Standard
UL94 V-2
Color
Natural
Maximum Hole Diameter
0.250 in
Material
Nylon 6/6
27XTS1870442N
Color
Natural
Maximum Hole Diameter
0.192 in
Material
Nylon 6/6
Anchor Length
0.437 in
27XTS2500787N
Material Flammability Standard
UL94 V-2
Color
Natural
Maximum Hole Diameter
0.250 in
Material
Nylon 6/6
Per page:
1–5 of 17
