SR27QB/BR - Barbed Rivet
Showing 1-10 of 36
Per page:1-10 of 36

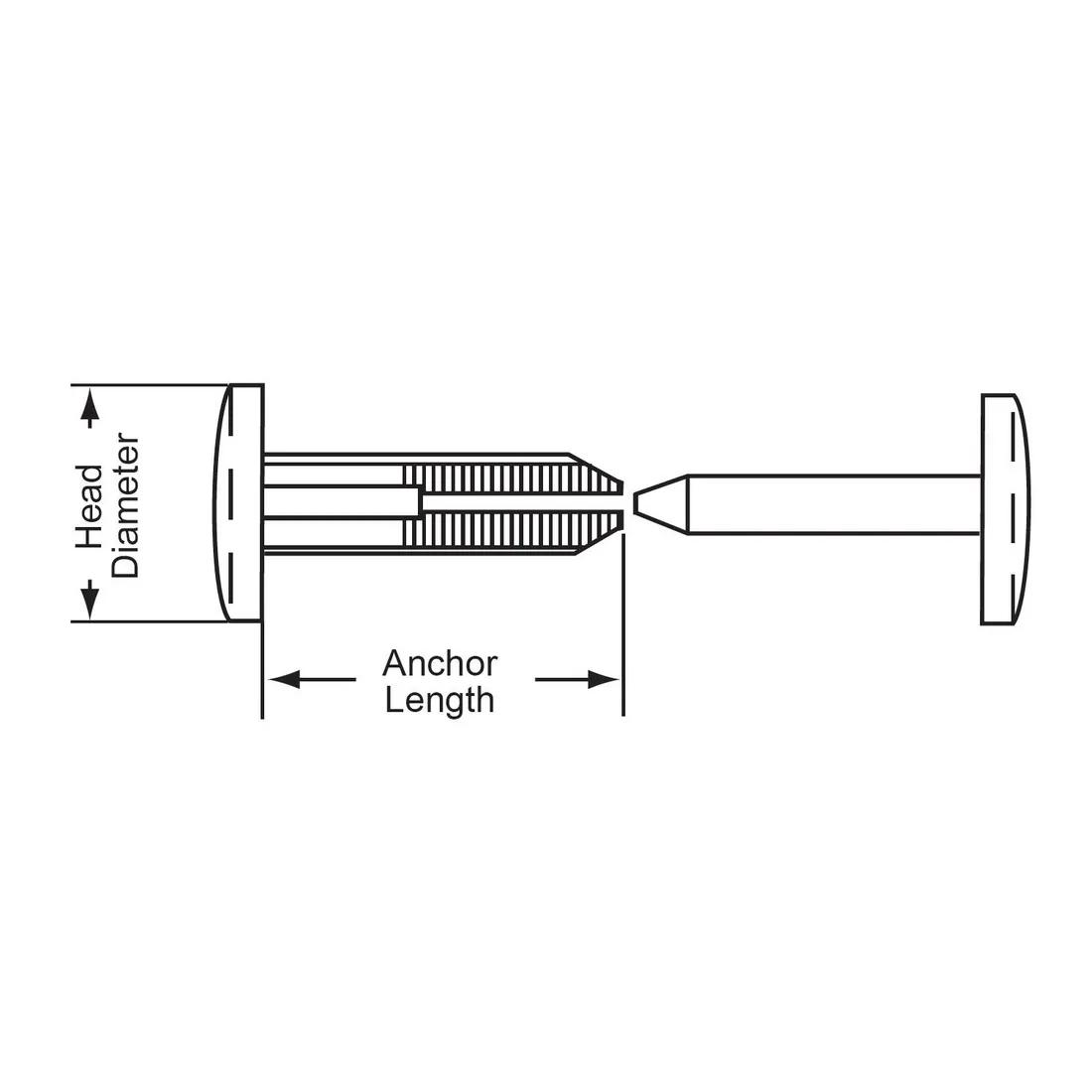

Item Code | Material Flammability Standard | Color | Hole Diameter | Head Height | Maximum Operating Temperature | Minimum Operating Temperature | Material | UL/CSA Description | Anchor Length | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BR1-226-01BK | UL94 V-2 | Black | 0.281 in | 0.093 in | 185 °F | -40 °F | Nylon 6/6 | UL E70062 | 5.7 | 7.5 mm | 19.1 | 6.0 mm | |
BR1-344-01 | UL94 V-2 | Natural | 0.281 in | 0.093 in | 185 °F | -40 °F | Nylon | UL E70062 | 8.7 | 12.8 mm | 19.1 | 8.8 mm | |
BR1-488-01BK | UL94 V-2 | Black | 0.281 in | 0.093 in | 185 °F | -40 °F | Nylon 6/6 | UL E70062 | 12.4 | 20.6 mm | 19.1 | 12.7 mm | |
BR2-226-01 | UL94 V-2 | Natural | 0.281 in | 0.062 in | 185 °F | -40 °F | Nylon | UL E70062 | 5.7 | 7.5 mm | 10.2 | 6.0 mm | |
BR1-344-01BK | UL94 V-2 | Black | 0.281 in | 0.093 in | 185 °F | -40 °F | Nylon 6/6 | UL E70062 | 8.7 | 12.8 mm | 19.1 | 8.8 mm | |
BR1-226-01 | UL94 V-2 | Natural | 0.281 in | 0.093 in | 185 °F | -40 °F | Nylon | UL E70062 | 5.7 | 7.5 mm | 19.1 | 6.0 mm | |
BR1-768-01BK | UL94 V-2 | Black | 0.281 in | 0.093 in | 185 °F | -40 °F | Nylon 6/6 | UL E70062 | 19.5 | 34.9 mm | 19.1 | 19.8 mm | |
BR1-488-01 | UL94 V-2 | Natural | 0.281 in | 0.093 in | 185 °F | -40 °F | Nylon | UL E70062 | 12.4 | 20.6 mm | 19.1 | 12.7 mm | |
BR1-768-01 | UL94 V-2 | Natural | 0.281 in | 0.093 in | 185 °F | -40 °F | Nylon | UL E70062 | 19.5 | 34.9 mm | 19.1 | 19.8 mm |
Per page:
1-10 of 36
1–5 of 36 variants
Per page:
BR1-226-01BK
Material Flammability Standard
UL94 V-2
Color
Black
Hole Diameter
0.281 in
Head Height
0.093 in
BR1-344-01
Material Flammability Standard
UL94 V-2
Color
Natural
Hole Diameter
0.281 in
Head Height
0.093 in
BR1-488-01BK
Material Flammability Standard
UL94 V-2
Color
Black
Hole Diameter
0.281 in
Head Height
0.093 in
BR2-226-01
Material Flammability Standard
UL94 V-2
Color
Natural
Hole Diameter
0.281 in
Head Height
0.062 in
Per page:
1–5 of 37
