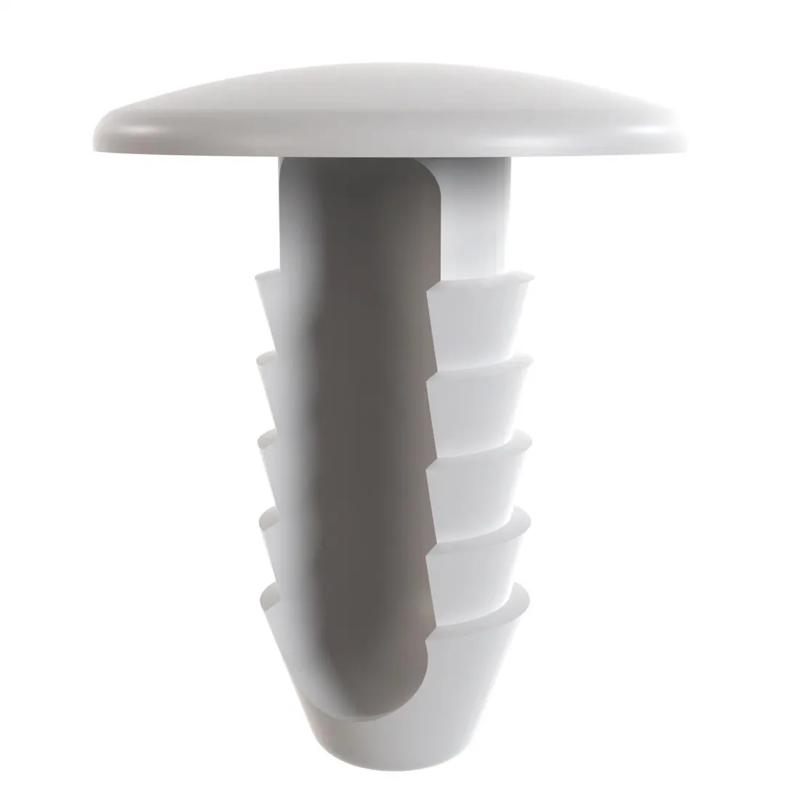

SR092 - Fir Tree Rivet
Showing 1-4 of 4
Per page:1-4 of 4

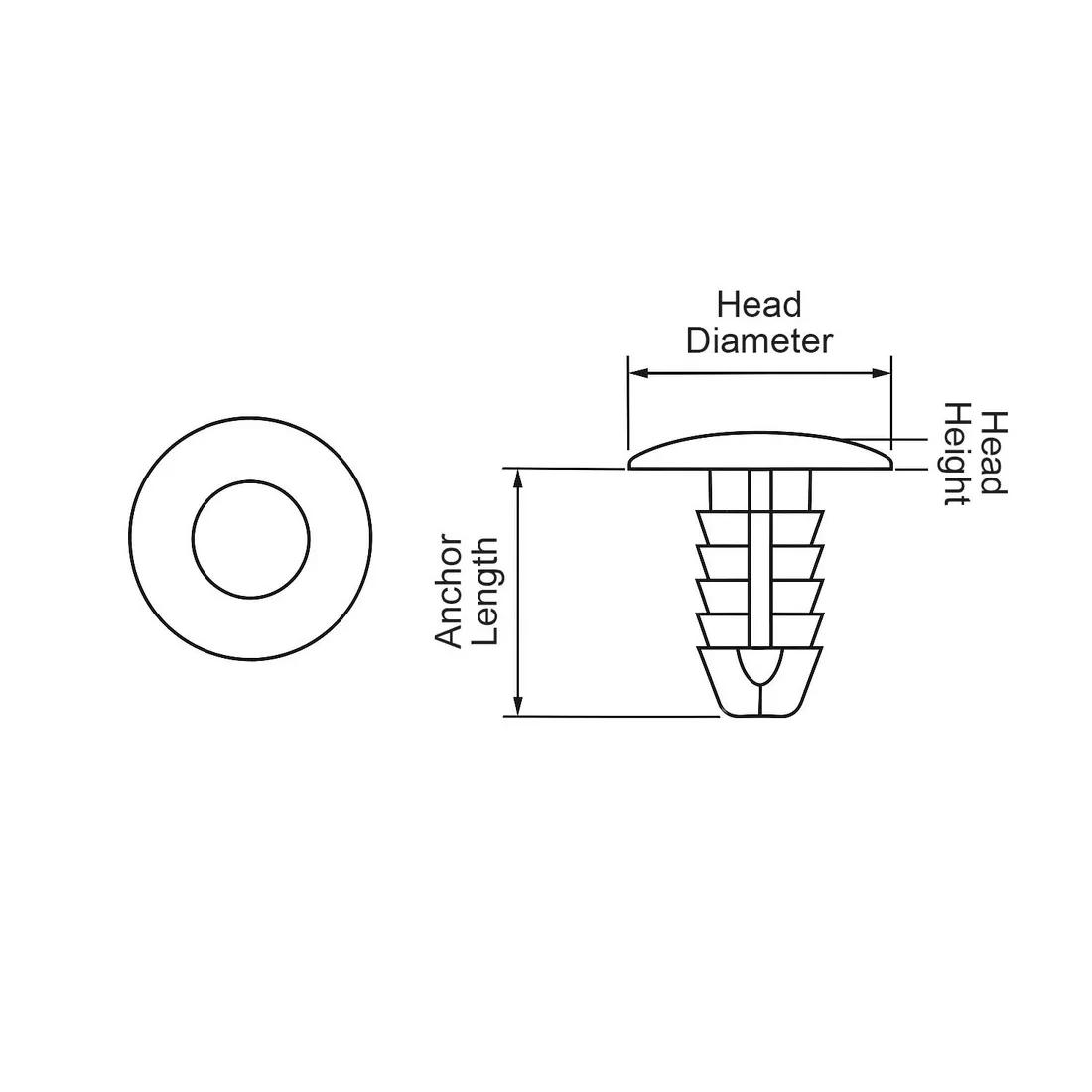

Item Code | Material Flammability Standard | Color | Material | Head Height | Overall Height | UL/CSA Description | Anchor Length | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
092000200002 | UL94 V-2 | Natural | Nylon 6/6 | 0.079 in | 0.827 in | UL E70062 | 0.748 | 0.591 in | 0.630 | 0.118 in | |
092000259902 | UL94 V-2 | Black | Nylon 6/6 | 0.079 in | 0.827 in | UL E70062 | 0.748 | 0.591 in | 0.630 | 0.118 in | |
092000459902 | UL94 V-2 | Black | Nylon 6/6 | 0.079 in | 0.985 in | UL E70062 | 0.906 | 0.748 in | 0.709 | 0.118 in | |
092000400002 | UL94 V-2 | Natural | Nylon 6/6 | 0.079 in | 0.985 in | UL E70062 | 0.906 | 0.748 in | 0.709 | 0.118 in |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
092000200002
Material Flammability Standard
UL94 V-2
Color
Natural
Material
Nylon 6/6
Head Height
0.079 in
092000259902
Material Flammability Standard
UL94 V-2
Color
Black
Material
Nylon 6/6
Head Height
0.079 in
092000459902
Material Flammability Standard
UL94 V-2
Color
Black
Material
Nylon 6/6
Head Height
0.079 in
092000400002
Material Flammability Standard
UL94 V-2
Color
Natural
Material
Nylon 6/6
Head Height
0.079 in
