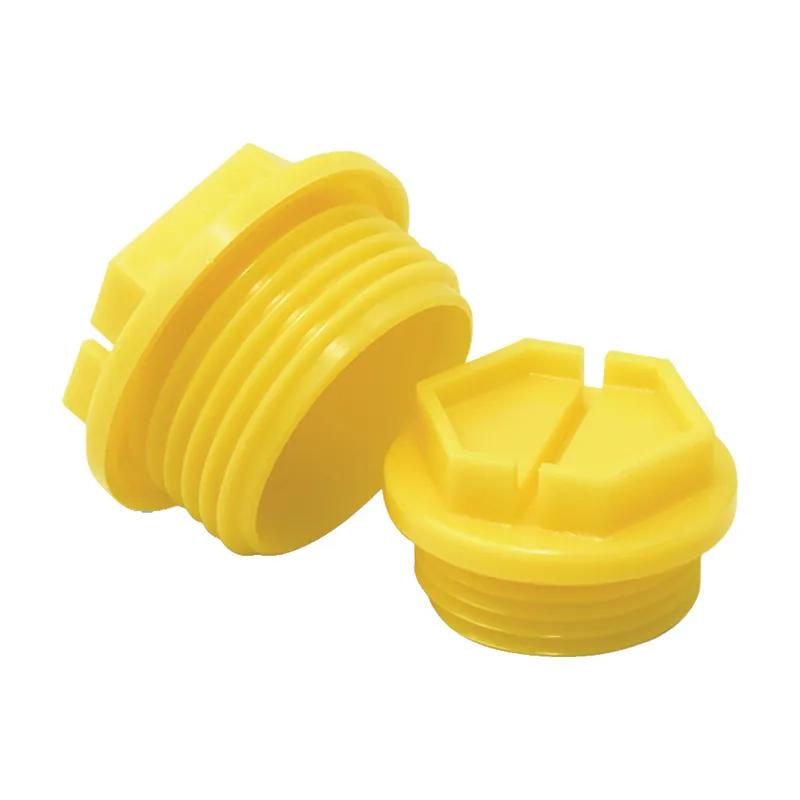

SRTSSP - Sealing Threaded Plugs For UNF Threads

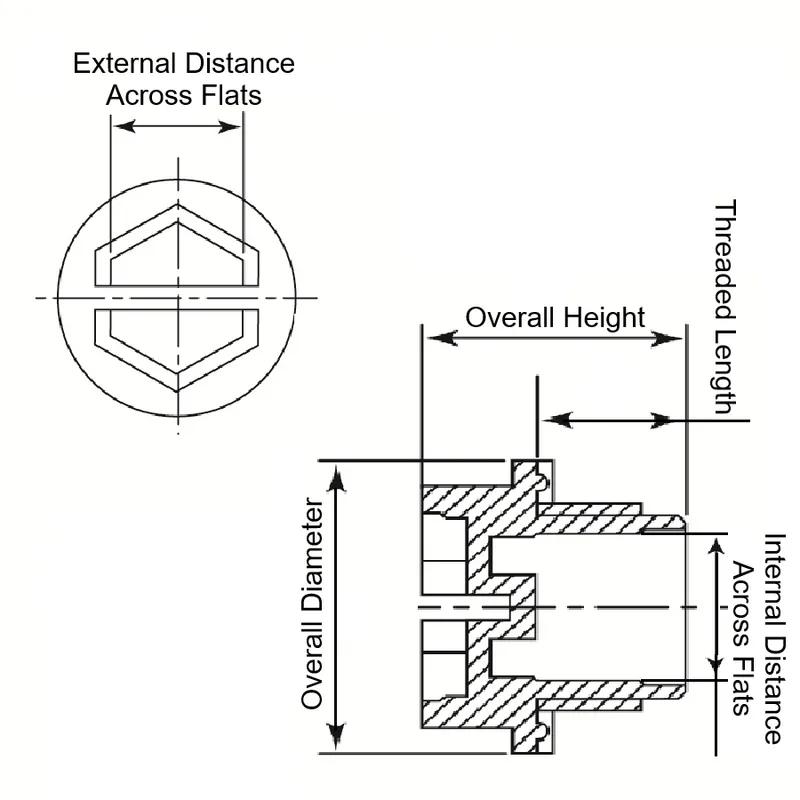

Item Code | Internal Distance Across Flats | Threaded Length | Overall Height | Maximum Operating Temperature | Color | External Distance Across Flats | Minimum Operating Temperature | Thread Size | Material | Overall Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
TSSP1-1/16-12A | 0.827 in | 0.472 in | 0.768 in | 160 °C | Yellow | 0.945 in | -40 °C | 1-1/16-12 | Nylon | 1.299 in | |
TSSP1-7/8-12A | 1.299 in | 0.591 in | 0.886 in | 160 °C | Yellow | 1.417 in | -40 °C | 1-7/8-12 | Nylon | 2.126 in | |
TSSP7/8-14A | 0.709 in | 0.472 in | 0.768 in | 160 °C | Yellow | 0.827 in | -40 °C | 7/8-14 | Nylon | 1.122 in | |
TSSP1/2-20A | 0.394 in | 0.394 in | 0.689 in | 160 °C | Yellow | 0.512 in | -40 °C | 1/2-20 | Nylon | 0.748 in | |
TSSP5/8-18A | 0.472 in | 0.394 in | 0.689 in | 160 °C | Yellow | 0.591 in | -40 °C | 5/8-18 | Nylon | 0.866 in | |
TSSP1-5/16-12A | 1.063 in | 0.591 in | 0.886 in | 160 °C | Yellow | 1.181 in | -40 °C | 1-5/16-12 | Nylon | 1.575 in | |
TSSP1-3/16-12A | 1.063 in | 0.591 in | 0.886 in | 160 °C | Yellow | 1.181 in | -40 °C | 1-3/16-12 | Nylon | 1.437 in | |
TSSP3/4-16A | 0.630 in | 0.394 in | 0.689 in | 160 °C | Yellow | 0.748 in | -40 °C | 3/4-16 | Nylon | 1.024 in | |
TSSP3/8-24A | 0.236 in | 0.394 in | 0.689 in | 160 °C | Yellow | 0.354 in | -40 °C | 3/8-24 | Nylon | 0.630 in |
TSSP1-1/16-12A
Internal Distance Across Flats
0.827 in
Threaded Length
0.472 in
Overall Height
0.768 in
Maximum Operating Temperature
160 °C
TSSP1-7/8-12A
Internal Distance Across Flats
1.299 in
Threaded Length
0.591 in
Overall Height
0.886 in
Maximum Operating Temperature
160 °C
TSSP7/8-14A
Internal Distance Across Flats
0.709 in
Threaded Length
0.472 in
Overall Height
0.768 in
Maximum Operating Temperature
160 °C
TSSP1/2-20A
Internal Distance Across Flats
0.394 in
Threaded Length
0.394 in
Overall Height
0.689 in
Maximum Operating Temperature
160 °C
