SRTSSP - Sealing Threaded Plugs For Metric/BSP Threads
Showing 1-10 of 35
Per page:1-10 of 35

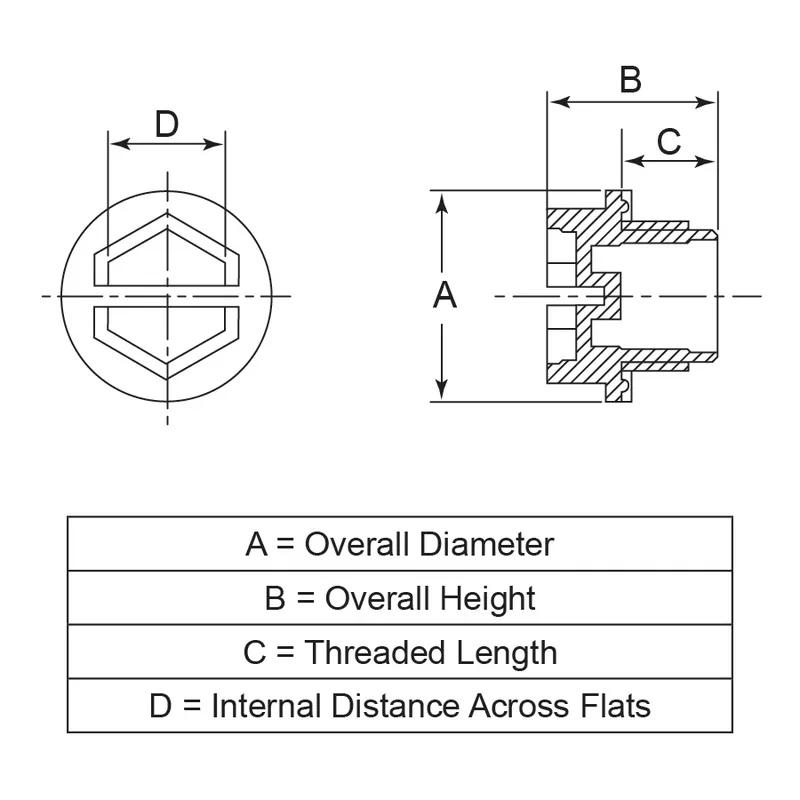

Item Code | Length Under Head | Internal Distance Across Flats | Threaded Length | Fitting Style | Maximum Operating Temperature | Color | External Distance Across Flats | Minimum Operating Temperature | Thread Size | Material | Overall Diameter | Overall Height | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
466977A | 12.0 mm | 21.0 mm | 12.0 mm | Threaded | 160 °C | Yellow | 24.0 mm | -40 °C | M27 x 1.5 | Nylon | 33.0 mm | 20.5 mm | 1.5 mm | |
462842A | 10.0 mm | 16.0 mm | 10.0 mm | Threaded | 160 °C | Yellow | 19.0 mm | -40 °C | M20 x 1.5 | Nylon | 26.0 mm | 17.5 mm | 1.5 mm | |
462837A | 9.0 mm | 6.0 mm | 9.0 mm | Threaded | 160 °C | Yellow | 9.0 mm | -40 °C | M10 x 1.0 | Nylon | 14.5 mm | 16.5 mm | 1.0 mm | |
462838A | 9.0 mm | 7.0 mm | 9.0 mm | Threaded | 160 °C | Yellow | 10.0 mm | -40 °C | M12 x 1.5 | Nylon | 17.0 mm | 16.5 mm | 1.5 mm | |
TSSPM10X1.5A | 9.0 mm | 6.0 mm | 9.0 mm | Threaded | 160 °C | Yellow | 9.0 mm | -40 °C | M10 x 1.5 | Nylon | 14.5 mm | 16.5 mm | 1.5 mm | |
462840A | 9.3 mm | 12.0 mm | 9.3 mm | Threaded | 160 °C | Yellow | 15.0 mm | -40 °C | M16 x 1.5 | Nylon | 22.3 mm | 17.5 mm | 1.5 mm | |
TSSPM28X1.5A | 12.0 mm | 21.0 mm | 12.0 mm | Threaded | 160 °C | Yellow | 24.0 mm | -40 °C | M28 x 1.5 | Nylon | 34.0 mm | 20.5 mm | 1.5 mm | |
TSSPM30X2A | 13.5 mm | 21.0 mm | 13.5 mm | Threaded | 160 °C | Yellow | 24.0 mm | -40 °C | M30 x 2.0 | Nylon | 38.0 mm | 22.0 mm | 2.0 mm | |
462836A | 8.0 mm | 4.0 mm | 8.0 mm | Threaded | 160 °C | Yellow | 7.0 mm | -40 °C | M8 x 1.0 | Nylon | 12.5 mm | 15.5 mm | 1.0 mm |
Per page:
1-10 of 35
1–5 of 35 variants
Per page:
466977A
Length Under Head
12.0 mm
Internal Distance Across Flats
21.0 mm
Threaded Length
12.0 mm
Fitting Style
Threaded
462842A
Length Under Head
10.0 mm
Internal Distance Across Flats
16.0 mm
Threaded Length
10.0 mm
Fitting Style
Threaded
462837A
Length Under Head
9.0 mm
Internal Distance Across Flats
6.0 mm
Threaded Length
9.0 mm
Fitting Style
Threaded
462838A
Length Under Head
9.0 mm
Internal Distance Across Flats
7.0 mm
Threaded Length
9.0 mm
Fitting Style
Threaded
