SRTPUNF - UNF/JIC Knurled Head Threaded Plugs
Showing 1-10 of 22
Per page:1-10 of 22

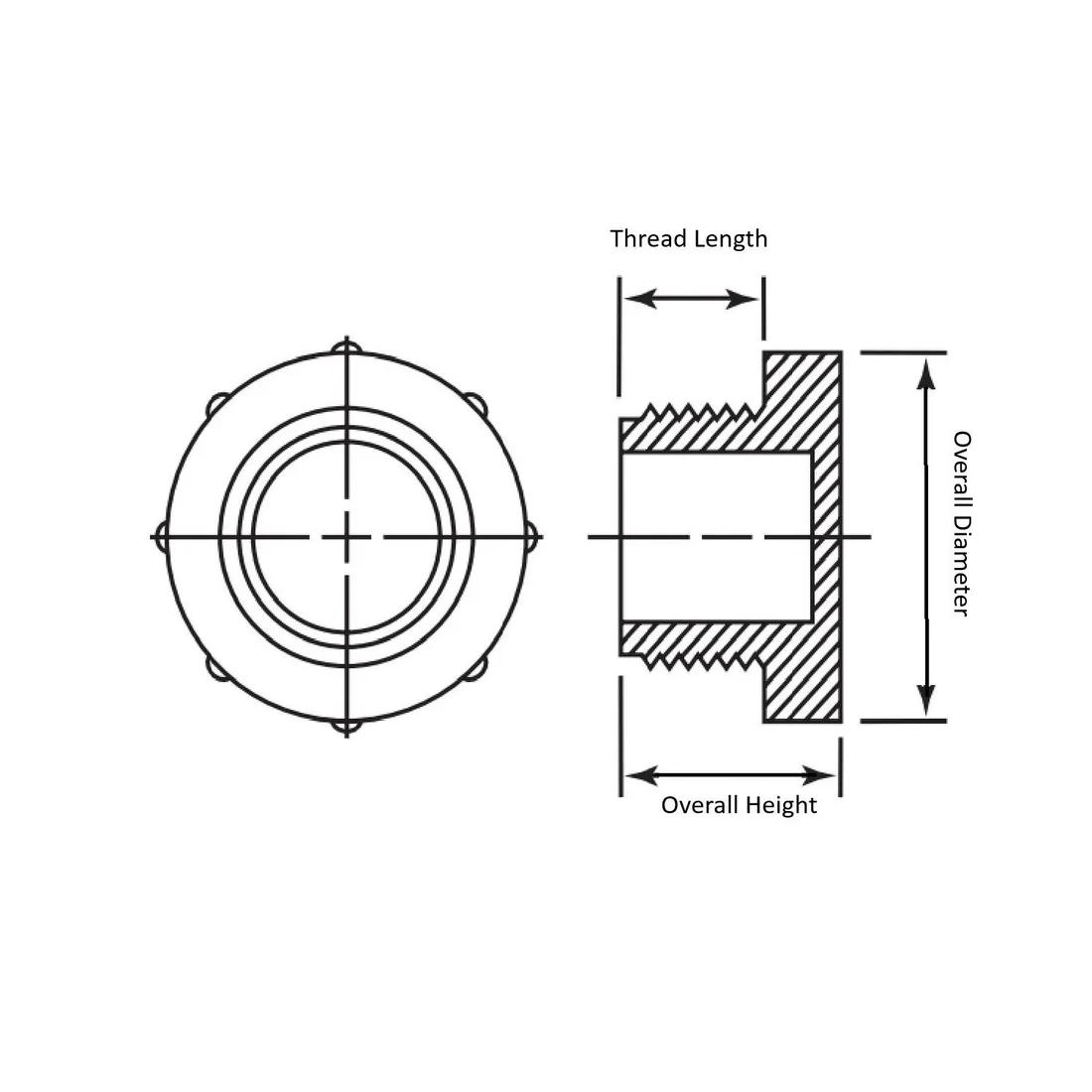

Item Code | Color | Threaded Length | Fitting Style | Thread Length | Thread Size | Material | Overall Diameter | Overall Height | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
10763A | Red | 0.433 in | Threaded | 0.433 in | 7/16-20 | LDPE | 0.685 in | 0.634 | 20 TPI | |
10696A | Red | 0.413 in | Threaded | 0.413 in | 1/2-20 | LDPE | 0.728 in | 0.602 | 20 TPI | |
10498A | Red | 0.291 in | Threaded | 0.291 in | 5/16-18 | LDPE | 0.571 in | 0.472 in | 18 TPI | |
10326A | Red | 0.535 in | Threaded | 0.535 in | 7/8-14 | LDPE | 1.134 in | 0.728 in | 14 TPI | |
10668A | Red | 0.421 in | Threaded | 0.421 in | 9/16-18 | LDPE | 0.890 in | 0.606 | 18 TPI | |
10671A | Red | 0.433 in | Threaded | 0.433 in | 1-5/16-12 | LDPE | 1.547 in | 0.642 | 12 TPI | |
10692A | Red | 0.374 in | Threaded | 0.374 in | 3/8-24 | LDPE | 0.539 in | 0.551 | 24 TPI | |
10940A | Red | 0.394 in | Threaded | 0.394 in | 5/8-18 | LDPE | 0.827 in | 0.583 | 18 TPI | |
12359A | Red | 0.539 in | Threaded | 0.539 in | 1-1/16-14 | LDPE | 1.311 in | 0.720 | 14 TPI |
Per page:
1-10 of 22
1–5 of 22 variants
Per page:
10763A
Color
Red
Threaded Length
0.433 in
Fitting Style
Threaded
Thread Length
0.433 in
10696A
Color
Red
Threaded Length
0.413 in
Fitting Style
Threaded
Thread Length
0.413 in
10498A
Color
Red
Threaded Length
0.291 in
Fitting Style
Threaded
Thread Length
0.291 in
10326A
Color
Red
Threaded Length
0.535 in
Fitting Style
Threaded
Thread Length
0.535 in
Per page:
1–5 of 23
