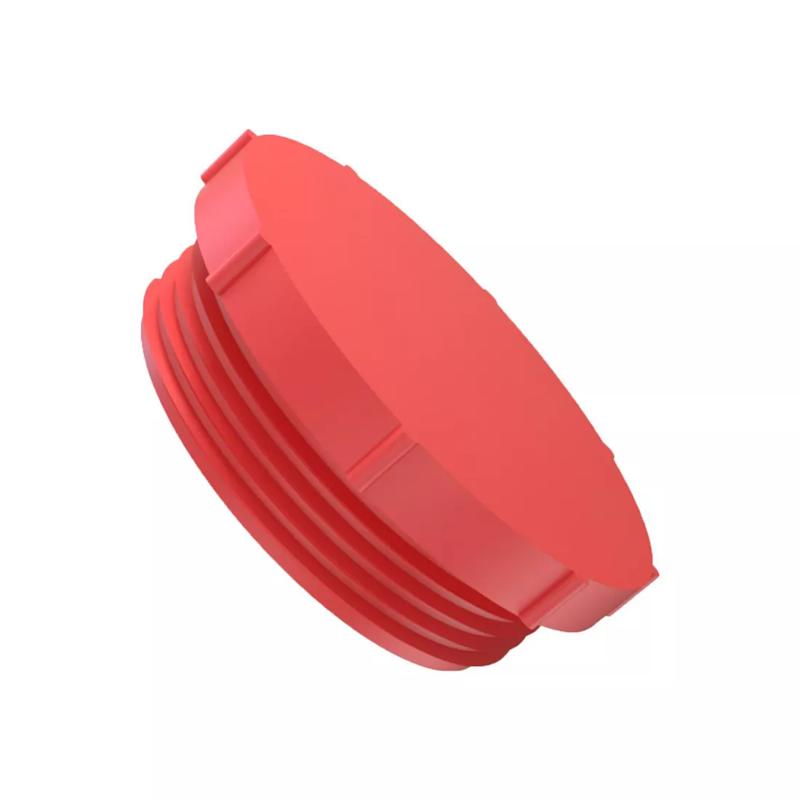

SRTP Metric - Metric Threaded Plugs
Showing 1-10 of 21
Per page:1-10 of 21

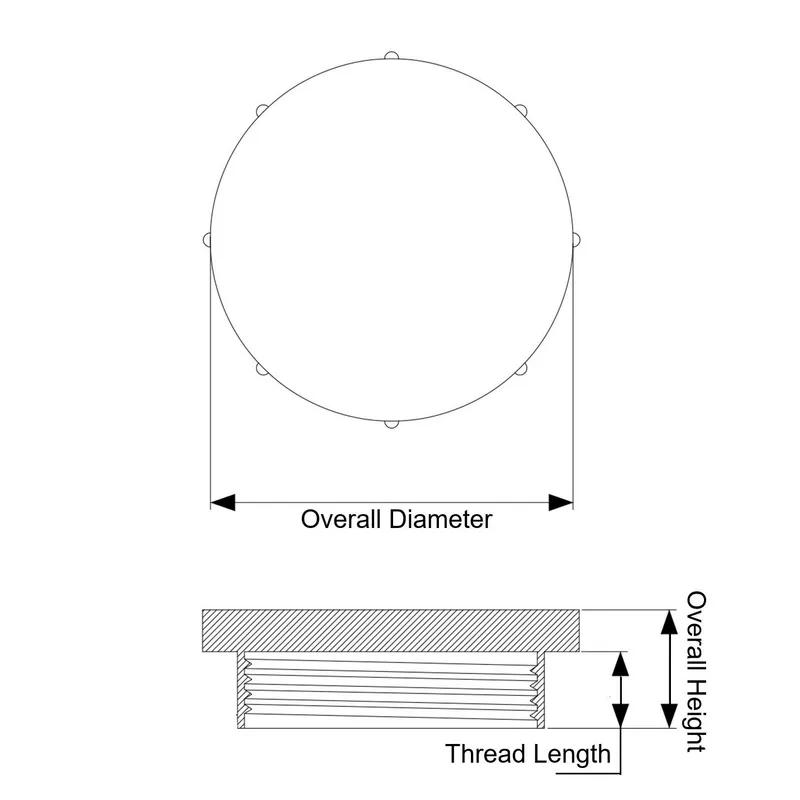

Item Code | Color | Thread Length | Thread Size | Material | Overall Diameter | Overall Height | Pitch/TPI | Fitting Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
20598099 | Red | 5.5 mm | M16 x 1;5 | LDPE | 20.7 mm | 12.0 mm | 1.5 mm | - | |
20598129 | Red | 14.0 mm | M20 x 2;5 | LDPE | 26.3 mm | 18.2 mm | 2.5 mm | - | |
20598068 | Red | 5.5 mm | 3/8 in | LDPE | 20.7 mm | 12.0 mm | - | - | |
20598051 | Red | 6.5 mm | 1/4 in | LDPE | 16.2 mm | 12.5 mm | - | - | |
20598075 | Red | 10.4 mm | M10 | LDPE | 15.3 mm | 14.6 mm | - | - | |
20598112 | Red | 14.0 mm | M20 x 2;0 | LDPE | 26.3 mm | 18.2 mm | 2.0 mm | - | |
20598082 | Red | 9.5 mm | M14 x 2;0 | LDPE | 18.5 mm | 17.2 mm | 2.0 mm | - | |
20598105 | Red | 13.7 mm | M18 x 2;5 | LDPE | 24.4 mm | 18.3 mm | 2.5 mm | - | |
10128A | Red | 13.7 mm | M22 x 1.5 | LDPE | 28.2 mm | 18.3 mm | 1.5 mm | Threaded |
Per page:
1-10 of 21
1–5 of 21 variants
Per page:
20598099
Color
Red
Thread Length
5.5 mm
Thread Size
M16 x 1;5
Material
LDPE
20598129
Color
Red
Thread Length
14.0 mm
Thread Size
M20 x 2;5
Material
LDPE
20598068
Color
Red
Thread Length
5.5 mm
Overall Height
12.0 mm
Thread Size
3/8 in
20598051
Color
Red
Thread Length
6.5 mm
Overall Height
12.5 mm
Thread Size
1/4 in
Per page:
1–5 of 22
