SRTF - Threaded Plugs for Flat Faced O-Ring Hydraulic Fittings
Showing 1-6 of 6
Per page:1-6 of 6

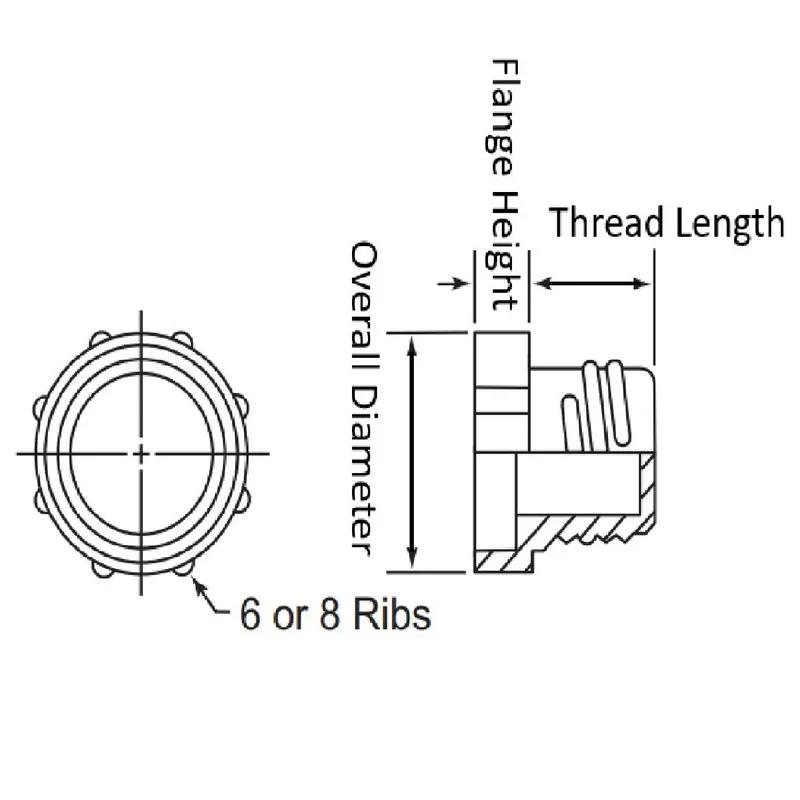

Item Code | Threaded Length | Fitting Style | Thread Length | Flange Height | Tube Size | Color | Thread Size | Material | Overall Diameter | Overall Height | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TF30A | 0.470 in | Threaded | 0.470 in | 0.250 in | 1/2 in | Red | 13/16-16 | PE | 0.940 in | 0.720 in | 16 TPI | |
TF10A | 0.380 in | Threaded | 0.380 in | 0.250 in | 1/4 in | Red | 9/16-18 | PE | 0.690 in | 0.630 in | 18 TPI | |
TF20A | 0.410 in | Threaded | 0.410 in | 0.250 in | 3/8 in | Red | 11/16-16 | PE | 0.870 in | 0.660 in | 16 TPI | |
TF50A | 0.610 in | Threaded | 0.610 in | 0.250 in | 3/4 in | Red | 1-3/16-12 | PE | 1.320 in | 0.860 in | 12 TPI | |
TF60A | 0.690 in | Threaded | 0.690 in | 0.250 in | 1.000 in | Red | 1-7/16-12 | PE | 1.630 in | 0.940 in | 12 TPI | |
TF40A | 0.570 in | Threaded | 0.570 in | 0.250 in | 5/8 in | Red | #1-14 | PE | 1.160 in | 0.820 in | 14 TPI |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
TF30A
Threaded Length
0.470 in
Fitting Style
Threaded
Thread Length
0.470 in
Flange Height
0.250 in
TF10A
Threaded Length
0.380 in
Fitting Style
Threaded
Thread Length
0.380 in
Flange Height
0.250 in
TF20A
Threaded Length
0.410 in
Fitting Style
Threaded
Thread Length
0.410 in
Flange Height
0.250 in
TF50A
Threaded Length
0.610 in
Fitting Style
Threaded
Thread Length
0.610 in
Flange Height
0.250 in
Per page:
1–5 of 7
