SRSR1005 - Slottex Plug
Showing 1-10 of 18
Per page:1-10 of 18

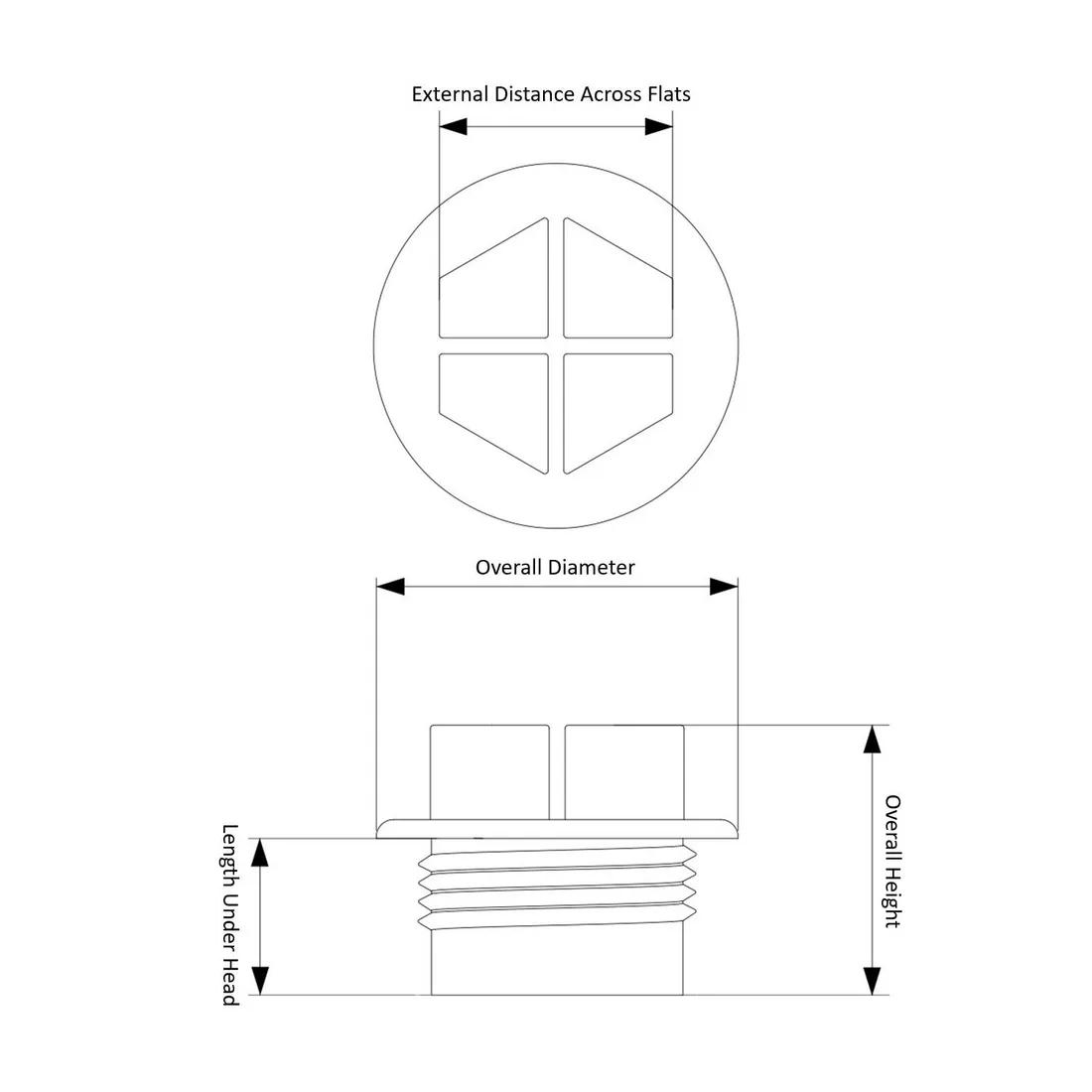

Item Code | Length Under Head | Sealing | Color | External Distance Across Flats | Head Type | Thread Size | Material | Overall Diameter | Overall Height | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
20597894 | 15.0 mm | N | Yellow | 24.0 mm | Slottex Head | 1-1/4-12 in | HDPE | 50.0 mm | 23.6 mm | 12 TPI | |
20597856 | 12.5 mm | N | Yellow | 13.0 mm | Slottex Head | 3/8-20 in | HDPE | 22.0 mm | 20.9 mm | 20 TPI | |
20597917 | 15.0 mm | N | Yellow | 36.0 mm | Slottex Head | #2-12 in | HDPE | 68.0 mm | 25.0 mm | 12 TPI | |
20597870 | 13.5 mm | N | Yellow | 19.0 mm | Slottex Head | 3/4-15 in | HDPE | 32.0 mm | 21.9 mm | 15 TPI | |
20597849 | 12.5 mm | N | Yellow | 10.0 mm | Slottex Head | 1/4-20 in | HDPE | 19.0 mm | 19.7 mm | 20 TPI | |
20597832 | 10.0 mm | N | Yellow | 7.0 mm | Slottex Head | 1/8-29 in | HDPE | 16.0 mm | 17.2 mm | 29 TPI | |
20597863 | 13.5 mm | N | Yellow | 15.0 mm | Slottex Head | 1/2-15 in | HDPE | 27.0 mm | 21.9 mm | 15 TPI | |
20597887 | 15.0 mm | N | Yellow | 24.0 mm | Slottex Head | #1-12 in | HDPE | 40.0 mm | 23.6 mm | 12 TPI | |
20597924 | 10.0 mm | N | Yellow | 6.0 mm | Slottex Head | M8 x 2;0 | HDPE | 12.5 mm | 17.0 mm | 2.0 mm |
Per page:
1-10 of 18
1–5 of 18 variants
Per page:
20597894
Length Under Head
15.0 mm
Sealing
N
Color
Yellow
External Distance Across Flats
24.0 mm
20597856
Length Under Head
12.5 mm
Sealing
N
Color
Yellow
External Distance Across Flats
13.0 mm
20597917
Length Under Head
15.0 mm
Sealing
N
Color
Yellow
External Distance Across Flats
36.0 mm
20597870
Length Under Head
13.5 mm
Sealing
N
Color
Yellow
External Distance Across Flats
19.0 mm
Per page:
1–5 of 19
