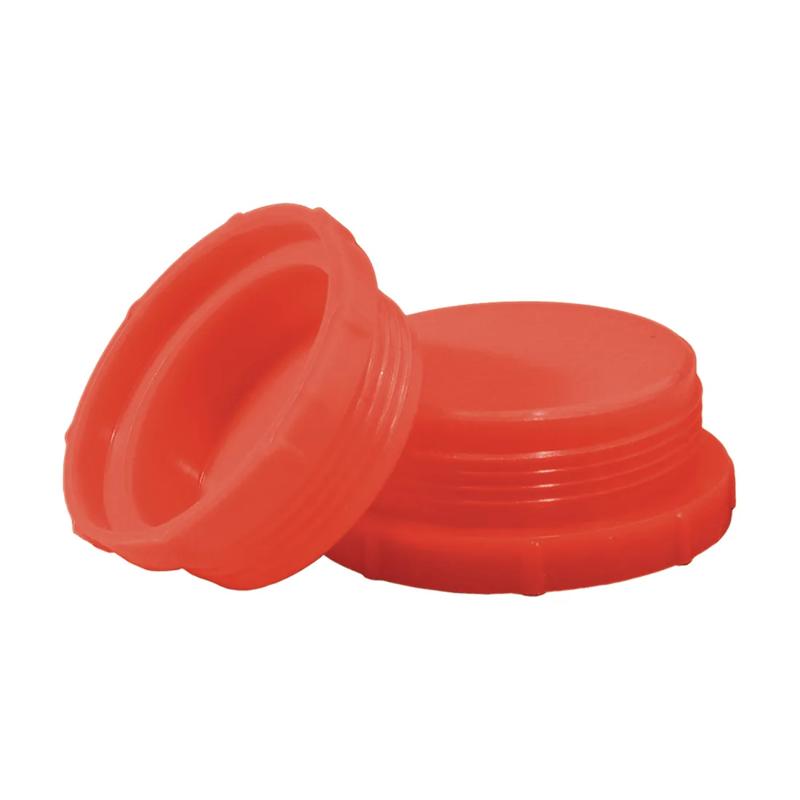

SRDP-UNJ/UNJS Threaded Plugs
Showing 1-10 of 13
Per page:1-10 of 13
Item Code | Length Under Head | Threaded Length | Head Height | Fitting Style | Thread Length | Tube Size | Color | Thread Size | Material | Overall Diameter | Overall Height | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DP14A | 0.450 in | 0.450 in | 0.250 in | Threaded | 0.450 in | 7/8 in | Red | 1-1/8-16 | HDPE | 1.250 in | 0.700 in | 16 TPI | |
DP6A | 0.320 in | 0.320 in | 0.310 in | Threaded | 0.320 in | 3/8 in | Red | 9/16-20 | HDPE | 0.690 in | 0.630 in | 20 TPI | |
DP10A | 0.400 in | 0.400 in | 0.310 in | Threaded | 0.400 in | 5/8 in | Red | 27/32-18 | HDPE | 1.000 in | 0.710 in | 18 TPI | |
DP4A | 0.300 in | 0.300 in | 0.310 in | Threaded | 0.300 in | 1/4 in | Red | 7/16-24 | HDPE | 0.560 in | 0.610 in | 24 TPI | |
DP12A | 0.420 in | 0.420 in | 0.310 in | Threaded | 0.420 in | 3/4 in | Red | #1-16 | HDPE | 1.120 in | 0.730 in | 16 TPI | |
DP16A | 0.450 in | 0.450 in | 0.250 in | Threaded | 0.450 in | 1.000 in | Red | 1-1/4-14 | HDPE | 1.380 in | 0.700 in | 14 TPI | |
DP25SA | 0.550 in | 0.550 in | 0.250 in | Threaded | 0.550 in | 1-1/2 in | Red | 1-27/32-14 | HDPE | 2.120 in | 0.800 in | 14 TPI | |
DP5A | 0.300 in | 0.300 in | 0.310 in | Threaded | 0.300 in | 5/16 in | Red | 1/2-24 | HDPE | 0.620 in | 0.610 in | 24 TPI | |
DP24A | 0.550 in | 0.550 in | 0.250 in | Threaded | 0.550 in | 1-1/2 in | Red | 1-25/32-14 | HDPE | 2.000 in | 0.800 in | 14 TPI |
Per page:
1-10 of 13
1–5 of 13 variants
Per page:
DP14A
Length Under Head
0.450 in
Threaded Length
0.450 in
Head Height
0.250 in
Fitting Style
Threaded
DP6A
Length Under Head
0.320 in
Threaded Length
0.320 in
Head Height
0.310 in
Fitting Style
Threaded
DP10A
Length Under Head
0.400 in
Threaded Length
0.400 in
Head Height
0.310 in
Fitting Style
Threaded
DP4A
Length Under Head
0.300 in
Threaded Length
0.300 in
Head Height
0.310 in
Fitting Style
Threaded
Per page:
1–5 of 14
