SRB - UNF Standard Threaded Plugs
Showing 1-9 of 9
Per page:1-9 of 9

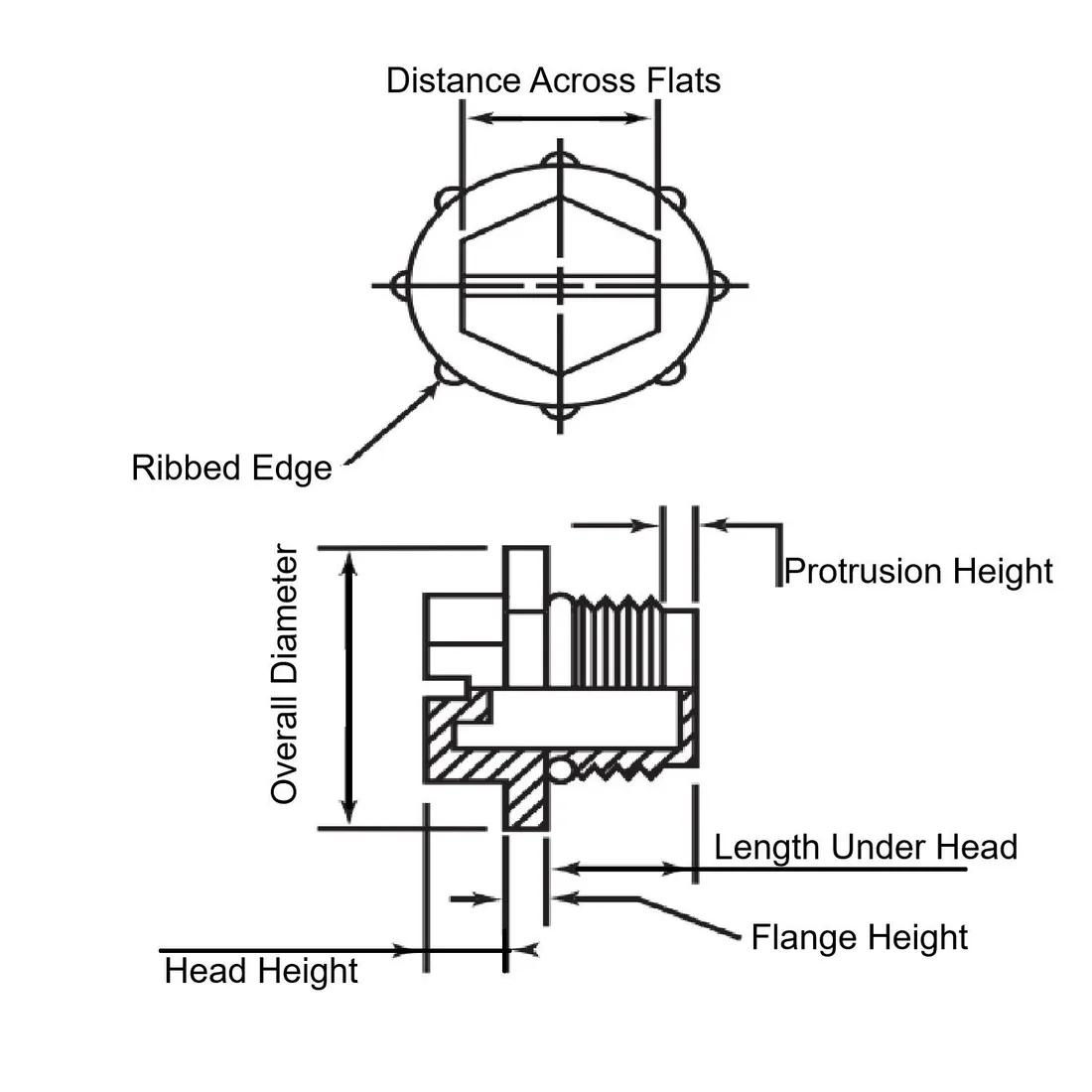

Item Code | Color | Length Under Head | Slot Width | Threaded Length | Head Height | Fitting Style | Thread Length | Flange Height | Thread Size | Material | Overall Diameter | Protrusion Height | Overall Height | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B4A | Blue | 0.360 in | 0.500 in | 0.360 in | 0.180 in | Threaded | 0.260 in | 0.090 in | 1/2-20 | HDPE | 0.680 in | 0.100 in | 0.630 | 20 TPI | |
B3A | Blue | 0.300 in | 0.430 in | 0.300 in | 0.180 in | Threaded | 0.200 in | 0.090 in | 7/16-20 | HDPE | 0.620 in | 0.100 in | 0.570 | 20 TPI | |
B5A | Blue | 0.382 in | 0.500 in | 0.382 in | 0.180 in | Threaded | 0.282 in | 0.090 in | 9/16-18 | HDPE | 0.750 in | 0.100 in | 0.652 | 18 TPI | |
B9A | Blue | 0.430 in | 0.750 in | 0.430 in | 0.250 in | Threaded | 0.330 in | 0.090 in | #1-14 | HDPE | 1.180 in | 0.100 in | 0.770 | 14 TPI | |
B6A | Blue | 0.350 in | 0.560 in | 0.350 in | 0.180 in | Threaded | 0.250 in | 0.090 in | 5/8-18 | HDPE | 0.810 in | 0.100 in | 0.620 | 18 TPI | |
B8A | Blue | 0.500 in | 0.750 in | 0.500 in | 0.240 in | Threaded | 0.400 in | 0.090 in | 7/8-14 | HDPE | 1.060 in | 0.100 in | 0.830 | 14 TPI | |
B7A | Blue | 0.440 in | 0.680 in | 0.440 in | 0.190 in | Threaded | 0.340 in | 0.090 in | 3/4-16 | HDPE | 0.940 in | 0.100 in | 0.720 | 16 TPI | |
B10A | Blue | 0.645 in | 0.870 in | 0.645 in | 0.250 in | Threaded | 0.545 in | 0.090 in | 1-1/16-14 | HDPE | 1.310 in | 0.100 in | 0.985 | 14 TPI | |
B11A | Blue | 0.620 in | 0.870 in | 0.620 in | 0.250 in | Threaded | 0.520 in | 0.090 in | 1-1/16-12 | HDPE | 1.310 in | 0.100 in | 0.960 | 12 TPI |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
B4A
Color
Blue
Length Under Head
0.360 in
Slot Width
0.500 in
Threaded Length
0.360 in
B3A
Color
Blue
Length Under Head
0.300 in
Slot Width
0.430 in
Threaded Length
0.300 in
B5A
Color
Blue
Length Under Head
0.382 in
Slot Width
0.500 in
Threaded Length
0.382 in
B9A
Color
Blue
Length Under Head
0.430 in
Slot Width
0.750 in
Threaded Length
0.430 in
Per page:
1–5 of 10
