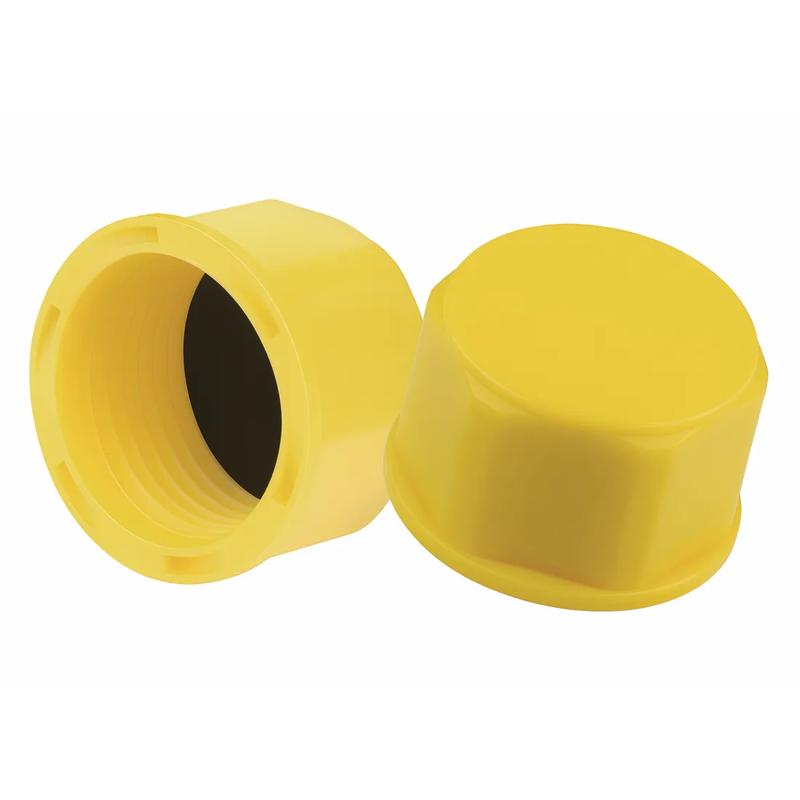

SRTSC - UNF/Metric Threaded Sealing Caps
Showing 1-10 of 38
Per page:1-10 of 38

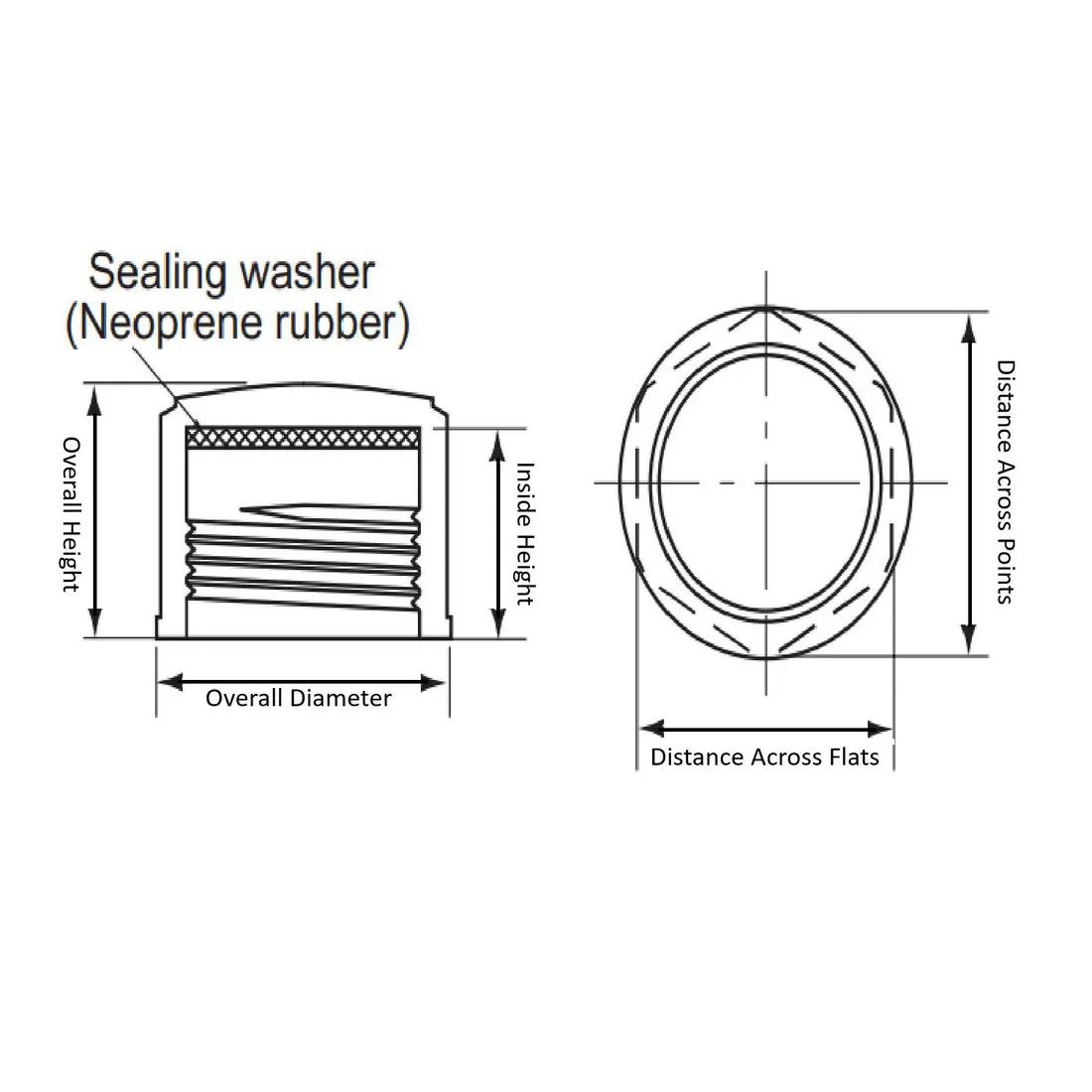

Item Code | Color | Inside Height | Distance Across Flats | Fitting Style | Seal Material | Threaded Height | Thread Size | Material | Overall Diameter | Overall Height | Distance Across Points | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TSC467056A | Yellow | 0.492 in | 0.511 in | Threaded | Neoprene Rubber | 0.492 in | 7/16-24 | HDPE | 0.610 | 0.570 in | 0.562 in | 24 TPI | |
TSC467057A | Yellow | 0.511 in | 0.511 in | Threaded | Neoprene Rubber | 0.511 in | 7/16-20 | HDPE | 0.610 | 0.590 in | 0.562 in | 20 TPI | |
TSC467062A | Yellow | 0.570 in | 0.905 in | Threaded | Neoprene Rubber | 0.570 in | 13/16-16 | HDPE | 1.043 | 0.649 in | 0.992 in | 16 TPI | |
TSC467058A | Yellow | 0.511 in | 0.590 in | Threaded | Neoprene Rubber | 0.511 in | 1/4-28 | HDPE | 0.689 | 0.590 in | 0.649 in | 28 TPI | |
TSC467054A | Yellow | 0.452 in | 0.314 in | Threaded | Neoprene Rubber | 0.452 in | 1/4-28 | HDPE | 0.393 | 0.531 in | 0.346 in | 28 TPI | |
TSC467055A | Yellow | 0.492 in | 0.433 in | Threaded | Neoprene Rubber | 0.492 in | 3/8-24 | HDPE | 0.511 | 0.570 in | 0.476 in | 24 TPI | |
TSC467061A | Yellow | 0.570 in | 0.826 in | Threaded | Neoprene Rubber | 0.570 in | 3/4-16 | HDPE | 0.944 | 0.649 in | 0.905 in | 16 TPI | |
TSC467063A | Yellow | 0.531 in | 0.944 in | Threaded | Neoprene Rubber | 0.531 in | 7/8-18 | HDPE | 1.082 | 0.610 in | 1.035 in | 18 TPI | |
TSC467060A | Yellow | 0.531 in | 0.708 in | Threaded | Neoprene Rubber | 0.531 in | 5/8-18 | HDPE | 0.826 | 0.610 in | 0.775 in | 18 TPI |
Per page:
1-10 of 38
1–5 of 38 variants
Per page:
TSC467056A
Color
Yellow
Inside Height
0.492 in
Distance Across Flats
0.511 in
Fitting Style
Threaded
TSC467057A
Color
Yellow
Inside Height
0.511 in
Distance Across Flats
0.511 in
Fitting Style
Threaded
TSC467062A
Color
Yellow
Inside Height
0.570 in
Distance Across Flats
0.905 in
Fitting Style
Threaded
TSC467058A
Color
Yellow
Inside Height
0.511 in
Distance Across Flats
0.590 in
Fitting Style
Threaded
Per page:
1–5 of 39
