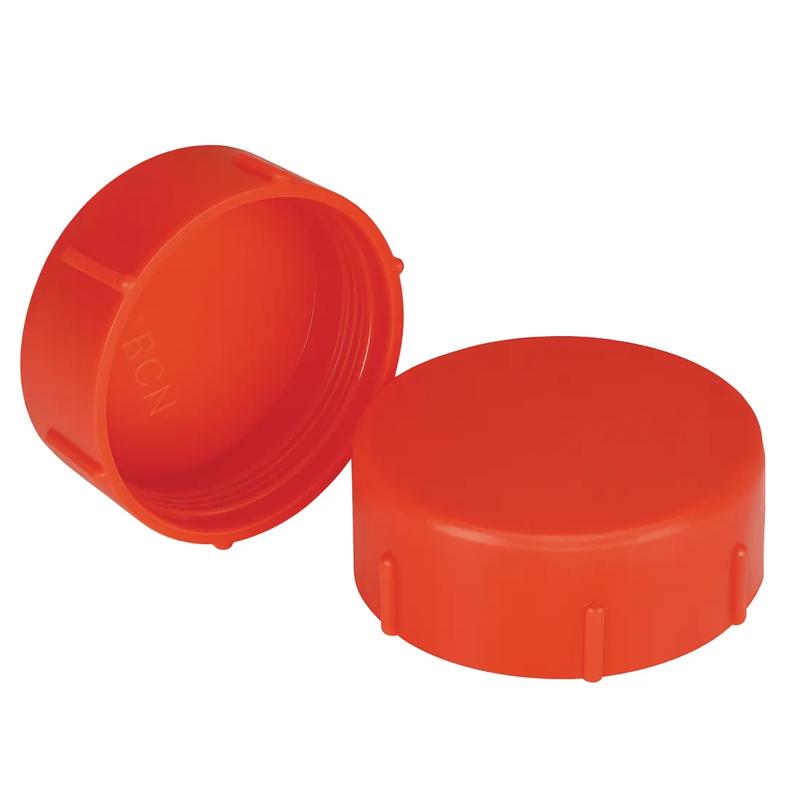

SRTCBSP - BSP Threaded Caps
Showing 1-10 of 12
Per page:1-10 of 12

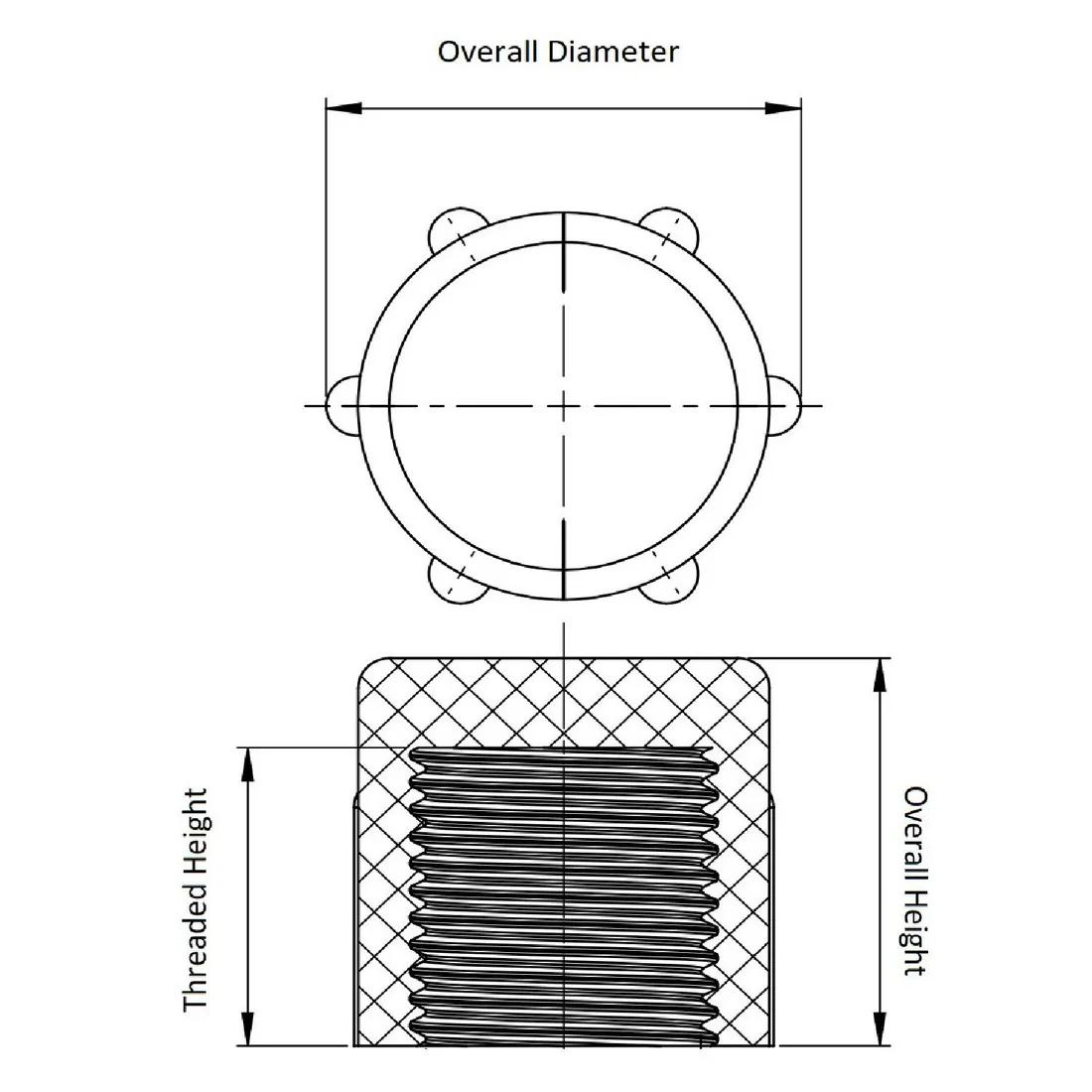

Item Code | Color | Length Under Head | Fitting Style | Threaded Height | Thread Size | Material | Overall Diameter | Overall Height | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
10198A | Red | 0.276 in | Threaded | 0.276 in | 1/2-14 | LDPE | 0.913 in | 0.531 in | 14 TPI | |
12905A | Red | 0.748 in | Threaded | 0.748 in | 2-1/2-11 | LDPE | 3.067 in | 1.087 in | 11 TPI | |
10204A | Red | 0.571 in | Threaded | 0.571 in | #1-11 | LDPE | 1.417 in | 0.748 in | 11 TPI | |
10104A | Red | 0.291 in | Threaded | 0.291 in | 3/8-19 | LDPE | 0.736 in | 0.445 in | 19 TPI | |
10559A | Red | 0.315 in | Threaded | 0.315 in | 1/4-19 | LDPE | 0.583 in | 0.433 in | 19 TPI | |
10968A | Red | 0.591 in | Threaded | 0.591 in | #2-11 | LDPE | 2.437 in | 0.827 in | 11 TPI | |
10167A | Red | 0.512 in | Threaded | 0.512 in | 1-1/4-11 | LDPE | 1.748 in | 0.780 in | 11 TPI | |
10205A | Red | 0.441 in | Threaded | 0.441 in | 3/4-14 | LDPE | 1.157 in | 0.697 in | 14 TPI | |
10432A | Red | 0.551 in | Threaded | 0.551 in | 1-1/2-11 | LDPE | 1.980 in | 0.807 in | 11 TPI |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
10198A
Color
Red
Length Under Head
0.276 in
Fitting Style
Threaded
Threaded Height
0.276 in
12905A
Color
Red
Length Under Head
0.748 in
Fitting Style
Threaded
Threaded Height
0.748 in
10204A
Color
Red
Length Under Head
0.571 in
Fitting Style
Threaded
Threaded Height
0.571 in
10104A
Color
Red
Length Under Head
0.291 in
Fitting Style
Threaded
Threaded Height
0.291 in
Per page:
1–5 of 13
