SRG - UNF/JIC Threaded Caps for Flared/Flareless Fittings
Showing 1-10 of 27
Per page:1-10 of 27

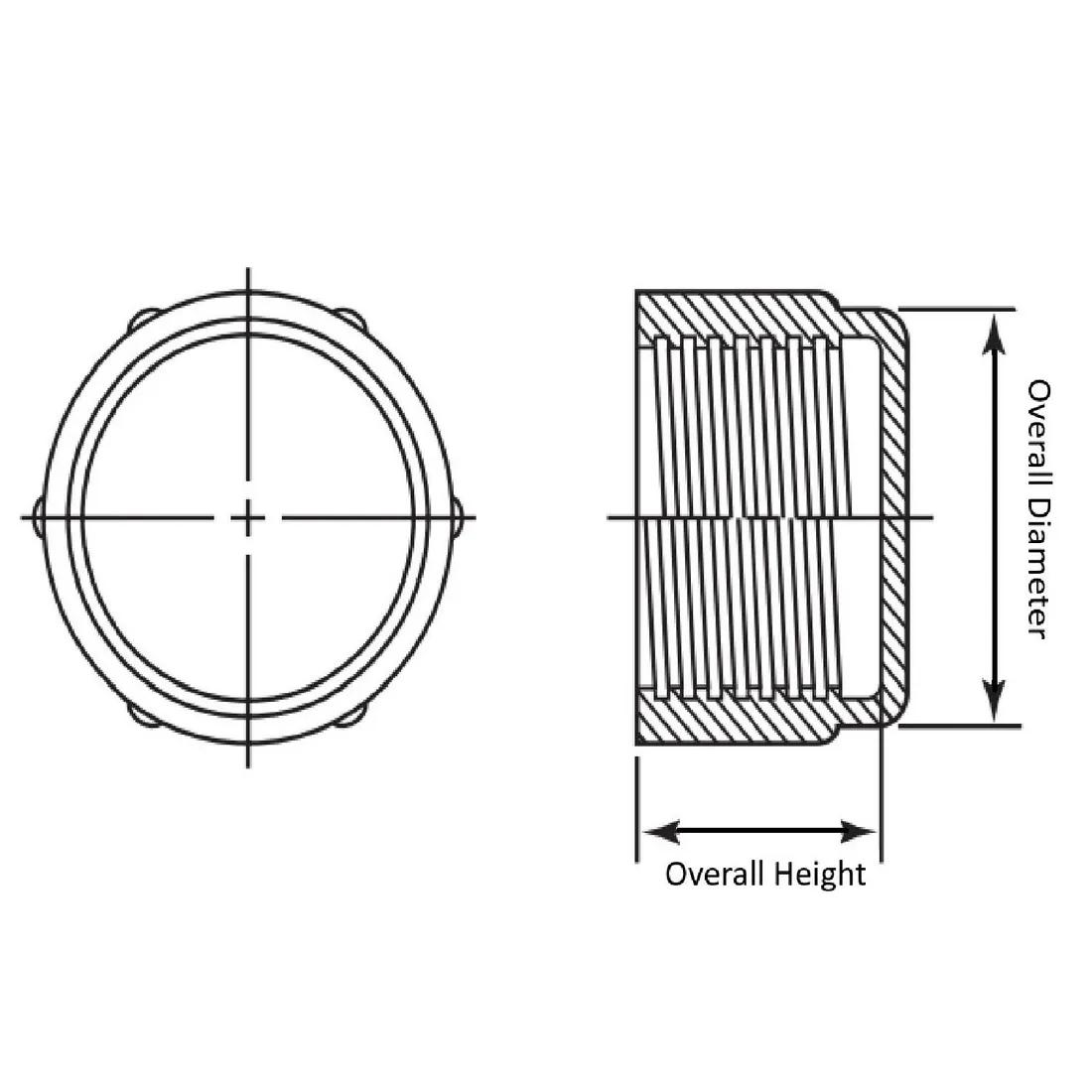

Item Code | Color | Inside Height | Head Diameter | Fitting Style | Thread Size | Material | Overall Diameter | Overall Height | Pitch/TPI | JIC Fitting Size | Tube Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
G13A | Blue | 0.375 in | 0.687 in | Threaded | 5/8-24 | LDPE | 0.687 in | 0.375 in | 24 TPI | - | - | |
G16A | Blue | 0.437 in | 0.813 in | Threaded | 3/4-20 | LDPE | 0.813 in | 0.437 in | 20 TPI | - | - | |
G14A | Blue | 0.625 in | 0.813 in | Threaded | 3/4-16 | LDPE | 0.813 in | 0.625 in | 16 TPI | #8 | 1/2 in | |
G12A | Blue | 0.813 in | 0.687 in | Threaded | 5/8-18 | LDPE | 0.687 in | 0.813 in | 18 TPI | - | 3/8 in | |
G15A | Blue | 0.906 in | 0.813 in | Threaded | 3/4-18 | LDPE | 0.813 in | 0.906 in | 18 TPI | - | - | |
G17A | Blue | 0.719 in | 0.937 in | Threaded | 7/8-14 | LDPE | 0.937 in | 0.719 in | 14 TPI | #10 | 5/8 in | |
G11A | Blue | 0.563 in | 0.687 in | Threaded | 5/8-18 | LDPE | 0.687 in | 0.563 in | 18 TPI | - | 3/8 in | |
G19A | Blue | 0.437 in | 0.937 in | Threaded | 7/8-18 | LDPE | 0.937 in | 0.437 in | 18 TPI | - | - | |
G18A | Blue | 1.000 in | 0.937 in | Threaded | 7/8-14 | LDPE | 0.937 in | 1.000 in | 14 TPI | #10 | 5/8 in |
Per page:
1-10 of 27
1–5 of 27 variants
Per page:
G13A
Color
Blue
Inside Height
0.375 in
Head Diameter
0.687 in
Fitting Style
Threaded
G16A
Color
Blue
Inside Height
0.437 in
Head Diameter
0.813 in
Fitting Style
Threaded
G14A
Inside Height
0.625 in
Head Diameter
0.813 in
Fitting Style
Threaded
JIC Fitting Size
#8
G12A
Inside Height
0.813 in
Head Diameter
0.687 in
Fitting Style
Threaded
Tube Size
3/8 in
Per page:
1–5 of 28
