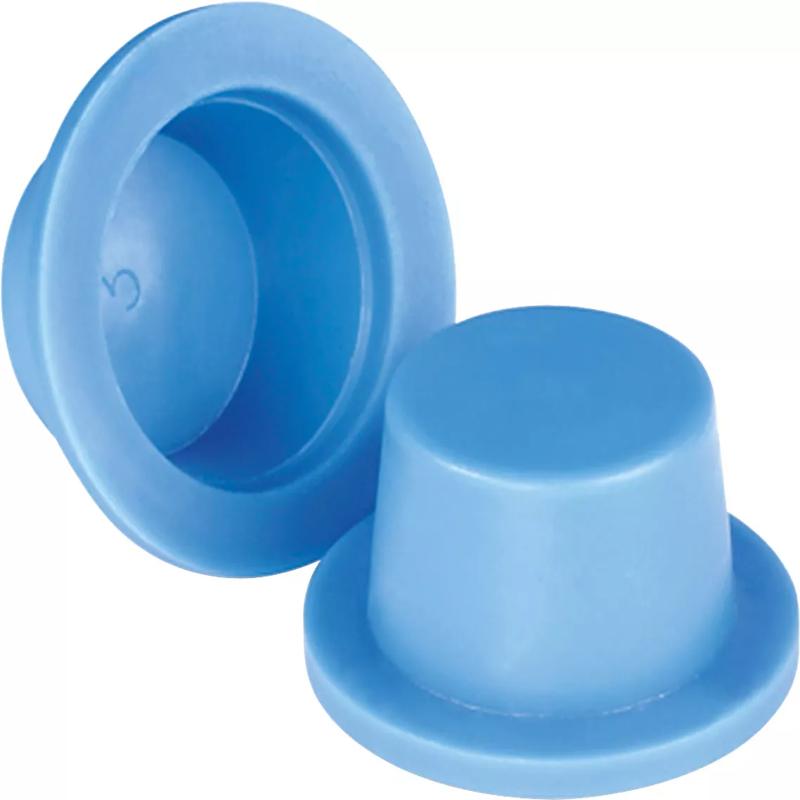

SRLF - Wide Flange Caps or Plugs
Showing 1-10 of 39
Per page:1-10 of 39
Item Code | Color | Material | Minimum Inside Diameter | Minimum Outside Diameter | Flange Diameter | Maximum Outside Diameter | Type | Maximum Inside Diameter | Height Under Flange | Overall Height | Flange Thickness | Fitting Style | Shape | Thread Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12436 | Red | LDPE | 18.9 mm | 21.9 mm | 48.0 mm | 25.0 mm | 4 | 22.0 mm | 17.5 mm | - | - | - | - | - | |
18360 | Red | LDPE | 29.8 mm | 31.1 mm | 47.6 mm | 34.4 mm | 2 | 32.8 mm | 19.1 mm | - | - | - | - | - | |
18357 | Red | LDPE | 23.2 mm | 24.7 mm | 38.1 mm | 27.7 mm | 2 | 26.1 mm | 19.1 mm | - | - | - | - | - | |
18351 | Red | LDPE | 13.2 mm | 14.7 mm | 25.4 mm | 16.9 mm | 2 | 15.4 mm | 12.7 mm | 0.500 in | - | - | - | - | |
12433 | Red | LDPE | 9.1 mm | 10.7 mm | 22.0 mm | 12.3 mm | 4 | 10.7 mm | 9.5 mm | - | - | - | - | - | |
12434 | Red | LDPE | 11.4 mm | 13.5 mm | 30.0 mm | 15.5 mm | 4 | 13.2 mm | 9.5 mm | - | - | - | - | - | |
12435 | Red | LDPE | 16.1 mm | 17.5 mm | 34.9 mm | 20.0 mm | 4 | 18.5 mm | 14.3 mm | - | - | - | - | - | |
18356 | Red | LDPE | 17.6 mm | 19.1 mm | 38.1 mm | 21.5 mm | 4 | 19.9 mm | 14.3 mm | - | - | - | - | - | |
LF18A | Blue | LDPE | 20.45 | 22.02 | 32.54 | 24.77 | - | 23.19 | 14.22 mm | 16.51 | 2.29 mm | - | - | - |
Per page:
1-10 of 39
1–5 of 39 variants
Per page:
12436
Color
Red
Material
LDPE
Minimum Inside Diameter
18.9 mm
Minimum Outside Diameter
21.9 mm
18360
Color
Red
Material
LDPE
Minimum Inside Diameter
29.8 mm
Minimum Outside Diameter
31.1 mm
18357
Color
Red
Material
LDPE
Minimum Inside Diameter
23.2 mm
Minimum Outside Diameter
24.7 mm
18351
Color
Red
Material
LDPE
Minimum Inside Diameter
13.2 mm
Minimum Outside Diameter
14.7 mm
Per page:
1–5 of 40
