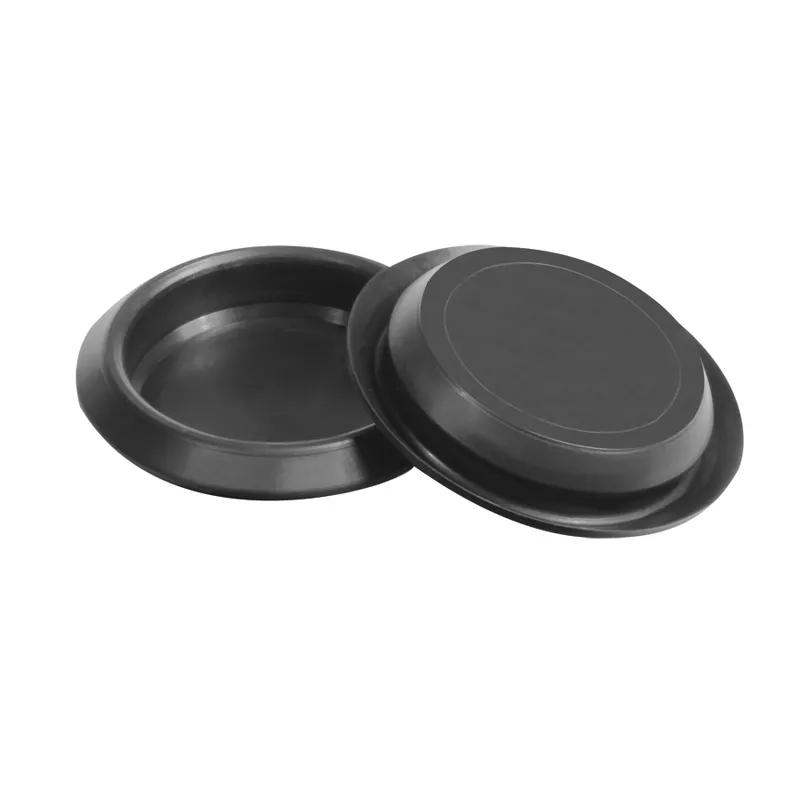

SRSR - Recessed Sheet Metal Plugs
Showing 1-10 of 12
Per page:1-10 of 12

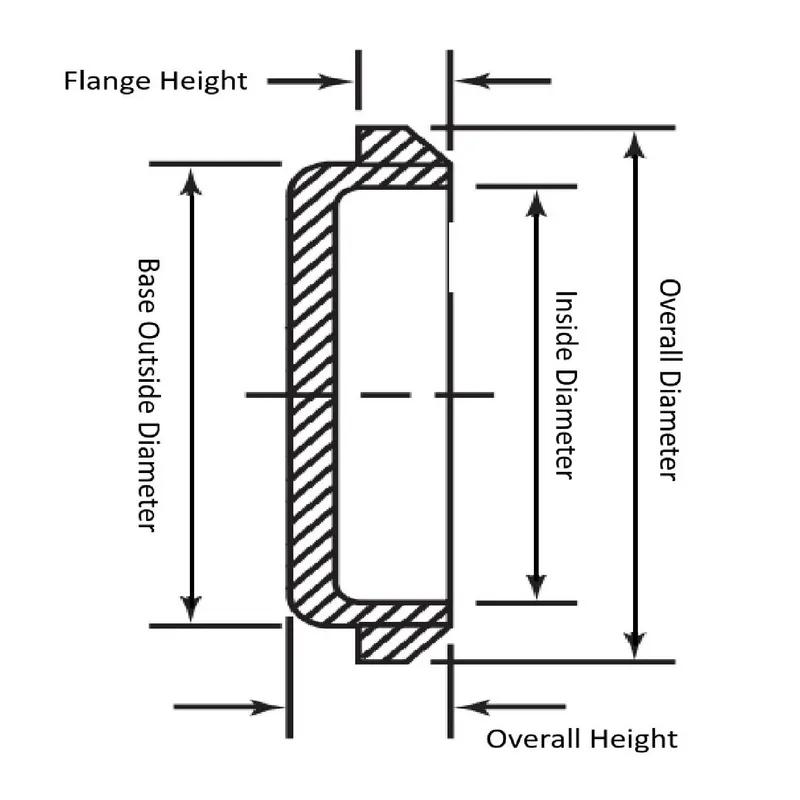

Item Code | Color | Inside Diameter | Maximum Panel Thickness | Hole Type | Fitting Style | Flange Height | Overall Height | Head Style | Base Outside Diameter | Type | Material | Overall Diameter | Mounting Hole Diameter | Head Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SR1-3/8A | Black | 34.93 mm | 4.82 mm | Round | Snap-Fit | 5.08 mm | 10.41 mm | Domed | 36.5 mm | 3 | LDPE | 44.45 mm | 34.93 mm | 0.200 in | |
SR3A | Black | 76.2 mm | 4.82 mm | Round | Snap-Fit | 5.08 mm | 10.41 mm | Domed | 77.85 mm | 3 | LDPE | 88.9 mm | 76.2 mm | 0.200 in | |
SR1-7/8A | Black | 47.63 mm | 4.82 mm | Round | Snap-Fit | 5.08 mm | 10.41 mm | Domed | 49.2 mm | 3 | LDPE | 57.15 mm | 47.63 mm | 0.200 in | |
SR1/2A | Black | 12.95 mm | 2.79 mm | Round | Snap-Fit | 2.29 mm | 7.37 mm | Domed | 13.97 mm | 3 | LDPE | 21.59 mm | 12.7 mm | 0.090 in | |
SR3/4A | Black | 19.05 mm | 4.57 mm | Round | Snap-Fit | 4.83 mm | 9.65 mm | Domed | 20.32 mm | 3 | LDPE | 29.36 mm | 19.05 mm | 0.190 in | |
SR2A | Black | 50.8 mm | 4.82 mm | Round | Snap-Fit | 4.32 mm | 9.91 mm | Domed | 52.32 mm | 3 | LDPE | 63.5 mm | 50.8 mm | 0.170 in | |
SR1-1/2A | Black | 38.48 mm | 3.17 mm | Round | Snap-Fit | 3.05 mm | 8.89 mm | Domed | 39.5 mm | 3 | LDPE | 47.63 mm | 38.1 mm | 0.120 in | |
SR1-3/4A | Black | 44.45 mm | 4.82 mm | Round | Snap-Fit | 5.08 mm | 10.41 mm | Domed | 46.02 mm | 3 | LDPE | 53.98 mm | 44.45 mm | 0.200 in | |
SR1-5/8A | Black | 41.28 mm | 4.82 mm | Round | Snap-Fit | 5.08 mm | 10.41 mm | Domed | 42.88 mm | 3 | LDPE | 50.8 mm | 41.28 mm | 0.200 in |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
SR1-3/8A
Color
Black
Inside Diameter
34.93 mm
Maximum Panel Thickness
4.82 mm
Hole Type
Round
SR3A
Color
Black
Inside Diameter
76.2 mm
Maximum Panel Thickness
4.82 mm
Hole Type
Round
SR1-7/8A
Color
Black
Inside Diameter
47.63 mm
Maximum Panel Thickness
4.82 mm
Hole Type
Round
SR1/2A
Color
Black
Inside Diameter
12.95 mm
Maximum Panel Thickness
2.79 mm
Hole Type
Round
Per page:
1–5 of 13
