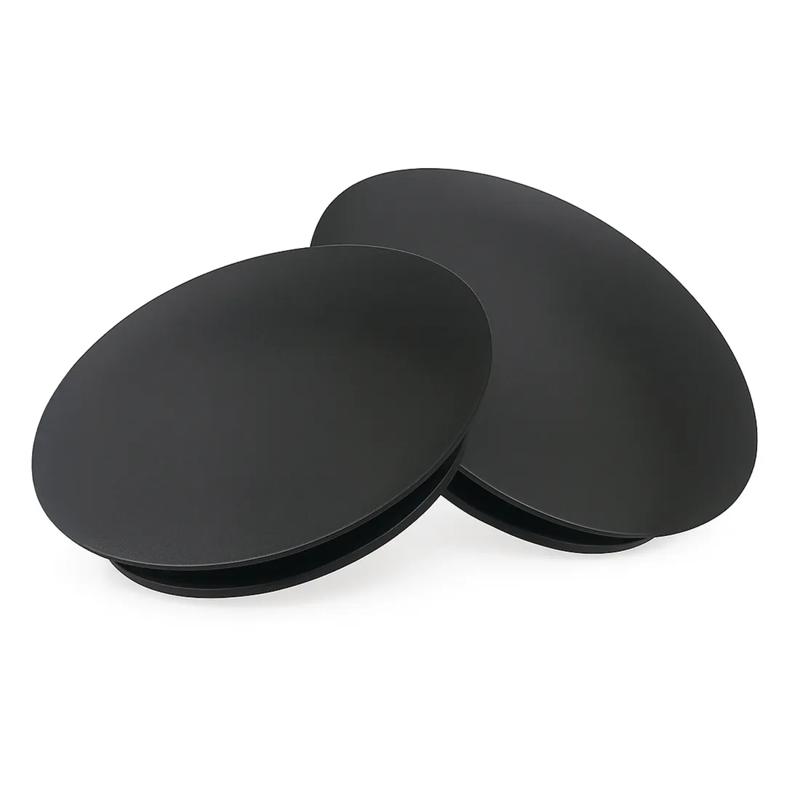

SRBLANKINGPLUG - PVC & TPE Hole Plugs

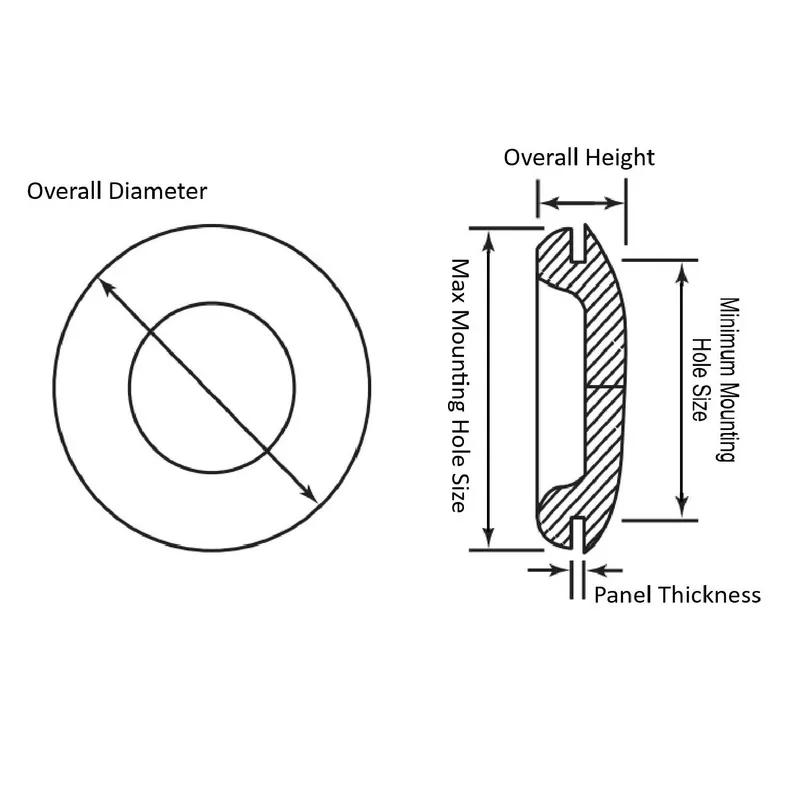

Item Code | Material Flammability Standard | Color | Maximum Mounting Hole Size | Minimum Mounting Hole Size | Hole Type | Panel Thickness | Overall Height | Maximum Temperature | Material | Head Shape | Overall Diameter | Minimum Panel Thickness | Maximum Operating Temperature | Type | Minimum Operating Temperature | Maximum Panel Thickness | Head Diameter | Mounting Hole Diameter | Head Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10499A | UL94 V-0 | Black | 22.0 mm | 20.0 mm | Round | 1.6 mm | 6.5 mm | 95 °C | PVC | Dome | 25.0 mm | - | - | - | - | - | - | - | - | |
10233B | UL94 V-0 | Black | 10.6 mm | 8.0 mm | Round | 1.6 mm | 4.5 mm | 95 °C | PVC | Dome | 14.5 mm | - | - | - | - | - | - | - | - | |
10320B | UL94 V-0 | Black | 52.6 mm | 51.5 mm | Round | 1.6 mm | 12.4 mm | 95 °C | PVC | Dome | 57.5 mm | - | - | - | - | - | - | - | - | |
10488B | UL94 V-0 | Black | 12.4 mm | 9.5 mm | Round | 1.6 mm | 6.6 mm | 95 °C | PVC | Dome | 15.0 mm | - | - | - | - | - | - | - | - | |
10678B | UL94 V-0 | Black | 22.0 mm | 19.0 mm | Round | 1.6 mm | 6.5 mm | 95 °C | PVC | Dome | 25.0 mm | - | - | - | - | - | - | - | - | |
10213B | UL94 V-0 | Black | 19.0 mm | 15.5 mm | Round | 1.6 mm | 7.5 mm | 95 °C | PVC | Dome | 22.0 mm | - | - | - | - | - | - | - | - | |
10825B | UL94 V-0 | Black | 9.5 mm | 6.4 mm | Round | 1.6 mm | 5.0 mm | 95 °C | PVC | Dome | 9.5 mm | - | - | - | - | - | - | - | - | |
10502B | UL94 V-0 | Black | 15.5 mm | 12.7 mm | Round | 1.6 mm | 5.6 mm | 95 °C | PVC | Dome | 18.7 mm | - | - | - | - | - | - | - | - | |
11059B | UL94 V-0 | Black | 35.4 mm | 31.5 mm | Round | 1.6 mm | 7.5 mm | 95 °C | PVC | Dome | 38.2 mm | - | - | - | - | - | - | - | - |
10499A
Material Flammability Standard
UL94 V-0
Color
Black
Maximum Mounting Hole Size
22.0 mm
Minimum Mounting Hole Size
20.0 mm
10233B
Material Flammability Standard
UL94 V-0
Color
Black
Maximum Mounting Hole Size
10.6 mm
Minimum Mounting Hole Size
8.0 mm
10320B
Material Flammability Standard
UL94 V-0
Color
Black
Maximum Mounting Hole Size
52.6 mm
Minimum Mounting Hole Size
51.5 mm
10488B
Material Flammability Standard
UL94 V-0
Color
Black
Maximum Mounting Hole Size
12.4 mm
Minimum Mounting Hole Size
9.5 mm
