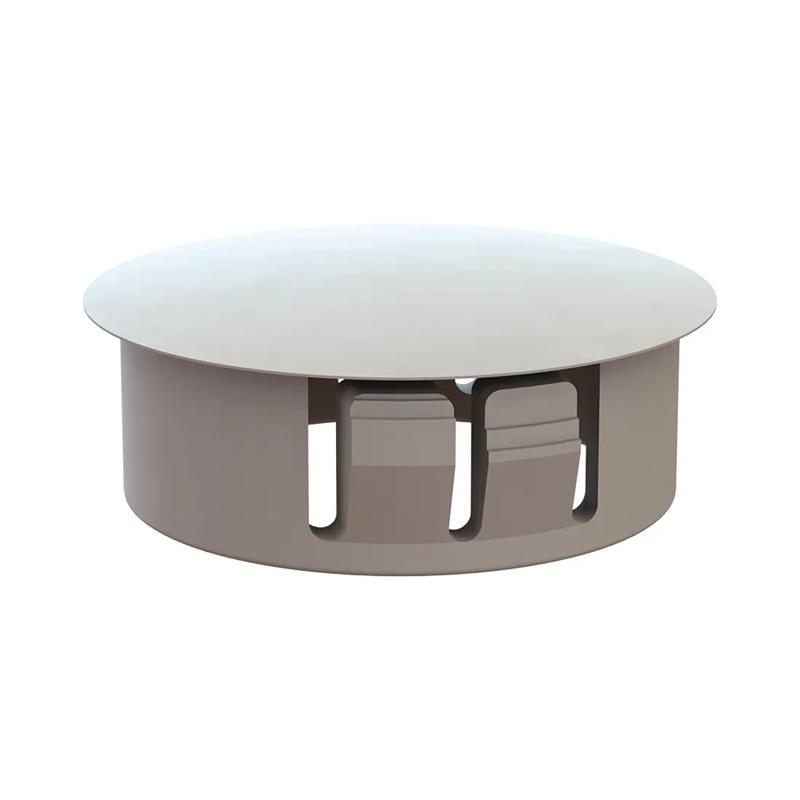

SR62MPKOP - Knock Out Plugs
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Material Flammability Standard | Color | Maximum Panel Thickness | Mounting Hole Diameter | Hole Type | Fitting Style | Flange Height | Overall Height | Head Style | Type | Material | Head Shape | Overall Diameter | Finish | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
62MP0875KOP | UL94 V-2 | Gray | 3.2 mm | 22.2 mm | Round | Push-Fit | 1.58 mm | 11.5 | Dome | 1 | Nylon 6 | Dome | 25.8 | - | |
62MP1375KOP | UL94 V-2 | Gray | 3.2 mm | 24.9 mm | Round | Push-Fit | 1.58 mm | 11.5 mm | Dome | - | Nylon 6 | Dome | 38.1 mm | Matt | |
62MP1500KOP | UL94 V-2 | Gray | 3.2 mm | 38.1 mm | Round | Push-Fit | 1.58 mm | 11.5 mm | Dome | - | Nylon 6 | Dome | 42.4 mm | Matt | |
62MP1093KOP | UL94 V-2 | Gray | 3.2 mm | 27.8 mm | Round | Push-Fit | 1.58 mm | 11.5 mm | Dome | - | Nylon 6 | Dome | 31.03 mm | Matt | |
62MP1750KOP | UL94 V-2 | Gray | 3.2 mm | 44.5 mm | Round | Push-Fit | 1.58 mm | 11.5 mm | Dome | - | Nylon 6 | Dome | 48.8 mm | Matt | |
62MP2000KOP | UL94 V-2 | Gray | 3.2 mm | 50.8 mm | Round | Push-Fit | 1.58 mm | 11.5 mm | Dome | - | Nylon 6 | Dome | 54.4 mm | Matt |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
62MP0875KOP
Material Flammability Standard
UL94 V-2
Color
Gray
Maximum Panel Thickness
3.2 mm
Mounting Hole Diameter
22.2 mm
62MP1375KOP
Material Flammability Standard
UL94 V-2
Color
Gray
Maximum Panel Thickness
3.2 mm
Mounting Hole Diameter
24.9 mm
62MP1500KOP
Material Flammability Standard
UL94 V-2
Color
Gray
Maximum Panel Thickness
3.2 mm
Mounting Hole Diameter
38.1 mm
62MP1093KOP
Material Flammability Standard
UL94 V-2
Color
Gray
Maximum Panel Thickness
3.2 mm
Mounting Hole Diameter
27.8 mm
