SRFPL - Packaging Tube Plugs
Showing 1-4 of 4
Per page:1-4 of 4

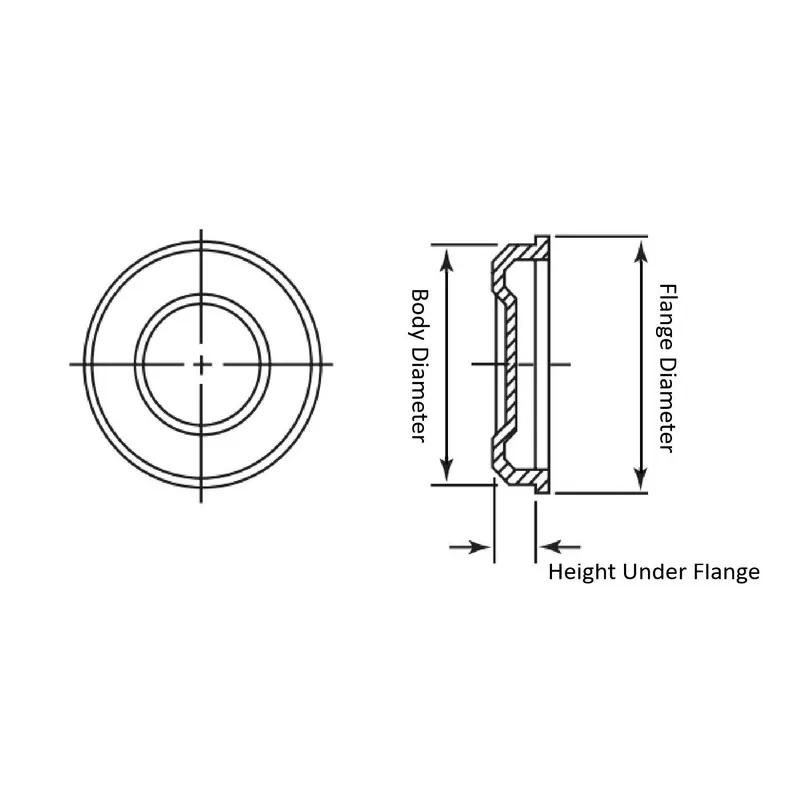

Item Code | Color | Body Diameter | Material | Minimum Inside Diameter | Flange Diameter | Maximum Outside Diameter | Overall Height | Minimum Outside Diameter | Inner Tube Diameter | Maximum Inside Diameter | Height Under Flange | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
FPL10A | Black | 10.150 in | LDPE | 10.000 in | 10.730 in | 10.150 in | 1.350 in | 9.930 in | 10.000 in | 9.929 in | 1.350 in | |
FPL12A | Black | 12.140 in | LDPE | 12.000 in | 12.700 in | 12.140 in | 1.350 in | 11.975 in | 12.000 in | 11.972 in | 1.350 in | |
FPL6A | Black | 6.040 in | LDPE | 6.000 in | 6.610 in | 6.040 in | 1.280 in | 5.985 in | 6.000 in | 5.984 in | 1.280 in | |
FPL8A | Black | 8.025 in | LDPE | 8.000 in | 8.610 in | 8.070 in | 1.290 in | 8.030 in | 8.000 in | 8.027 in | 1.290 in |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
FPL10A
Color
Black
Body Diameter
10.150 in
Material
LDPE
Minimum Inside Diameter
10.000 in
FPL12A
Color
Black
Body Diameter
12.140 in
Material
LDPE
Minimum Inside Diameter
12.000 in
FPL6A
Color
Black
Body Diameter
6.040 in
Material
LDPE
Minimum Inside Diameter
6.000 in
FPL8A
Color
Black
Body Diameter
8.025 in
Material
LDPE
Minimum Inside Diameter
8.000 in
