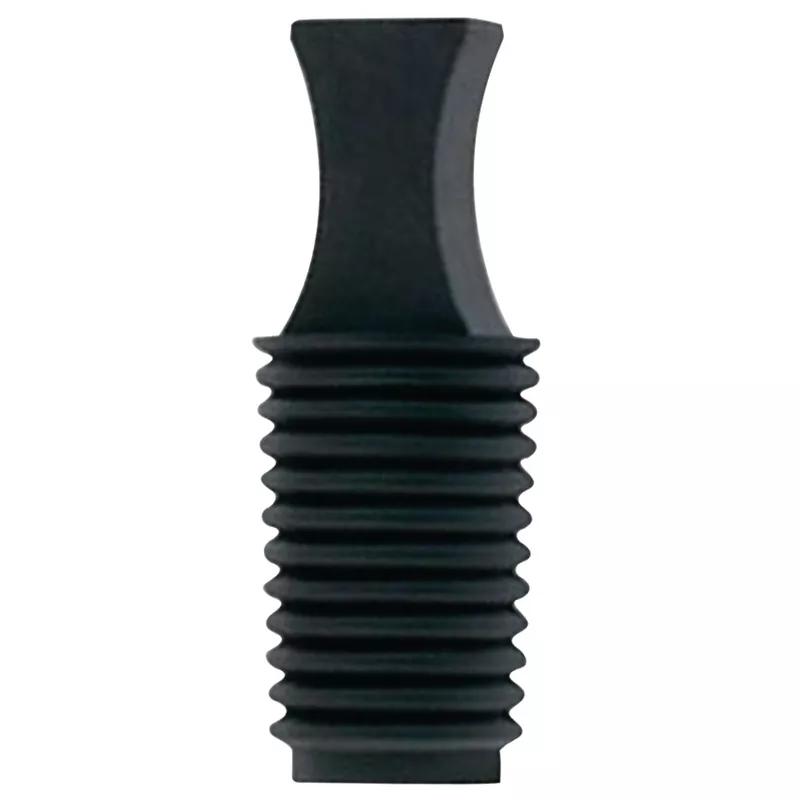

SRSFP - Flangeless Tapered Plugs
Showing 1-7 of 7
Per page:1-7 of 7

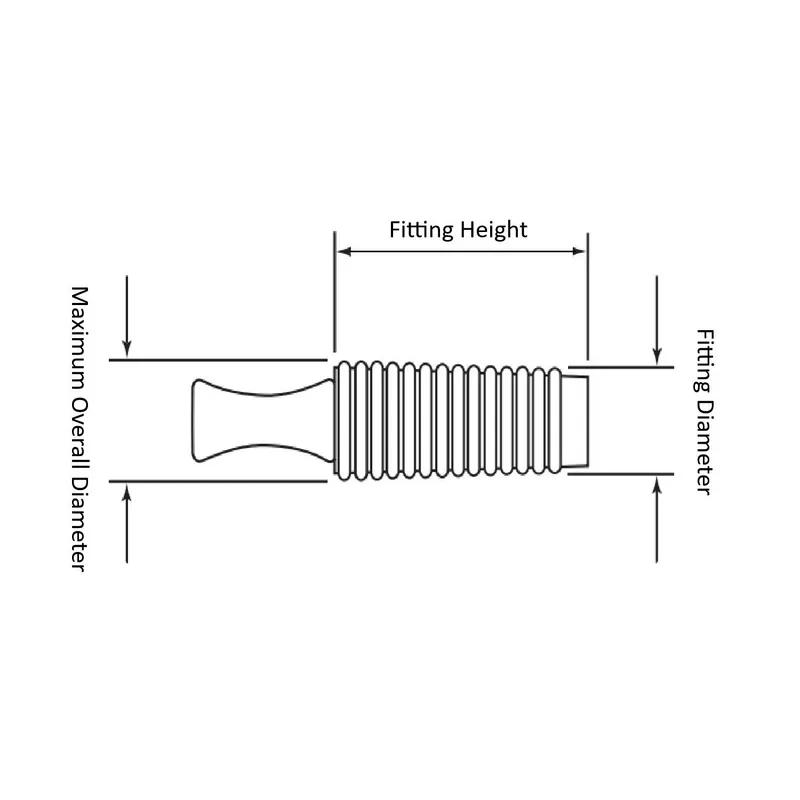

Item Code | Color | Fitting Diameter | Maximum Overall Diameter | Maximum Temperature | Fitting Height | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|
18415B | Black | 16.0 mm | 0.709 in | 203 °F | 25.4 mm | M16, 11/16 in | TPR | |
10398B | Black | 3.0 mm | 0.196 in | 203 °F | 15.0 mm | M3, #6, #8 | TPR | |
18409B | Black | 4.0 mm | 0.236 in | 203 °F | 25.4 mm | M4, #10 | TPR | |
18410B | Black | 6.0 mm | 0.315 in | 203 °F | 25.4 mm | M6, 1/4 in, 5/16 in | TPR | |
18412B | Black | 10.0 mm | 0.472 in | 203 °F | 25.4 mm | M10, 7/16 in | TPR | |
18414B | Black | 14.0 mm | 0.630 in | 203 °F | 25.4 mm | M14, 5/8 in | TPR | |
18411B | Black | 8.0 mm | 0.394 in | 203 °F | 25.4 mm | M8, 3/8 in | TPR |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
18415B
Color
Black
Fitting Diameter
16.0 mm
Maximum Overall Diameter
0.709 in
Maximum Temperature
203 °F
10398B
Color
Black
Fitting Diameter
3.0 mm
Maximum Overall Diameter
0.196 in
Maximum Temperature
203 °F
18409B
Color
Black
Fitting Diameter
4.0 mm
Maximum Overall Diameter
0.236 in
Maximum Temperature
203 °F
18410B
Color
Black
Fitting Diameter
6.0 mm
Maximum Overall Diameter
0.315 in
Maximum Temperature
203 °F
Per page:
1–5 of 8
