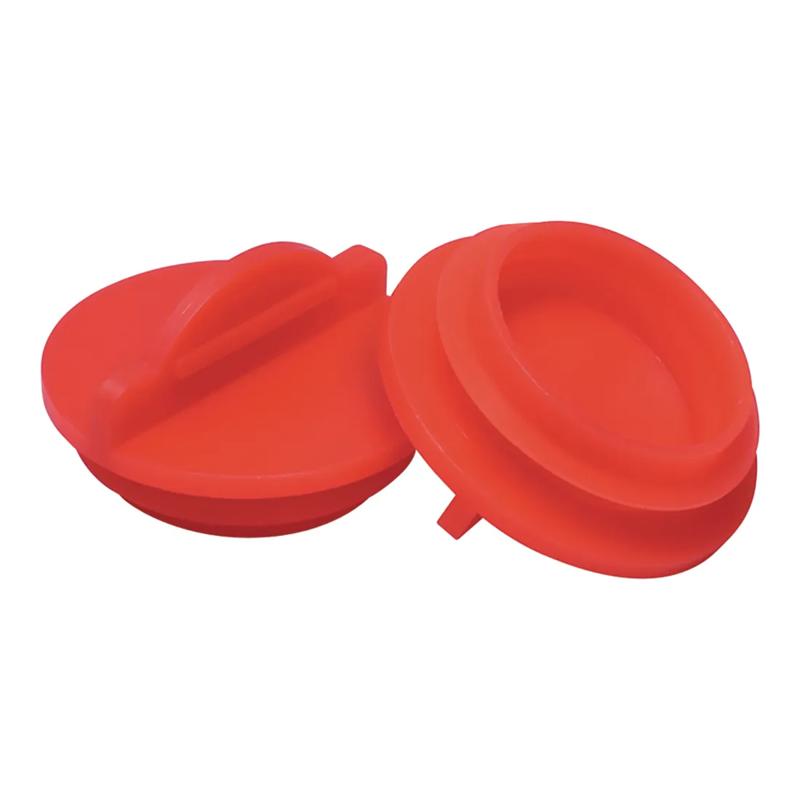

SRSF - Snap Fit Plugs for Standard/JIC/Metric/BSP Threads
Showing 1-10 of 11
Per page:1-10 of 11
Item Code | Overall Height | Color | Ring Inside Length | Thread Size | Material | Overall Diameter | Plug Body Height | Ring Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
12367A | 1.280 in | Red | 0.276 in | 11/16 in, M25, M26, 3/4 in | LDPE | 1.177 in | 0.354 in | 1.004 in | |
12369A | 1.535 in | Red | 0.276 in | 1-5/16 in, M32, 1.000 in | LDPE | 1.401 in | 0.354 in | 1.260 in | |
10530A | 0.543 in | Red | 0.157 in | 7/16 in, M10, 1/8 in | LDPE | - | 0.236 in | 0.386 in | |
12622A | 1.681 in | Red | 0.276 in | 1-1/2 in, 1-3/8 in, M36, 1-1/8 in | LDPE | 1.562 in | 0.354 in | 1.406 in | |
12364A | 0.917 in | Red | 0.197 in | 5/8 in, M16, 3/8 in | LDPE | 0.767 in | 0.276 in | 0.650 in | |
12363A | 0.713 in | Red | 0.197 in | 1/2 in, M12, M13, M14, 1/4 in | LDPE | 0.622 in | 0.276 in | 0.516 in | |
12621A | 1.200 in | Red | 0.276 in | M24 | LDPE | 1.110 in | 0.354 in | 0.925 in | |
12365A | 1.114 in | Red | 0.276 in | M20, 1/2 in | LDPE | 0.893 in | 0.354 in | 0.839 in | |
12366A | 1.158 in | Red | 0.276 in | 7/8 in, M22, 5/8 in | LDPE | 1.015 in | 0.354 in | 0.882 in |
Per page:
1-10 of 11
1–5 of 11 variants
Per page:
12367A
Overall Height
1.280 in
Color
Red
Ring Inside Length
0.276 in
Thread Size
11/16 in, M25, M26, 3/4 in
12369A
Overall Height
1.535 in
Color
Red
Ring Inside Length
0.276 in
Thread Size
1-5/16 in, M32, 1.000 in
10530A
Overall Height
0.543 in
Color
Red
Ring Inside Length
0.157 in
Thread Size
7/16 in, M10, 1/8 in
12622A
Overall Height
1.681 in
Color
Red
Ring Inside Length
0.276 in
Thread Size
1-1/2 in, 1-3/8 in, M36, 1-1/8 in
