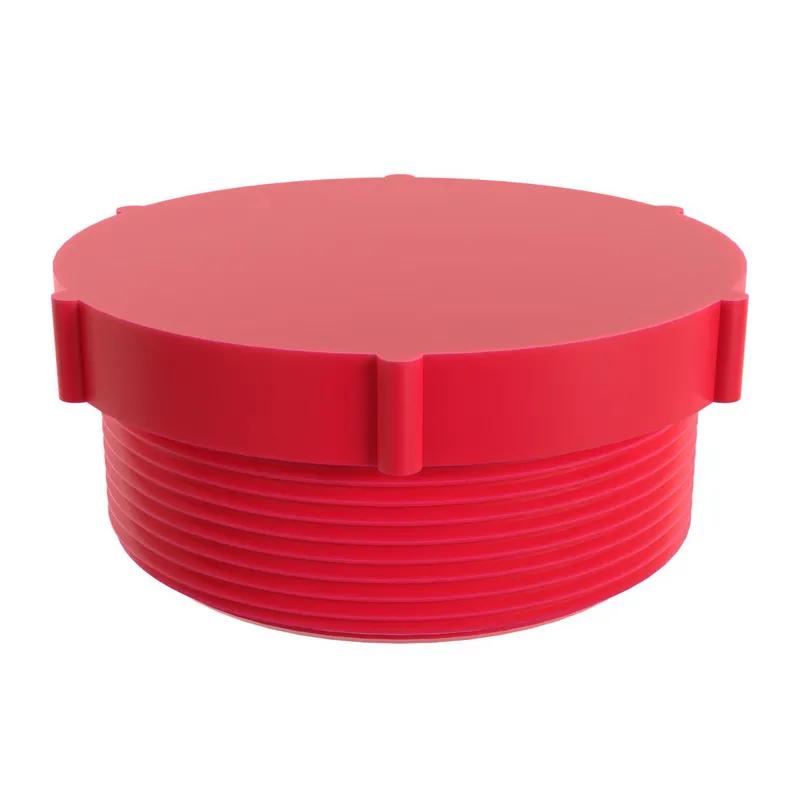

SRQFP - Quick Fit Plugs for UNF/JIC/Metric Threads
Showing 1-10 of 14
Per page:1-10 of 14

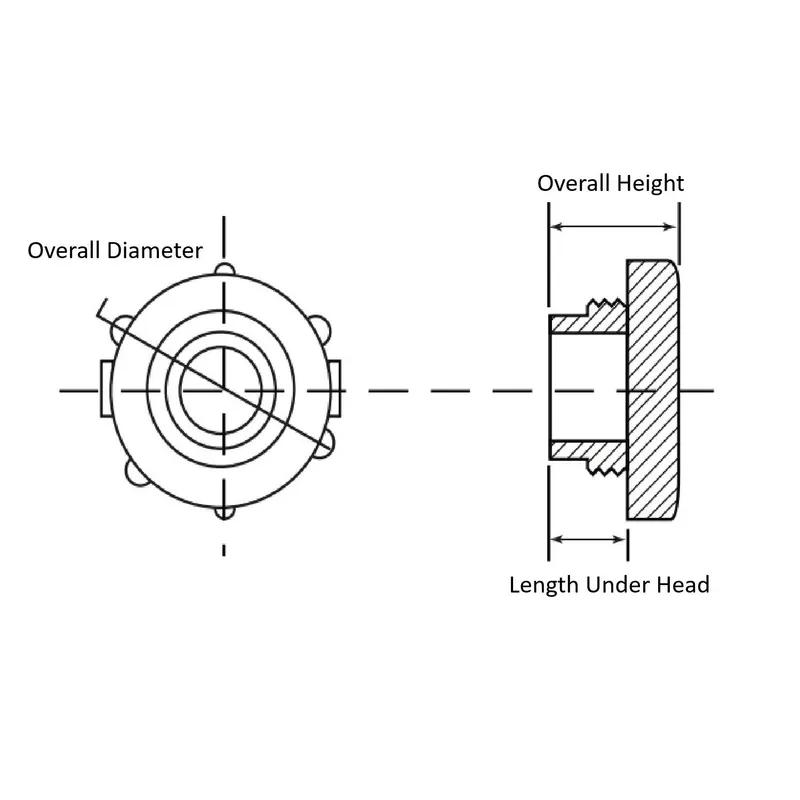

Item Code | Color | Length Under Head | Thread Engagement | Thread Size | Material | Overall Diameter | Overall Height | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
QFP035A | Red | 0.236 in | Quick Fit Threaded | 1-5/16-12 | LDPE | 1.587 in | 0.370 in | 12 TPI | |
QFP110A | Red | 0.315 in | Quick Fit Threaded | M16 x 1.5 | LDPE | 0.929 in | 0.492 in | 1.5 mm | |
QFP130A | Red | 0.610 in | Quick Fit Threaded | M42 x 2.0 | LDPE | 2.133 in | 0.854 in | 2.0 mm | |
QFP020A | Red | 0.232 in | Quick Fit Threaded | 3/4-16 | LDPE | 1.051 in | 0.366 in | 16 TPI | |
QFP005A | Red | 0.232 in | Quick Fit Threaded | 7/16-20 | LDPE | 0.728 in | 0.354 in | 20 TPI | |
QFP015A | Red | 0.232 in | Quick Fit Threaded | 9/16-18 | LDPE | 0.843 in | 0.354 in | 18 TPI | |
QFP125A | Red | 0.413 in | Quick Fit Threaded | M36 x 2.0 | LDPE | 1.795 in | 0.649 in | 2.0 mm | |
QFP025A | Red | 0.244 in | Quick Fit Threaded | 7/8-14 | LDPE | 1.173 in | 0.362 in | 14 TPI | |
QFP140A | Red | 0.606 in | Quick Fit Threaded | M52 x 2.0 | LDPE | 2.594 in | 0.839 in | 2.0 mm |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
QFP035A
Color
Red
Length Under Head
0.236 in
Thread Engagement
Quick Fit Threaded
Thread Size
1-5/16-12
QFP110A
Color
Red
Length Under Head
0.315 in
Thread Engagement
Quick Fit Threaded
Thread Size
M16 x 1.5
QFP130A
Color
Red
Length Under Head
0.610 in
Thread Engagement
Quick Fit Threaded
Thread Size
M42 x 2.0
QFP020A
Color
Red
Length Under Head
0.232 in
Thread Engagement
Quick Fit Threaded
Thread Size
3/4-16
Per page:
1–5 of 15
