SRMPP - Flexible Pull Plugs
Showing 1-10 of 19
Per page:1-10 of 19

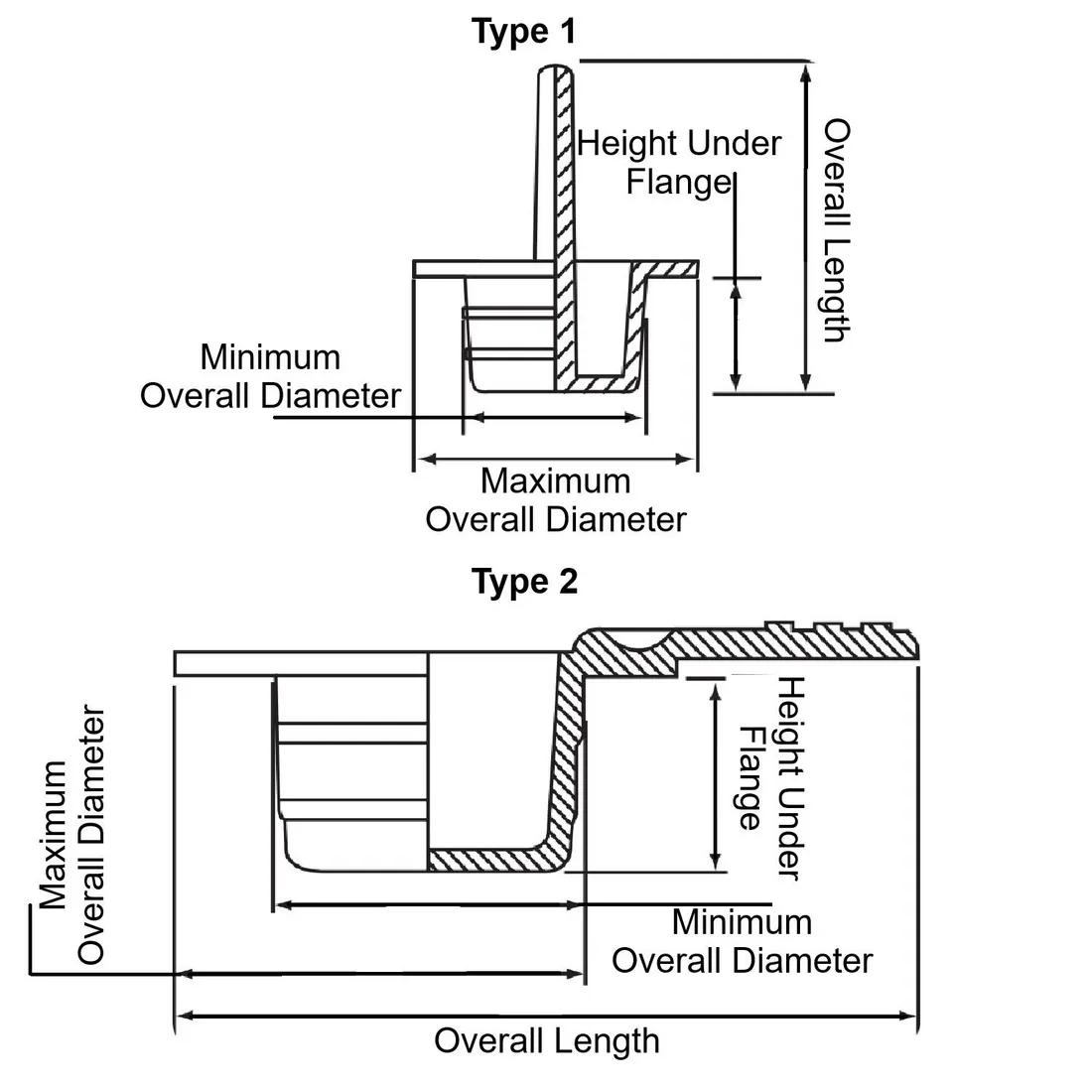

Item Code | Max. Body Diameter | Color | Overall Length | Grip Length | Fitting Style | Height Under Flange | Minimum Operating Temperature | Thread Size | Material | Overall Diameter | Overall Height | Flange Length | Shape | Maximum Operating Temperature | Minimum Plug Diameter | Flange Diameter | Type | Maximum Plug Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MPP5A | 7.5 mm | Black | 0.994 in | 15.0 mm | Close-Fit | 8.0 mm | -40 °C | M8, 5/16 in | TPR | 7.5 mm | .295 in | 0.315 in | 25.25 mm | Conical | 135 °C | - | - | - | - | |
MPP35A | 13.0 mm | Black | 1.220 in | 21.0 mm | Close-Fit | 10.0 mm | -40 °C | M14, 9/16 in | TPR | 13 mm | .512 in | 0.394 in | 30.99 mm | Conical | 135 °C | - | - | - | - | |
MPP45A | 15.5 mm | Black | 1.309 in | 23.0 mm | Close-Fit | 10.0 mm | -40 °C | M16, 5/8 in | TPR | 15.5 mm | .610 in | 0.394 in | 33.25 mm | Conical | 135 °C | - | - | - | - | |
MPP75A | 21.4 mm | Black | 1.551 in | 29.5 mm | Close-Fit | 12.0 mm | -40 °C | M22, 7/8 in | TPR | 21.4 mm | .843 in | 0.472 in | 39.4 mm | Conical | 135 °C | - | - | - | - | |
MPP15A | 9.5 mm | Black | 1.073 in | 17.0 mm | Close-Fit | 8.0 mm | -40 °C | M10, 3/8 in | TPR | 9.5 mm | .374 in | 0.315 in | 27.25 mm | Conical | 135 °C | - | - | - | - | |
MPP50A | 17.0 mm | Black | 1.398 in | 26.0 mm | Close-Fit | 10.0 mm | -40 °C | M18, 11/16 in | TPR | 17 mm | .669 in | 0.394 in | 35.51 mm | Conical | 135 °C | - | - | - | - | |
MPP85A | 23.5 mm | Black | 1.606 in | 28.5 mm | Close-Fit | 12.0 mm | -40 °C | M24, 1.000 in | TPR | 23.5 mm | .925 in | 0.472 in | 40.8 mm | Conical | 135 °C | - | - | - | - | |
MPP65A | 19.4 mm | Black | 1.461 in | 27.5 mm | Close-Fit | 12.0 mm | -40 °C | M20, 13/16 in | TPR | 19.4 mm | .764 in | 0.472 in | 37.1 mm | Conical | 135 °C | - | - | - | - | |
MPP25A | 11.5 mm | Black | 1.112 in | 17.0 mm | Close-Fit | 8.0 mm | -40 °C | M12, 1/2 in | TPR | 11.5 mm | .453 in | 0.315 in | 28.24 mm | Conical | 135 °C | - | - | - | - |
Per page:
1-10 of 19
1–5 of 19 variants
Per page:
MPP5A
Max. Body Diameter
7.5 mm
Color
Black
Overall Length
0.994 in
Grip Length
15.0 mm
MPP35A
Max. Body Diameter
13.0 mm
Color
Black
Overall Length
1.220 in
Grip Length
21.0 mm
MPP45A
Max. Body Diameter
15.5 mm
Color
Black
Overall Length
1.309 in
Grip Length
23.0 mm
MPP75A
Max. Body Diameter
21.4 mm
Color
Black
Overall Length
1.551 in
Grip Length
29.5 mm
Per page:
1–5 of 20
