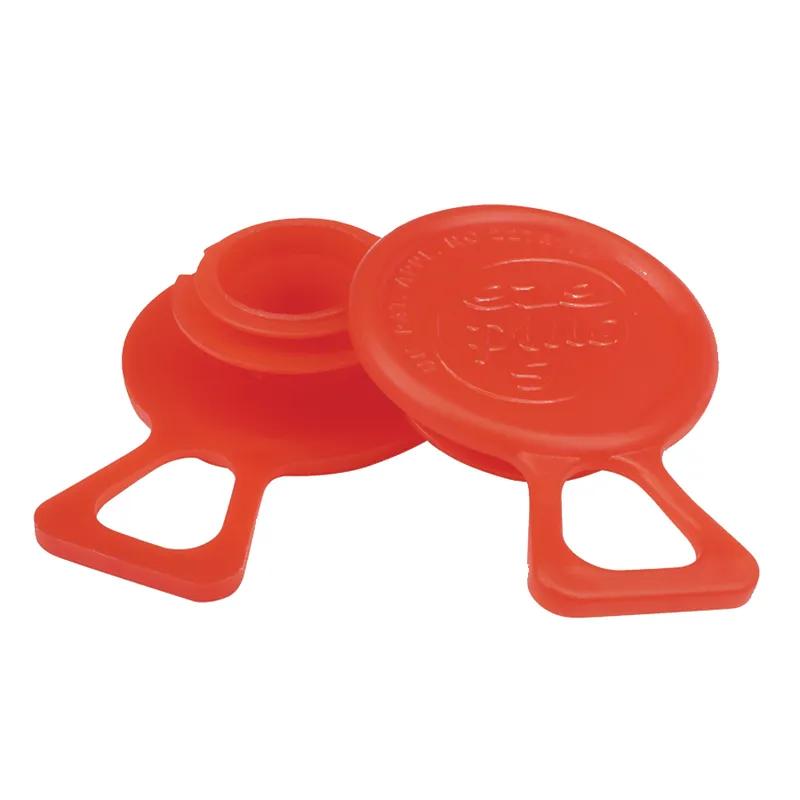

SREZP - Quick Fit Easy Pull Plugs for Unified Standard/Metric Threads
Showing 1-10 of 12
Per page:1-10 of 12

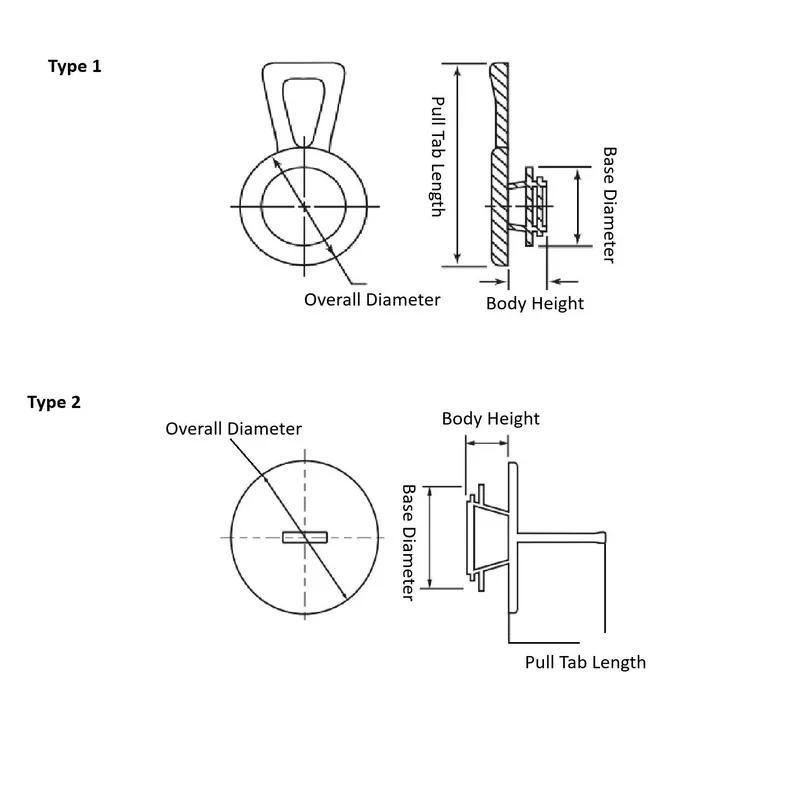

Item Code | Color | Thread Engagement | Pull-Tab Length | Head Diameter | Base Diameter | Overall Height | Body Height | Thread Size | Material | Overall Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
EZP2060A | Red | Quick Fit Threaded | 0.846 in | 1.574 in | 1.086 in | 1.220 in | 0.374 in | M26, M28, 1-1/16 in, 1-1/8 in | LDPE | 1.574 in | |
EZP1010A | Red | Quick Fit Threaded | 1.195 in | 0.515 in | 0.375 in | 1.495 in | 0.300 in | M8, 5/16 in, 3/8 in | LDPE | 0.515 in | |
EZP2020A | Red | Quick Fit Threaded | 0.834 in | 0.748 in | 0.519 in | 1.188 in | 0.354 in | M10, M12, 7/16 in | LDPE | 0.748 in | |
EZP1030A | Red | Quick Fit Threaded | 1.574 in | 0.893 in | 0.649 in | 1.849 in | 0.275 in | M14, M16, 1/2 in, 5/8 in, 9/16 in | LDPE | 0.893 in | |
EZP1050A | Red | Quick Fit Threaded | 2.023 in | 1.350 in | 0.937 in | 2.397 in | 0.374 in | M22, M24, 7/8 in | LDPE | 1.350 in | |
EZP2050A | Red | Quick Fit Threaded | 0.842 in | 1.350 in | 0.937 in | 1.216 in | 0.374 in | M22, M24, 7/8 in | LDPE | 1.350 in | |
EZP1040A | Red | Quick Fit Threaded | 1.850 in | 1.181 in | 0.767 in | 2.164 in | 0.314 in | M18, M20, 3/4 in | LDPE | 1.181 in | |
EZP2040A | Red | Quick Fit Threaded | 0.842 in | 1.181 in | 0.767 in | 1.156 in | 0.314 in | M18, M20, 3/4 in | LDPE | 1.181 in | |
EZP1060A | Red | Quick Fit Threaded | 2.244 in | 1.574 in | 1.086 in | 2.618 in | 0.374 in | M26, M28, 1-1/16 in, 1-1/8 in | LDPE | 1.574 in |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
EZP2060A
Color
Red
Thread Engagement
Quick Fit Threaded
Pull-Tab Length
0.846 in
Head Diameter
1.574 in
EZP1010A
Color
Red
Thread Engagement
Quick Fit Threaded
Pull-Tab Length
1.195 in
Head Diameter
0.515 in
EZP2020A
Color
Red
Thread Engagement
Quick Fit Threaded
Pull-Tab Length
0.834 in
Head Diameter
0.748 in
EZP1030A
Color
Red
Thread Engagement
Quick Fit Threaded
Pull-Tab Length
1.574 in
Head Diameter
0.893 in
