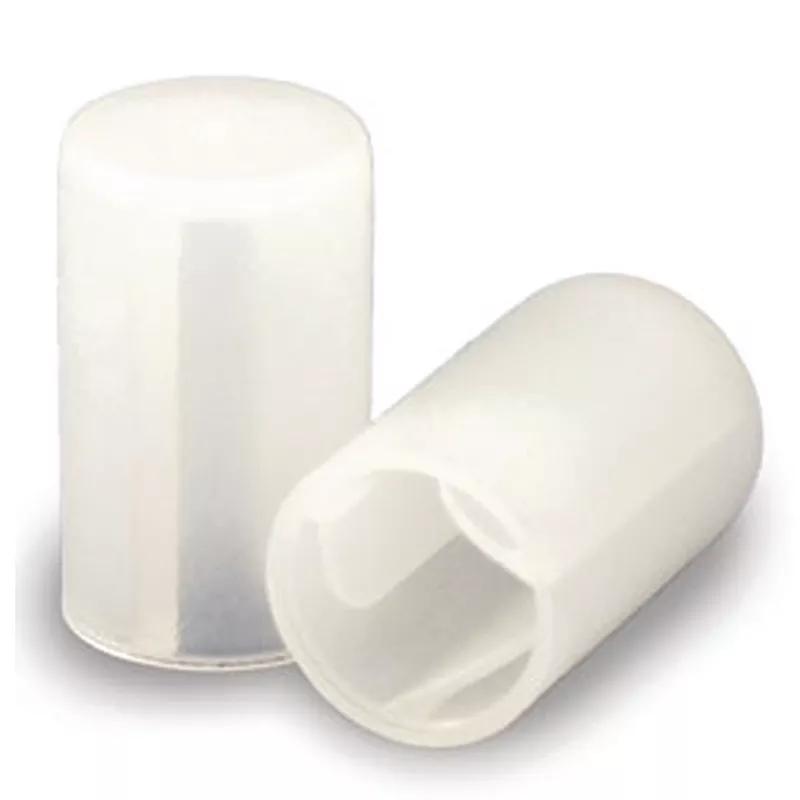

SRMFC - Finned Stud Caps
Showing 1-10 of 12
Per page:1-10 of 12

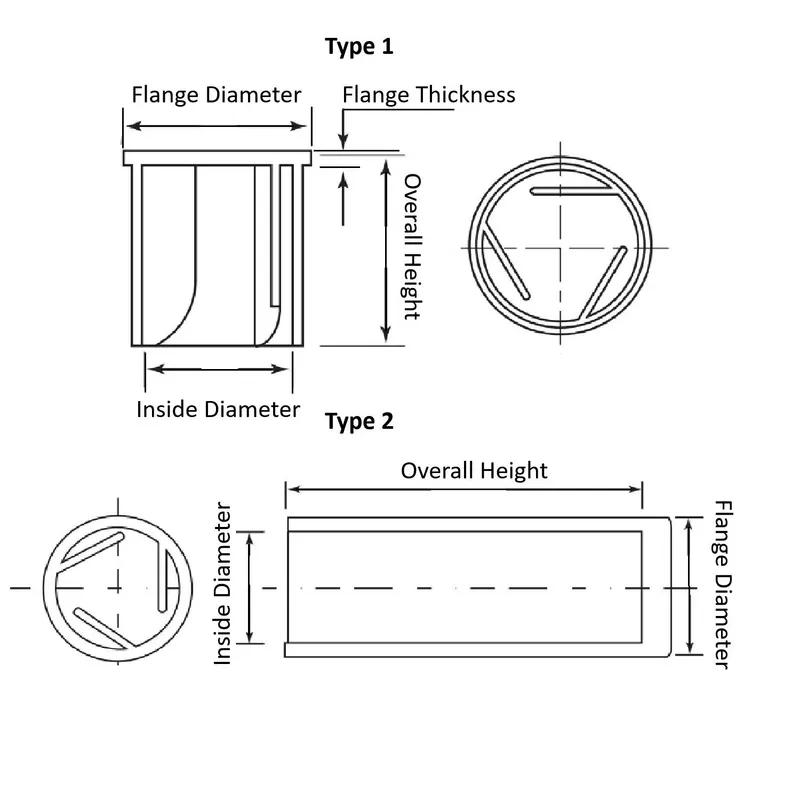

Item Code | Color | Material | Inside Diameter | Flange Diameter | Max. Stud Size | Fitting Style | Flange Thickness | Overall Height | Min. Stud Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
MFC110A | Natural | LDPE | 0.394 | 0.551 | 0.314 in | Push-Fit | 0.059 in | 0.866 in | 0.255 in | |
MFC020A | Natural | LDPE | 0.433 in | 0.472 | 0.354 in | Push-Fit | - | 0.866 in | 0.314 in | |
MFC010A | Natural | LDPE | 0.394 in | 0.433 | 0.314 in | Push-Fit | - | 1.299 in | 0.255 in | |
MFC140A | Natural | LDPE | 0.630 | 0.787 | 0.512 in | Push-Fit | 0.059 in | 0.866 in | 0.433 in | |
MFC150A | Natural | LDPE | 0.709 | 0.866 | 0.629 in | Push-Fit | 0.059 in | 0.866 in | 0.551 in | |
MFC120A | Natural | LDPE | 0.433 | 0.591 | 0.354 in | Push-Fit | 0.059 in | 0.866 in | 0.314 in | |
MFC190A | Natural | LDPE | 1.299 | 1.457 | 1.181 in | Push-Fit | 0.059 in | 1.339 in | 1.102 in | |
MFC030A | Natural | LDPE | 0.472 in | 0.511 | 0.393 in | Push-Fit | - | 0.866 in | 0.354 in | |
MFC170A | Natural | LDPE | 0.984 | 1.142 | 0.866 in | Push-Fit | 0.059 in | 0.984 in | 0.787 in |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
MFC110A
Color
Natural
Material
LDPE
Inside Diameter
0.394
Flange Diameter
0.551
MFC020A
Color
Natural
Material
LDPE
Inside Diameter
0.433 in
Flange Diameter
0.472
MFC010A
Color
Natural
Material
LDPE
Inside Diameter
0.394 in
Flange Diameter
0.433
MFC140A
Color
Natural
Material
LDPE
Inside Diameter
0.630
Flange Diameter
0.787
Per page:
1–5 of 13
