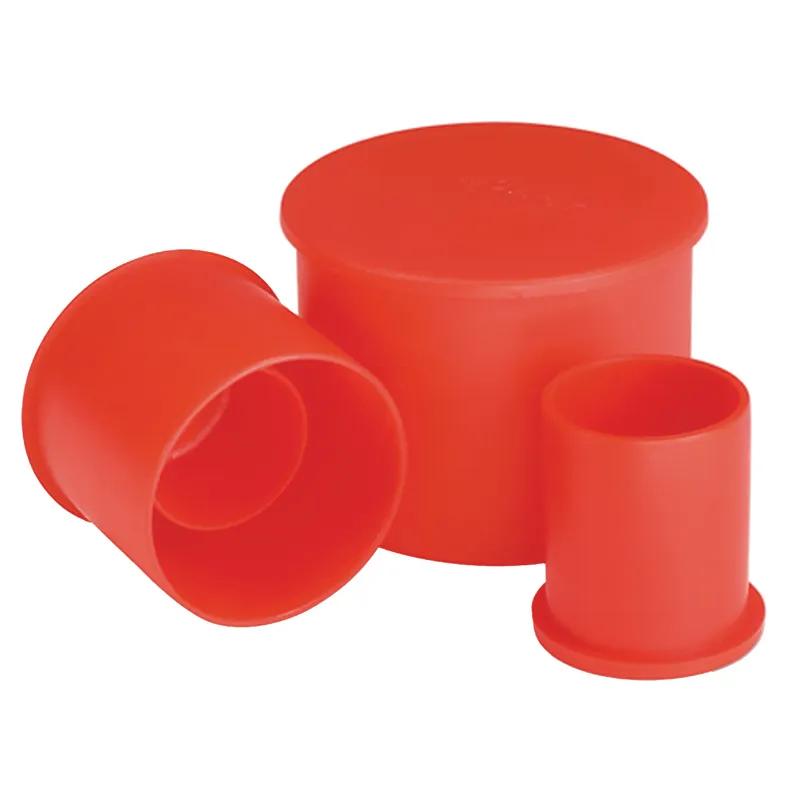

SRM - Tube and Nut Assembly Caps
Showing 1-10 of 15
Per page:1-10 of 15

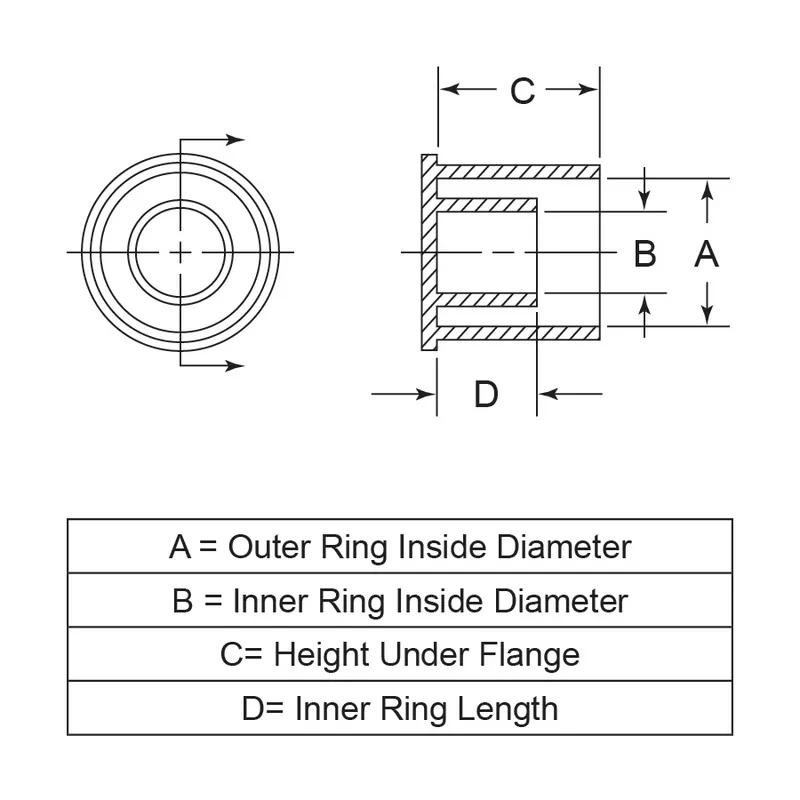

Item Code | Compatible Tube Size | Color | Inner Ring Length | Material | Outer Ring Inside Diameter | Inner Ring Inside Diameter | Height Under Flange | Request Quote |
|---|---|---|---|---|---|---|---|---|
M2A | 1/8 in | Red | 0.400 in | LDPE | 0.391 in | 0.172 in | 0.580 in | |
M10A | 5/8 in | Red | 0.647 in | LDPE | 1.044 in | 0.670 in | 1.030 in | |
M8A | 1/2 in | Red | 0.540 in | LDPE | 0.914 in | 0.567 in | 0.905 in | |
M20A | 1-1/4 in | Red | 0.625 in | LDPE | 2.090 in | 1.320 in | 1.104 in | |
MCA12A | 1/2 in | Red | 0.315 in | LDPE | 0.930 in | 0.450 in | 0.750 in | |
M12A | 3/4 in | Red | 0.643 in | LDPE | 1.324 in | 0.851 in | 1.045 in | |
M5A | 5/16 in | Red | 0.540 in | LDPE | 0.655 in | 0.352 in | 0.810 in | |
M16A | 1.000 in | Red | 0.550 in | LDPE | 1.564 in | 1.060 in | 1.097 in | |
M4A | 1/4 in | Red | 0.380 in | LDPE | 0.606 in | 0.283 in | 0.650 in |
Per page:
1-10 of 15
1–5 of 15 variants
Per page:
M2A
Compatible Tube Size
1/8 in
Color
Red
Inner Ring Length
0.400 in
Material
LDPE
M10A
Compatible Tube Size
5/8 in
Color
Red
Inner Ring Length
0.647 in
Material
LDPE
M8A
Compatible Tube Size
1/2 in
Color
Red
Inner Ring Length
0.540 in
Material
LDPE
M20A
Compatible Tube Size
1-1/4 in
Color
Red
Inner Ring Length
0.625 in
Material
LDPE
Per page:
1–5 of 16
