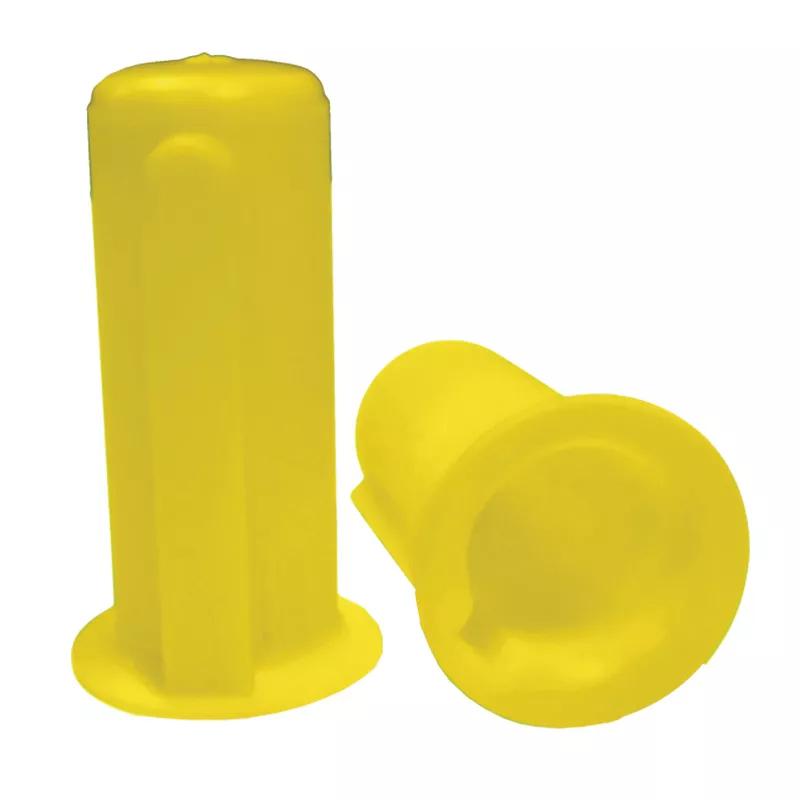

SRDSP - Driveshaft Protection Caps
Showing 1-10 of 20
Per page:1-10 of 20
Item Code | Color | Cap Height | Fitting Style | Material | Overall Diameter | Compatible Drive Shaft Standard | Drive Shaft Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|
DSP467003A | Yellow | 25.0 mm | Push-Fit | LDPE | 14.5 mm | DIN | 9.0 mm | |
DSP467005A | Yellow | 30.0 mm | Push-Fit | LDPE | 17.5 mm | ANSI, DIN | 11.0 mm, 7/16 in | |
DSP467011A | Yellow | 60.0 mm | Push-Fit | LDPE | 35.5 mm | ANSI, SAE, DIN | 22.0 mm, 7/8 in | |
DSP467013A | Yellow | 70.0 mm | Push-Fit | LDPE | 40.0 mm | ANSI, SAE, DIN | 25.0 mm, 1.000 in | |
DSP467014A | Yellow | 70.0 mm | Push-Fit | LDPE | 45.0 mm | ANSI, SAE, DIN | 28.0 mm, 1-1/8 in | |
DSP467008A | Yellow | 50.0 mm | Push-Fit | LDPE | 25.5 mm | ANSI, SAE, DIN | 16.0 mm, 5/8 in | |
DSP467015A | Yellow | 95.0 mm | Push-Fit | LDPE | 48.0 mm | ANSI, DIN | 30.0 mm, 1-3/16 in | |
DSP467006A | Yellow | 35.0 mm | Push-Fit | LDPE | 22.5 mm | ANSI, DIN | 14.0 mm, 9/16 in | |
DSP467010A | Yellow | 60.0 mm | Push-Fit | LDPE | 32.0 mm | ANSI, DIN | 20.0 mm, 13/16 in |
Per page:
1-10 of 20
1–5 of 20 variants
Per page:
DSP467003A
Color
Yellow
Cap Height
25.0 mm
Fitting Style
Push-Fit
Material
LDPE
DSP467005A
Color
Yellow
Cap Height
30.0 mm
Fitting Style
Push-Fit
Material
LDPE
DSP467011A
Color
Yellow
Cap Height
60.0 mm
Fitting Style
Push-Fit
Material
LDPE
DSP467013A
Color
Yellow
Cap Height
70.0 mm
Fitting Style
Push-Fit
Material
LDPE
Per page:
1–5 of 21
