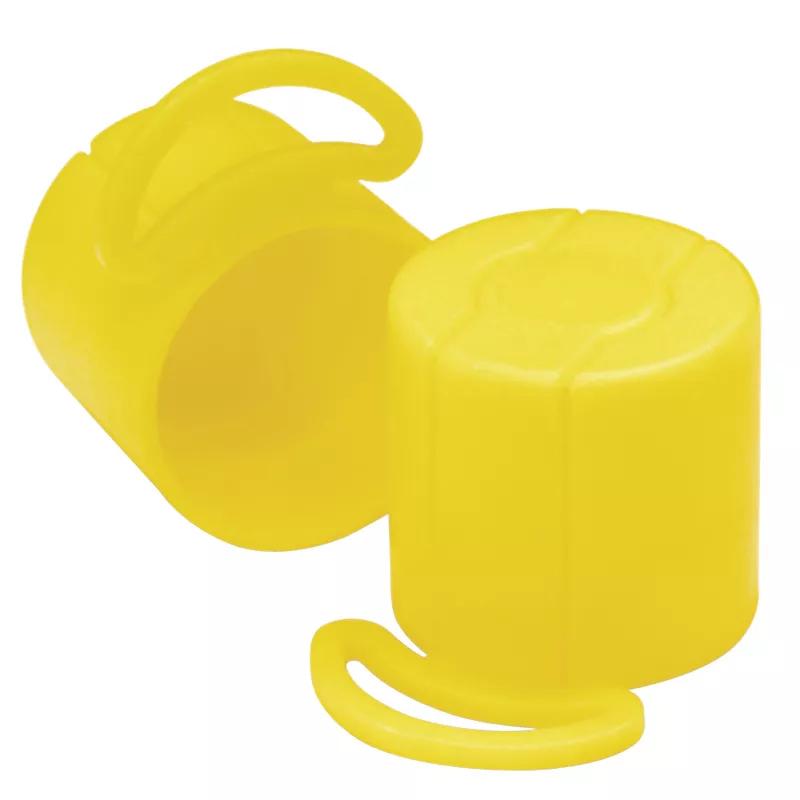

SRTSB - Tear Tab Caps for BSP Threads
Showing 1-7 of 7
Per page:1-7 of 7
Item Code | Color | Inside Height | Fitting Style | Inside Diameter | Fitting Style | Pitch/TPI | Shape | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
TSB10308A | Yellow | 15.0 mm | Side Pull | 21.2 mm | Push-Fit | 14 TPI | Round | 1/2-14 | LDPE | |
TSB12376A | Yellow | 18.0 mm | Side Pull | 34.0 mm | Push-Fit | 11 TPI | Round | #1-11 | LDPE | |
TSB10701A | Yellow | 23.8 mm | Side Pull | 26.3 mm | Push-Fit | 14 TPI | Round | 3/4-14 | LDPE | |
TSB12375A | Yellow | 25.0 mm | Side Pull | 29.5 mm | Push-Fit | 14 TPI | Round | 7/8-14 | LDPE | |
TSB10351A | Yellow | 11.0 mm | Side Pull | 13.0 mm | Push-Fit | 19 TPI | Round | 1/4-19 | LDPE | |
TSB12373A | Yellow | 18.5 mm | Side Pull | 23.0 mm | Push-Fit | 14 TPI | Round | 5/8-14 | LDPE | |
TSB10492A | Yellow | 12.0 mm | Side Pull | 16.0 mm | Push-Fit | 19 TPI | Round | 3/8-19 | LDPE |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
TSB10308A
Color
Yellow
Inside Height
15.0 mm
Fitting Style
Side Pull
Inside Diameter
21.2 mm
TSB12376A
Color
Yellow
Inside Height
18.0 mm
Fitting Style
Side Pull
Inside Diameter
34.0 mm
TSB10701A
Color
Yellow
Inside Height
23.8 mm
Fitting Style
Side Pull
Inside Diameter
26.3 mm
TSB12375A
Color
Yellow
Inside Height
25.0 mm
Fitting Style
Side Pull
Inside Diameter
29.5 mm
Per page:
1–5 of 8
