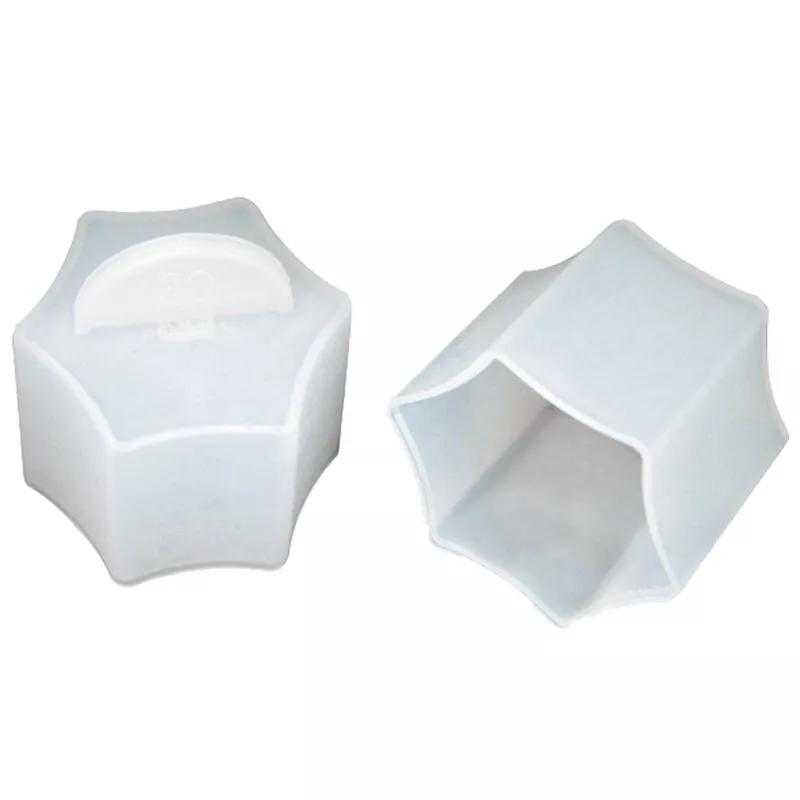

SRHEX - Hexagonal Caps
Showing 1-10 of 17
Per page:1-10 of 17

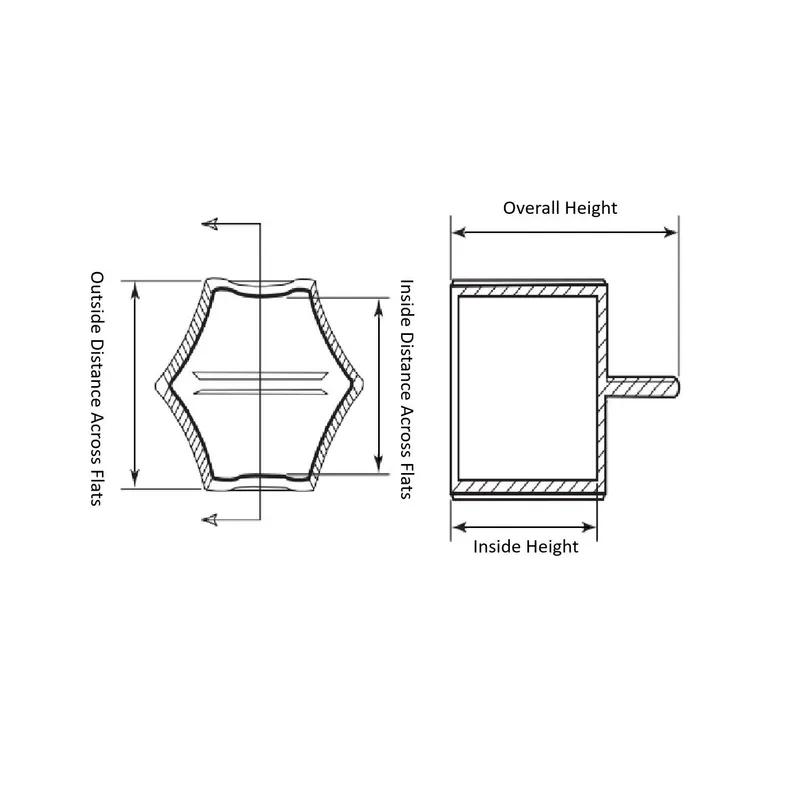

Item Code | Inside Height | Overall Height | Outside Distance Across Flats | Inside Distance Across Flats | Color | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|
HEX105A | 0.709 in | 1.181 in | 0.551 in | 0.539 in | Natural | 7/16 in, M12, 1/8 in | PE | |
HEX120A | 0.984 in | 1.535 in | 0.748 in | 0.736 in | Natural | 9/16 in, M16, 1/4 in | PE | |
HEX155A | 1.181 in | 1.732 in | 1.260 in | 1.244 in | Natural | 1-1/16 in, M26, 3/4 in | PE | |
HEX145A | 1.181 in | 1.732 in | 1.142 in | 1.126 in | Natural | - | PE | |
HEX160A | 1.181 in | 1.732 in | 1.417 in | 1.398 in | Natural | M30 | PE | |
HEX150A | 1.181 in | 1.732 in | 1.181 in | 1.165 in | Natural | M24, 5/8 in | PE | |
HEX110A | 0.787 in | 1.260 in | 0.630 in | 0.618 in | Natural | - | PE | |
HEX115A | 0.787 in | 1.260 in | 0.669 in | 0.657 in | Natural | 1/2 in, M14 | PE | |
HEX135A | 1.102 in | 1.654 in | 0.984 in | 0.969 in | Natural | - | PE |
Per page:
1-10 of 17
1–5 of 17 variants
Per page:
HEX105A
Inside Height
0.709 in
Overall Height
1.181 in
Outside Distance Across Flats
0.551 in
Inside Distance Across Flats
0.539 in
HEX120A
Inside Height
0.984 in
Overall Height
1.535 in
Outside Distance Across Flats
0.748 in
Inside Distance Across Flats
0.736 in
HEX155A
Inside Height
1.181 in
Overall Height
1.732 in
Outside Distance Across Flats
1.260 in
Inside Distance Across Flats
1.244 in
HEX145A
Inside Height
1.181 in
Material
PE
Overall Height
1.732 in
Outside Distance Across Flats
1.142 in
Per page:
1–5 of 18
