SRFCPLUG - Circular Connector Plugs
Showing 1-10 of 13
Per page:1-10 of 13

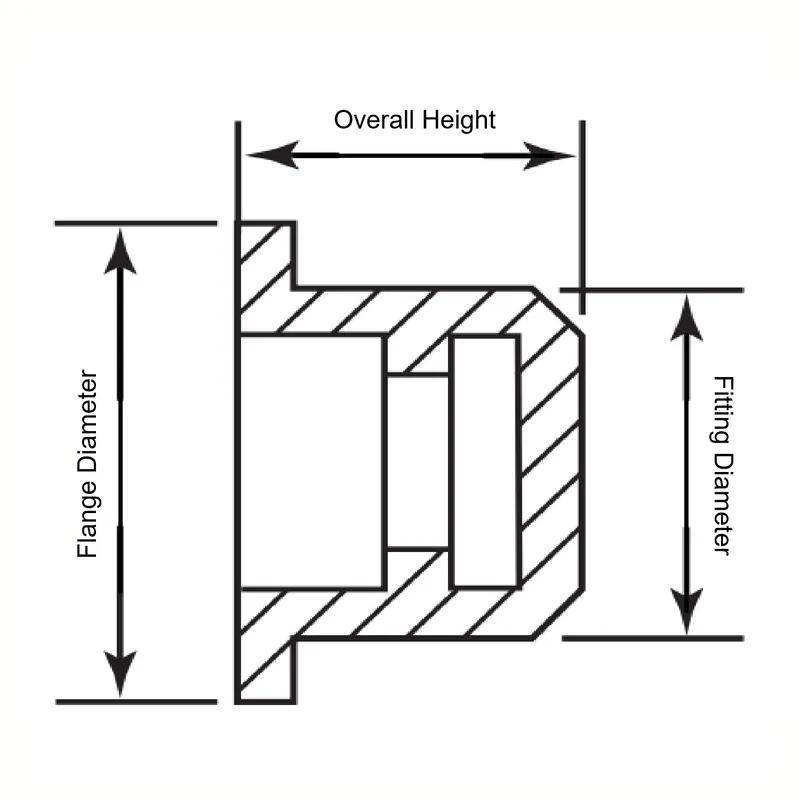

Item Code | Color | Fitting Diameter | Military Specification | Inside Diameter | Flange Diameter | Fitting Style | Flange Thickness | Fitting Height | Thread Size | Material | Overall Height | Pitch/TPI | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FC721A | Yellow | 1.340 in | MIL 90376 | 1.270 in | 1.500 in | Push-Fit | 0.035 in | 0.625 in | 1-3/8-18 | LDPE | 0.660 in | 18 TPI | |
FC735A | Yellow | 2.210 in | MIL 90376 | 2.140 in | 2.340 in | Push-Fit | 0.035 in | 0.625 in | 2-1/4-16 | LDPE | 0.660 in | 16 TPI | |
FC717C | Yellow | 1.088 in | MIL 90376 | 1.028 in | 1.250 in | Push-Fit | 0.035 in | 0.625 in | 1-1/8-18 | LDPE | 0.660 in | 18 TPI | |
FC713B | Yellow | 0.845 in | MIL 90376 | 0.785 in | 1.031 in | Push-Fit | 0.035 in | 0.625 in | 7/8-20 | LDPE | 0.660 in | 20 TPI | |
FC731B | Yellow | 1.970 in | MIL 90376 | 1.890 in | 2.125 in | Push-Fit | 0.035 in | 0.625 in | #2-18 | LDPE | 0.660 in | 18 TPI | |
FC715B | Yellow | 0.963 in | MIL 90376 | 0.893 in | 1.125 in | Push-Fit | 0.035 in | 0.625 in | #1-20 | LDPE | 0.660 in | 20 TPI | |
FC719A | Yellow | 1.215 in | MIL 90376 | 1.150 in | 1.406 in | Push-Fit | 0.035 in | 0.625 in | 1-1/4-18 | LDPE | 0.660 in | 18 TPI | |
FC727C | Yellow | 1.718 in | MIL 90376 | 1.648 in | 1.875 in | Push-Fit | 0.035 in | 0.625 in | 1-3/4-18 | LDPE | 0.660 in | 18 TPI | |
FC723A | Yellow | 1.460 in | MIL 90376 | 1.390 in | 1.640 in | Push-Fit | 0.035 in | 0.625 in | 1-1/2-18 | LDPE | 0.660 in | 18 TPI |
Per page:
1-10 of 13
1–5 of 13 variants
Per page:
FC721A
Color
Yellow
Fitting Diameter
1.340 in
Military Specification
MIL 90376
Inside Diameter
1.270 in
FC735A
Color
Yellow
Fitting Diameter
2.210 in
Military Specification
MIL 90376
Inside Diameter
2.140 in
FC717C
Color
Yellow
Fitting Diameter
1.088 in
Military Specification
MIL 90376
Inside Diameter
1.028 in
FC713B
Color
Yellow
Fitting Diameter
0.845 in
Military Specification
MIL 90376
Inside Diameter
0.785 in
Per page:
1–5 of 14
