SR908 - Swinghandle Latch
Showing 1-10 of 24
Per page:1-10 of 24

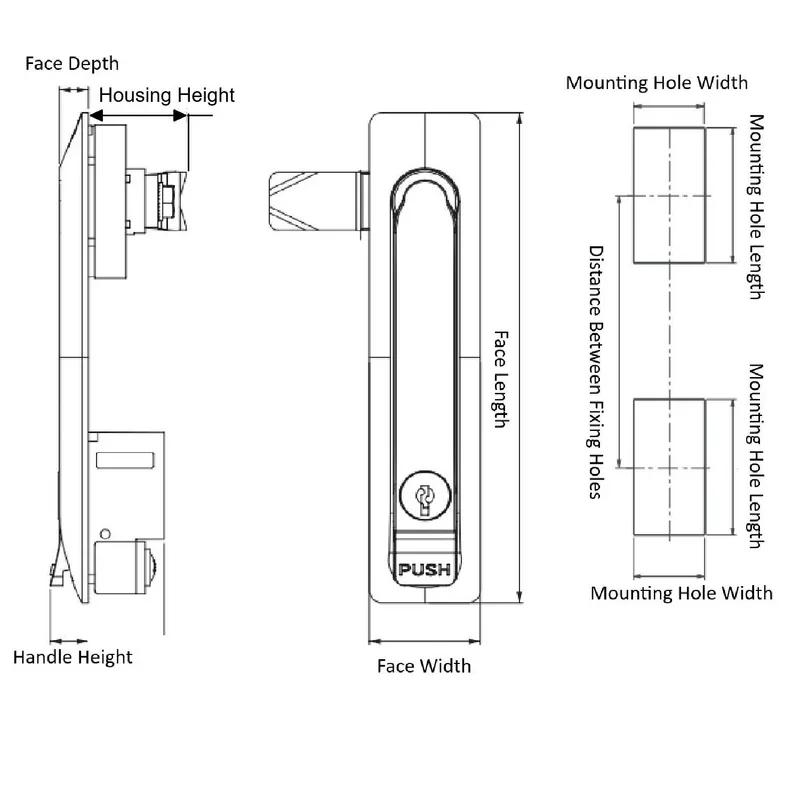

Item Code | Cam Material | Housing Height | Handle Material | Head Height | Coating | Key Type | Seal Material | Handle Length | Color | Lock Type | Face Length | Mounting Orientation | Housing Material | Face Width | Distance Between Fixing Holes | Handle Type | Mounting Hole Width | Dust Cap Material | Face Depth | Handle Width | Handle Height | Mounting Hole Length | Head Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90812110000 | Steel | 18.5 mm | Zinc Alloy | 12.0 mm | Powder-Coated | No Key | PU | 160.0 mm | Silver | Keyless No Cylinder | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key Operated with Push Button | 25.0 mm | Stainless Steel | 9.0 mm | 35.0 mm | 12.0 mm | 50.0 mm | - | |
90812113200 | Steel | 18.5 mm | Zinc Alloy | 12.0 mm | Powder-Coated | Keyed CH751 | PU | 160.0 mm | Silver | - | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key Operated with Push Button | 25.0 mm | Stainless Steel | 9.0 mm | 35.0 mm | 12.0 mm | 50.0 mm | - | |
90812110700 | Steel | 18.5 mm | Zinc Alloy | 12.0 mm | Powder-Coated | Keyed CH751 | PU | 160.0 mm | Silver | - | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key Operated with Push Button | 25.0 mm | Stainless Steel | 9.0 mm | 35.0 mm | 12.0 mm | 50.0 mm | - | |
90811110700 | Steel | 18.5 mm | Zinc Alloy | 12.0 mm | Chrome-Plated | Keyed CH751 | PU | 160.0 mm | Silver | - | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key Operated with Push Button | 25.0 mm | Stainless Steel | 9.0 mm | 35.0 mm | 12.0 mm | 50.0 mm | - | |
90812122000 | Steel | 18.5 mm | Zinc Alloy | 12.0 mm | Powder-Coated | Keyed Alike | PU | 160.0 mm | Black | Keyed Alike, High-Security | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key Operated with Push Button | 25.0 mm | Stainless Steel | 9.0 mm | 35.0 mm | 12.0 mm | 50.0 mm | - | |
90812112000 | Steel | 18.5 mm | Zinc Alloy | 12.0 mm | Powder-Coated | Keyed Alike | PU | 160.0 mm | Silver | Keyed Alike, High-Security | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key Operated with Push Button | 25.0 mm | Stainless Steel | 9.0 mm | 35.0 mm | 12.0 mm | 50.0 mm | - | |
90812120000 | Steel | 18.5 mm | Zinc Alloy | 12.0 mm | Powder-Coated | No Key | PU | 160.0 mm | Black | Keyless No Cylinder | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key Operated with Push Button | 25.0 mm | Stainless Steel | 9.0 mm | 35.0 mm | 12.0 mm | 50.0 mm | - | |
90811121500 | Steel | 18.5 mm | Zinc Alloy | 12.0 mm | Chrome-Plated | 5.0 mm Double Bit Key | PU | 160.0 mm | Black | - | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key Operated with Push Button | 25.0 mm | Stainless Steel | 9.0 mm | 35.0 mm | 12.0 mm | 50.0 mm | 5.0 mm Double Bit | |
90812120700 | Steel | 18.5 mm | Zinc Alloy | 12.0 mm | Powder-Coated | Keyed CH751 | PU | 160.0 mm | Black | - | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key Operated with Push Button | 25.0 mm | Stainless Steel | 9.0 mm | 35.0 mm | 12.0 mm | 50.0 mm | - |
Per page:
1-10 of 24
1–5 of 24 variants
Per page:
90812110000
Cam Material
Steel
Housing Height
18.5 mm
Handle Material
Zinc Alloy
Head Height
12.0 mm
90812113200
Cam Material
Steel
Housing Height
18.5 mm
Handle Material
Zinc Alloy
Head Height
12.0 mm
90812110700
Cam Material
Steel
Housing Height
18.5 mm
Handle Material
Zinc Alloy
Head Height
12.0 mm
90811110700
Cam Material
Steel
Housing Height
18.5 mm
Handle Material
Zinc Alloy
Head Height
12.0 mm
