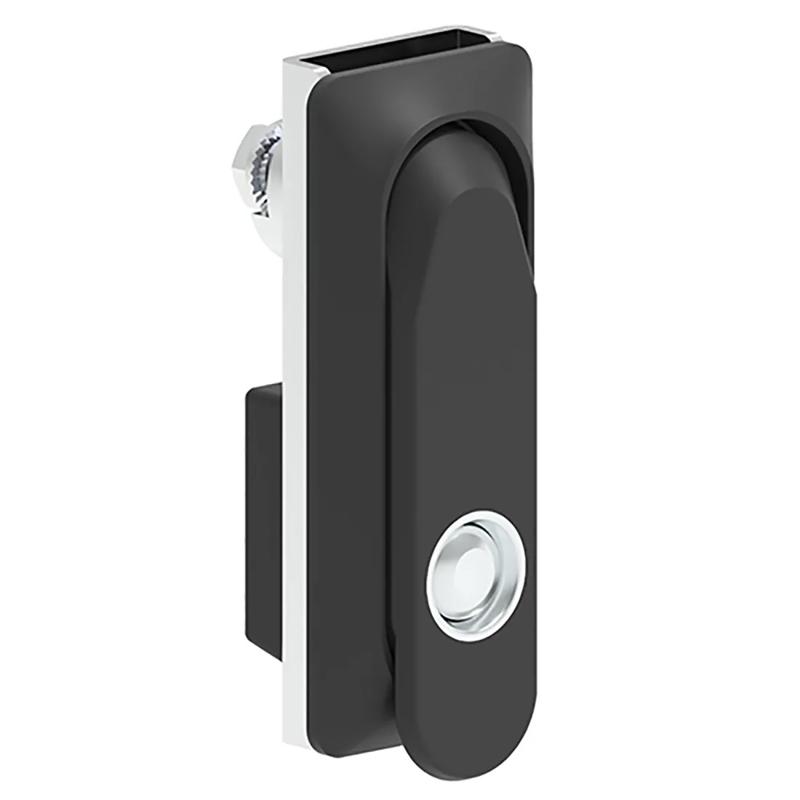

SR708 - Push Button Swinghandle Latch
Showing 1-3 of 3
Per page:1-3 of 3

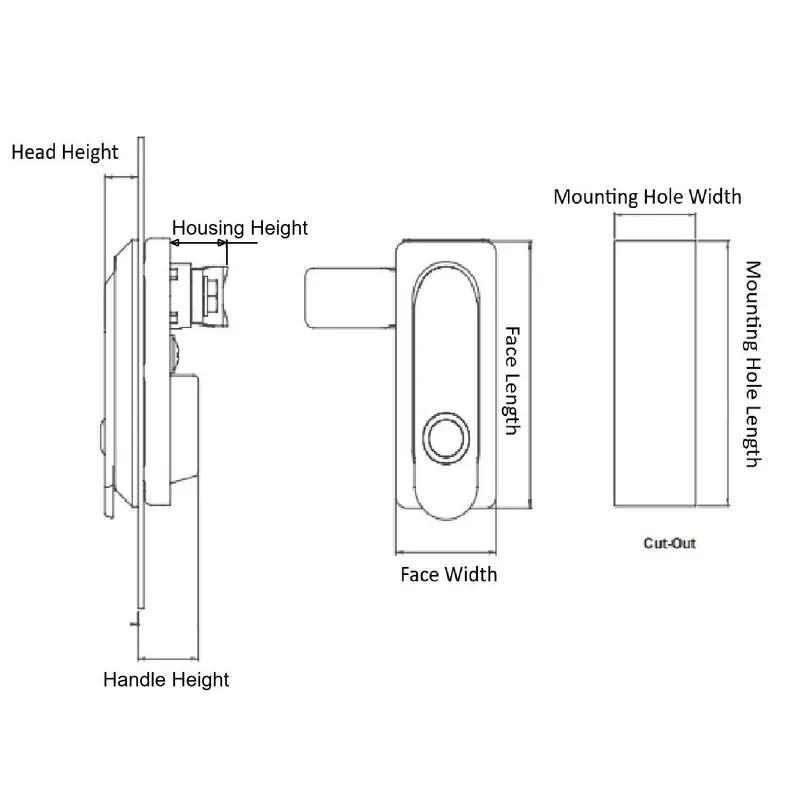

Item Code | Housing Height | Face Width | Handle Material | Button Material | Head Height | Key Type | Handle Width | Seal Material | Handle Color | Handle Length | Color | Face Length | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Handle Height | Mounting Hole Length | Finish | Lock Type | Cylinder Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
708201100 | 18.5 mm | 35.0 mm | 30% Glass Fibre Nylon 6 | Zinc Alloy | 11.5 mm | No Key | 35.0 mm | PU | Black | 85.0 mm | Black | 85.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle Push-Button | 25.0 mm | 11.5 mm | 75.0 mm | - | - | - | |
708201200 | 18.5 mm | 35.0 mm | 30% Glass Fibre Nylon 6 | Zinc Alloy | 11.5 mm | No Key | 35.0 mm | PU | Black | 85.0 mm | Black | 85.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle Push-Button | 25.0 mm | 11.5 mm | 75.0 mm | Powder-Coated | - | - | |
7082020300 | 18.5 mm | 35.0 mm | 30% Glass Fibre Nylon 6 | - | 11.5 mm | Keyed Alike | 35.0 mm | PU | Black | 85.0 mm | Black | 85.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle Key-Operated | 25.0 mm | 11.5 mm | 75.0 mm | - | Keyed Alike | Zinc Alloy |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
708201100
Housing Height
18.5 mm
Face Width
35.0 mm
Handle Material
30% Glass Fibre Nylon 6
Button Material
Zinc Alloy
708201200
Housing Height
18.5 mm
Face Width
35.0 mm
Handle Material
30% Glass Fibre Nylon 6
Button Material
Zinc Alloy
7082020300
Housing Height
18.5 mm
Handle Material
30% Glass Fibre Nylon 6
Head Height
11.5 mm
Key Type
Keyed Alike
