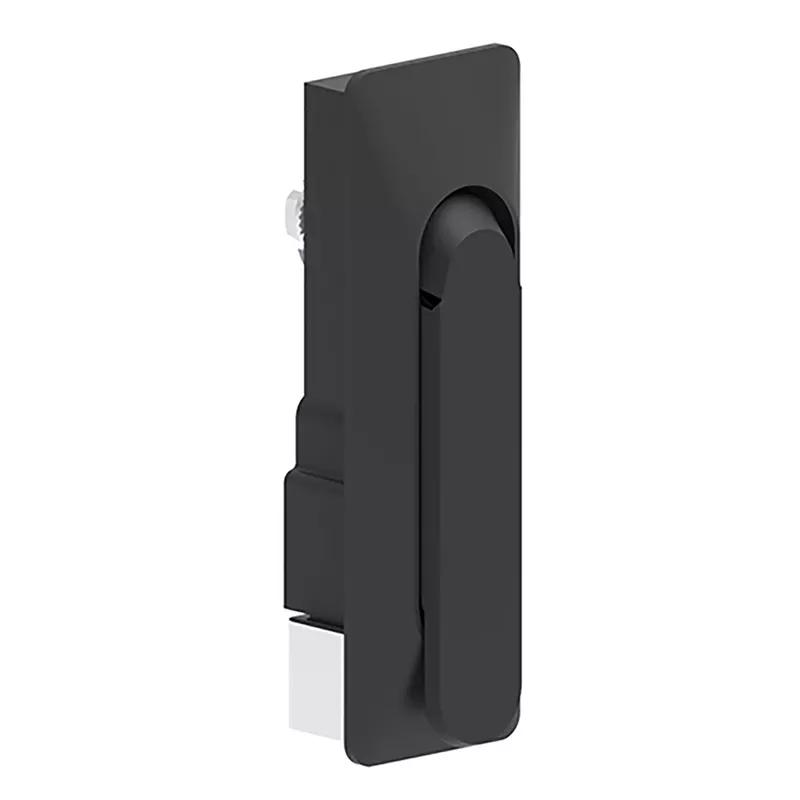

SR318 - Small Swinghandle Latches
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Housing Height | Face Width | Coating | Key Type | Handle Width | Handle Length | Mounting Hole Length | Color | Lock Type | Face Length | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Maximum Compatible Door Thickness | Finish | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
31812200 | 18.5 mm | 35.0 mm | Powder-Coated | No Key | 35.0 mm | 110.0 mm | 100.0 mm | Black | Keyless | 110.0 mm | Universal | Zinc Alloy | Small Swinghandle | 25.0 mm | 2.0 mm | - | |
31811200 | 18.5 mm | 35.0 mm | Chrome-Plated | No Key | 35.0 mm | 110.0 mm | 100.0 mm | Black | Keyless | 110.0 mm | Universal | Zinc Alloy | Small Swinghandle | 25.0 mm | 2.0 mm | Powder-Coated | |
31820200 | 18.5 mm | 35.0 mm | - | No Key | 35.0 mm | 110.0 mm | 100.0 mm | Black | Keyless | 110.0 mm | Universal | Nylon | Small Swinghandle | 25.0 mm | 2.0 mm | - |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
31812200
Housing Height
18.5 mm
Face Width
35.0 mm
Coating
Powder-Coated
Key Type
No Key
31811200
Housing Height
18.5 mm
Face Width
35.0 mm
Coating
Chrome-Plated
Finish
Powder-Coated
31820200
Housing Height
18.5 mm
Face Width
35.0 mm
Key Type
No Key
Handle Width
35.0 mm
