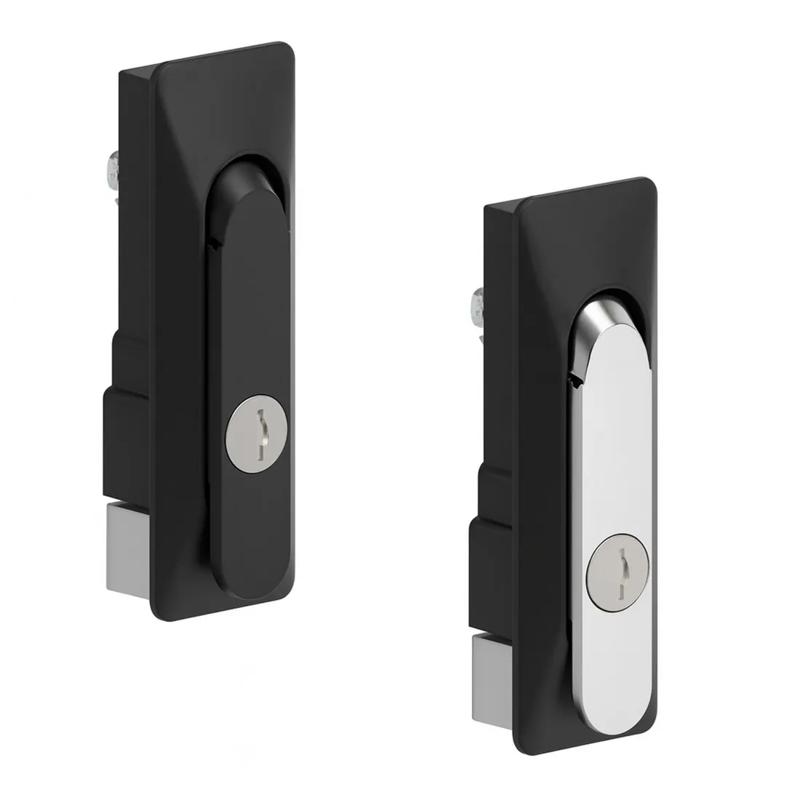

SR308 - Small Swinghandle Latches
Showing 1-5 of 5
Per page:1-5 of 5

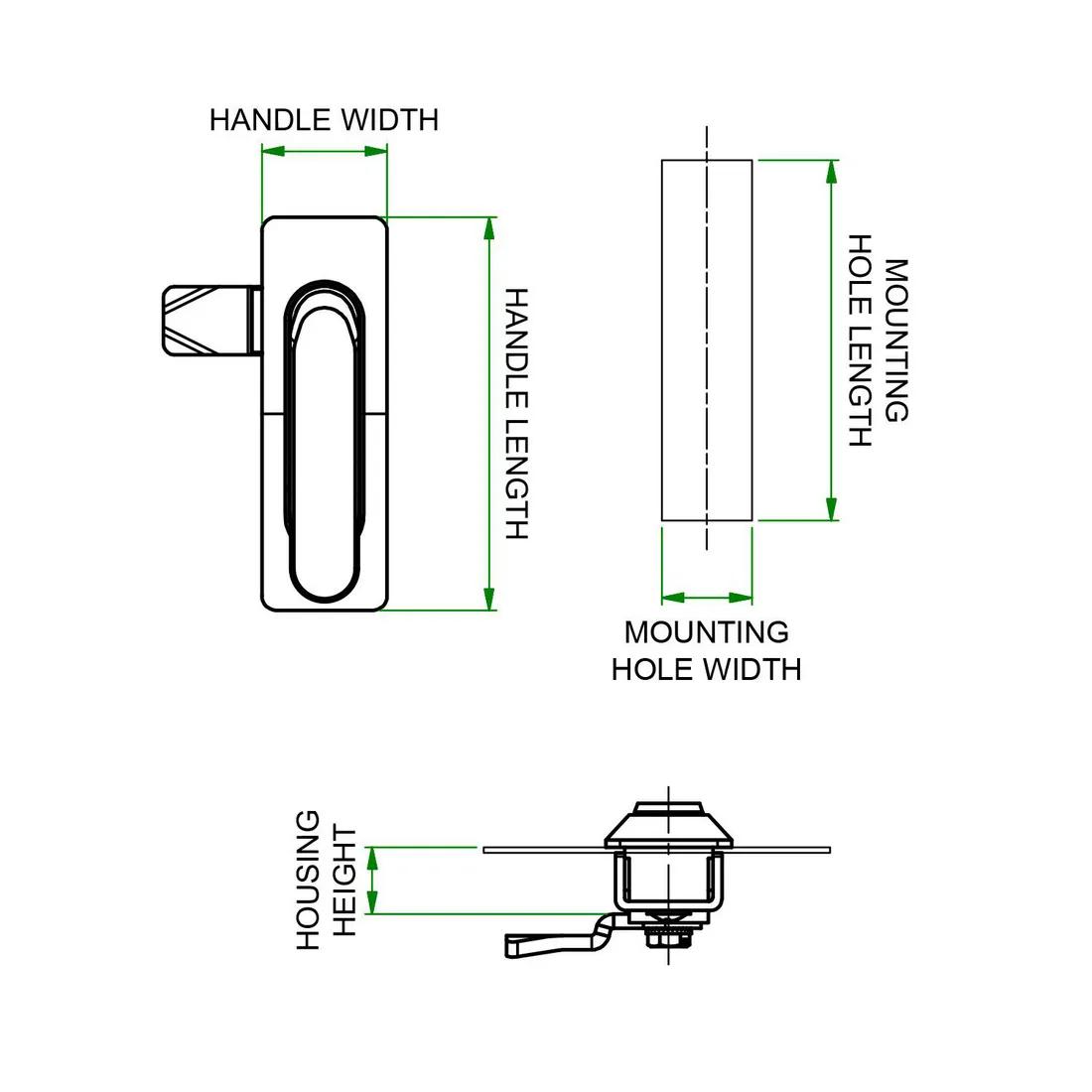

Item Code | Housing Height | Face Width | Handle Material | Head Height | Finish | Key Type | Handle Width | Seal Material | Handle Length | Color | Lock Type | Face Length | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Maximum Compatible Door Thickness | Handle Height | Mounting Hole Length | Coating | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3081120300 | 18.5 mm | 35.0 mm | Zinc Alloy | 12.0 mm | Chrome Plated | Keyed Alike | 35.0 mm | PU | 110.0 mm | Silver | Keyed Alike | 110.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle Key-Operated | 25.0 mm | 2.0 mm | 12.0 mm | 100.0 mm | - | |
3082020300 | 18.5 mm | 35.0 mm | Nylon | 12.0 mm | - | Keyed Alike | 35.0 mm | PU | 110.0 mm | Black | Keyed Alike | 110.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle Key-Operated | 25.0 mm | 2.0 mm | 12.0 mm | 100.0 mm | - | |
3082023200 | 18.5 mm | 35.0 mm | Nylon | 12.0 mm | - | Keyed To Differ | 35.0 mm | PU | 110.0 mm | Black | Keyed to Differ | 110.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle Key-Operated | 25.0 mm | 2.0 mm | 12.0 mm | 100.0 mm | - | |
3081220300 | 18.5 mm | 35.0 mm | Zinc Alloy | 12.0 mm | - | Keyed Alike | 35.0 mm | PU | 110.0 mm | Black | Keyed Alike | 110.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle Key-Operated | 25.0 mm | 2.0 mm | 12.0 mm | 100.0 mm | Chrome-Plated | |
3081223200 | 18.5 mm | 35.0 mm | Zinc Alloy | 12.0 mm | - | Keyed To Differ | 35.0 mm | PU | 110.0 mm | Black | Keyed to Differ | 110.0 mm | Universal | 30% Glass Fibre Nylon 6 | Swinghandle Key-Operated | 25.0 mm | 2.0 mm | 12.0 mm | 100.0 mm | Powder-Coated |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
3081120300
Housing Height
18.5 mm
Face Width
35.0 mm
Handle Material
Zinc Alloy
Head Height
12.0 mm
3082020300
Housing Height
18.5 mm
Face Width
35.0 mm
Handle Material
Nylon
Head Height
12.0 mm
3082023200
Housing Height
18.5 mm
Face Width
35.0 mm
Handle Material
Nylon
Head Height
12.0 mm
3081220300
Housing Height
18.5 mm
Face Width
35.0 mm
Handle Material
Zinc Alloy
Head Height
12.0 mm
Per page:
1–5 of 6
