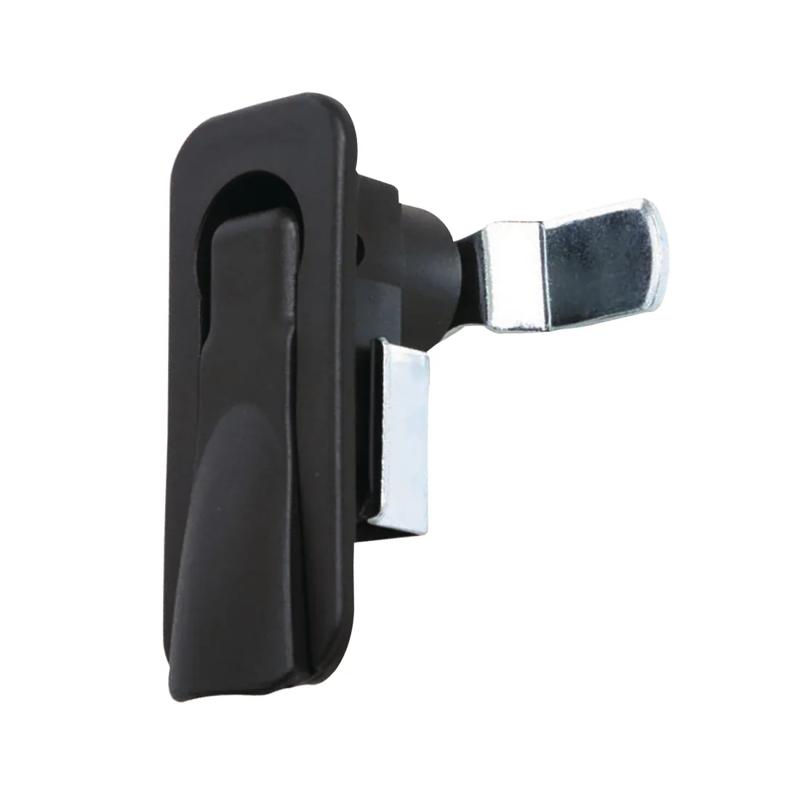

SR219 - Swinghandle Rod Controlling
Showing 1-1 of 1
Per page:1-1 of 1

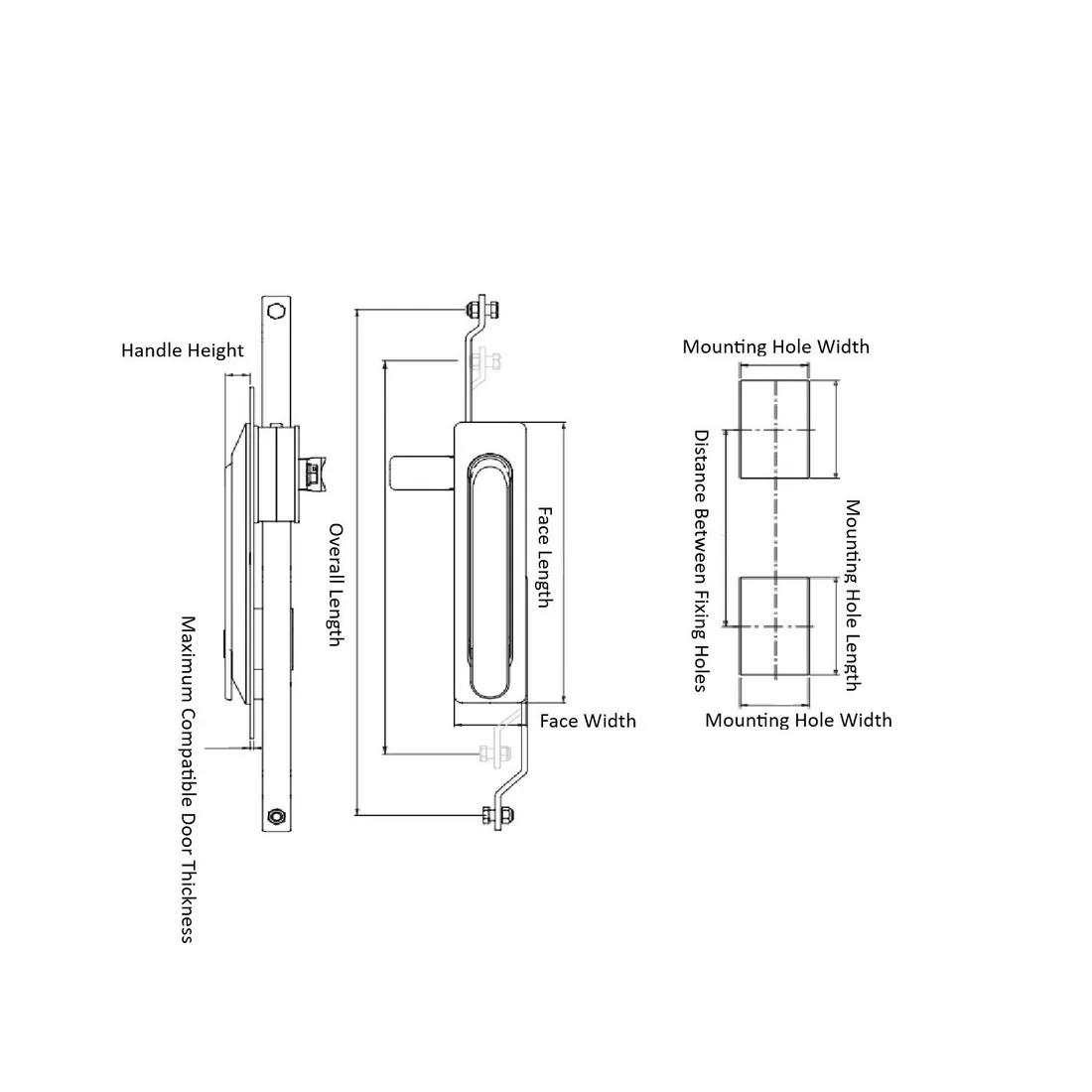

Item Code | Housing Height | Handle Material | Head Height | Coating | Finish | Key Type | Handle Width | Handle Length | Color | Lock Type | Face Length | Mounting Orientation | Housing Material | Face Width | Distance Between Fixing Holes | Handle Type | Mounting Hole Width | Maximum Compatible Door Thickness | Handle Height | Mounting Hole Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2191200 | 25.0 mm | Zinc Alloy | 12.0 mm | Powder-Coated | Black Powder-Coated | No Key | 35.0 mm | 160.0 mm | Black | Keyless | 160.0 mm | Universal | Zinc Alloy | 35.0 mm | 100.0 mm | Swinghandle Key-Operated | 25.0 mm | 2.0 mm | 12.0 mm | 50.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
2191200
Housing Height
25.0 mm
Handle Material
Zinc Alloy
Head Height
12.0 mm
Coating
Powder-Coated
