SR99 - Surface Mount Hinges
Showing 1-10 of 21
Per page:1-10 of 21

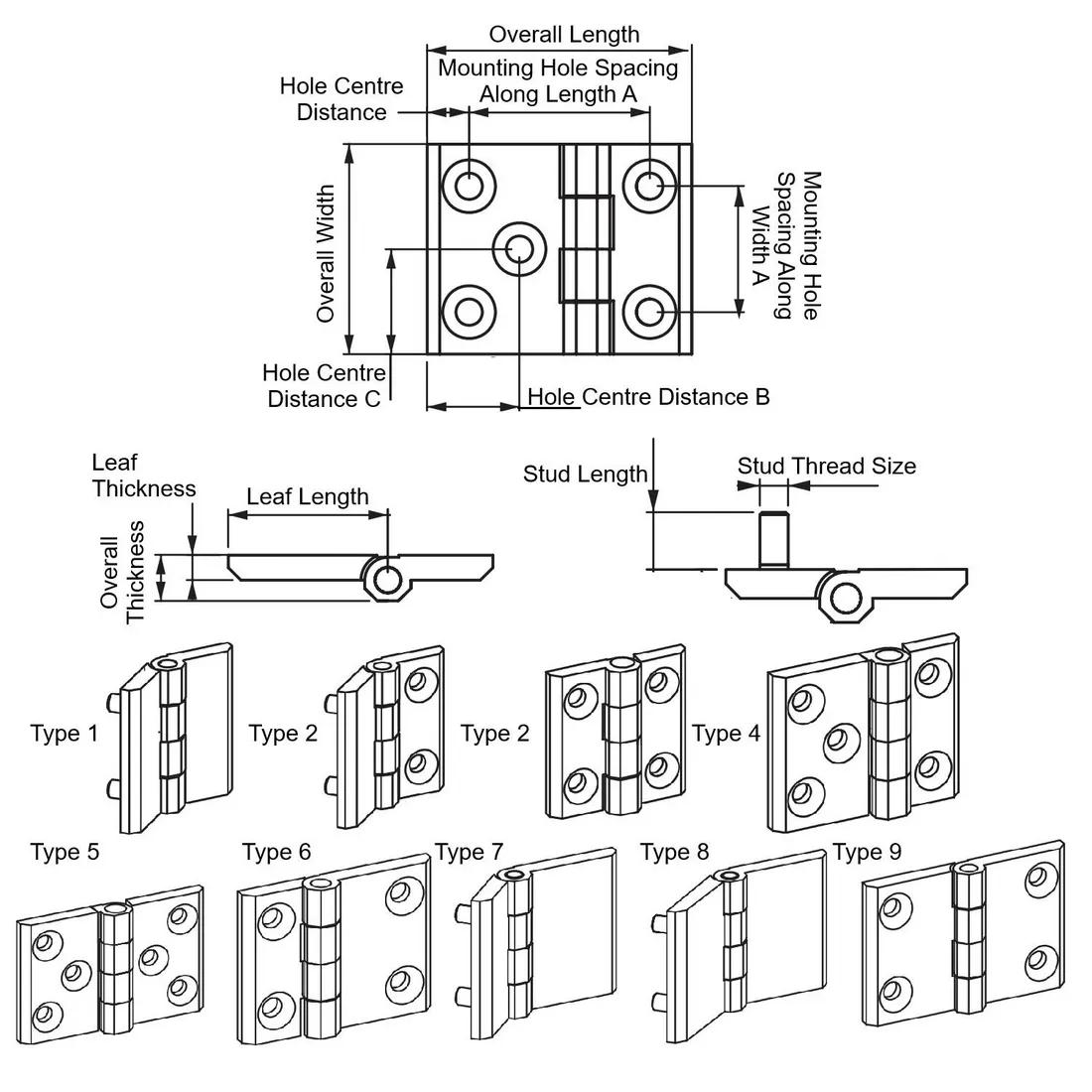

Item Code | Mounting Hole Spacing Along Width A | Overall Width | Overall Length | Overall Thickness | Body Material | Leaf Thickness | Type | Finish | Mounting Hole Spacing Along Length A | Maximum Rotation | Hinge Type | Mounting Method | Removability | Leaf Width | Stud Length | Stud Thread Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
099404 | 30.0 mm | 50.0 mm | 50.0 mm | 11.0 mm | Stainless Steel | 6.0 mm | 3 | Electropolished | 30.0 mm | 270 ° | - | - | - | - | - | - | |
099116 | 30.0 mm | 50.0 mm | 76.0 mm | 11.0 mm | Zinc Alloy | 6.0 mm | 5 | Chrome Plated | 56.0 mm | 270 ° | Butt Hinge | Fastener Nuts, Screw/Bolts | Fixed | - | - | - | |
099125 | 30.0 mm | 50.0 mm | 63.0 mm | 11.0 mm | Zinc Alloy | 6.0 mm | 4 | Black Powder-Coated | 43.0 mm | 270 ° | Butt Hinge | Fastener Nuts, Screw/Bolts | Fixed | 38.0 mm | - | - | |
099115 | 30.0 mm | 50.0 mm | 63.0 mm | 11.0 mm | Zinc Alloy | 6.0 mm | 4 | Chrome Plated | 43.0 mm | 270 ° | Butt Hinge | Fastener Nuts, Screw/Bolts | Fixed | 38.0 mm | - | - | |
099117 | 30.0 mm | 50.0 mm | 63.0 mm | 11.0 mm | Zinc Alloy | 6.0 mm | 6 | Chrome Plated | 43.0 mm | 270 ° | Butt Hinge | Fastener Nuts, Screw/Bolts | Fixed | - | - | - | |
099114 | 30.0 mm | 50.0 mm | 50.0 mm | 11.0 mm | Zinc Alloy | 6.0 mm | 3 | Chrome Plated | 30.0 mm | 270 ° | Butt Hinge | Fastener Nuts, Screw/Bolts | Fixed | - | - | - | |
099126 | 30.0 mm | 50.0 mm | 76.0 mm | 11.0 mm | Zinc Alloy | 6.0 mm | 5 | Black Powder-Coated | 56.0 mm | 270 ° | Butt Hinge | Fastener Nuts, Screw/Bolts | Fixed | - | - | - | |
099124 | 30.0 mm | 50.0 mm | 50.0 mm | 11.0 mm | Zinc Alloy | 6.0 mm | 3 | Black Powder-Coated | 30.0 mm | 270 ° | Butt Hinge | Fastener Nuts, Screw/Bolts | Fixed | - | - | - | |
099127 | 30.0 mm | 50.0 mm | 63.0 mm | 11.0 mm | Zinc Alloy | 6.0 mm | 6 | Black Powder-Coated | 43.0 mm | 270 ° | Butt Hinge | Fastener Nuts, Screw/Bolts | Fixed | - | - | - |
Per page:
1-10 of 21
1–5 of 21 variants
Per page:
099404
Mounting Hole Spacing Along Width A
30.0 mm
Overall Width
50.0 mm
Overall Length
50.0 mm
Overall Thickness
11.0 mm
099116
Mounting Hole Spacing Along Width A
30.0 mm
Overall Width
50.0 mm
Overall Length
76.0 mm
Overall Thickness
11.0 mm
099125
Mounting Hole Spacing Along Width A
30.0 mm
Overall Width
50.0 mm
Overall Length
63.0 mm
Overall Thickness
11.0 mm
099115
Mounting Hole Spacing Along Width A
30.0 mm
Overall Width
50.0 mm
Overall Length
63.0 mm
Overall Thickness
11.0 mm
Per page:
1–5 of 22
