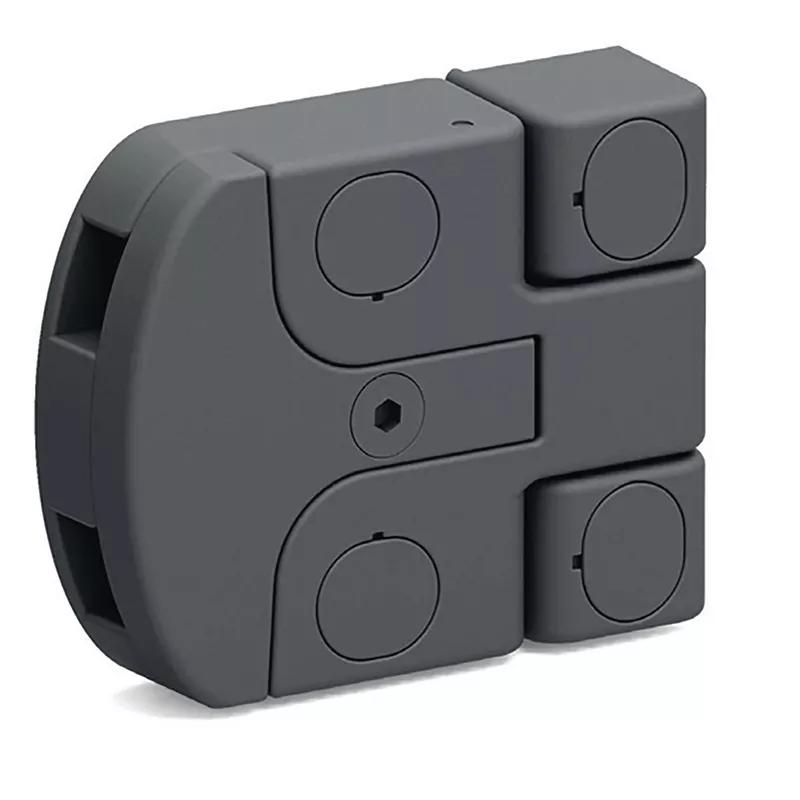

SR712 - Surface Mount Hinge - Lift-Off Latch/Lock
Showing 1-1 of 1
Per page:1-1 of 1

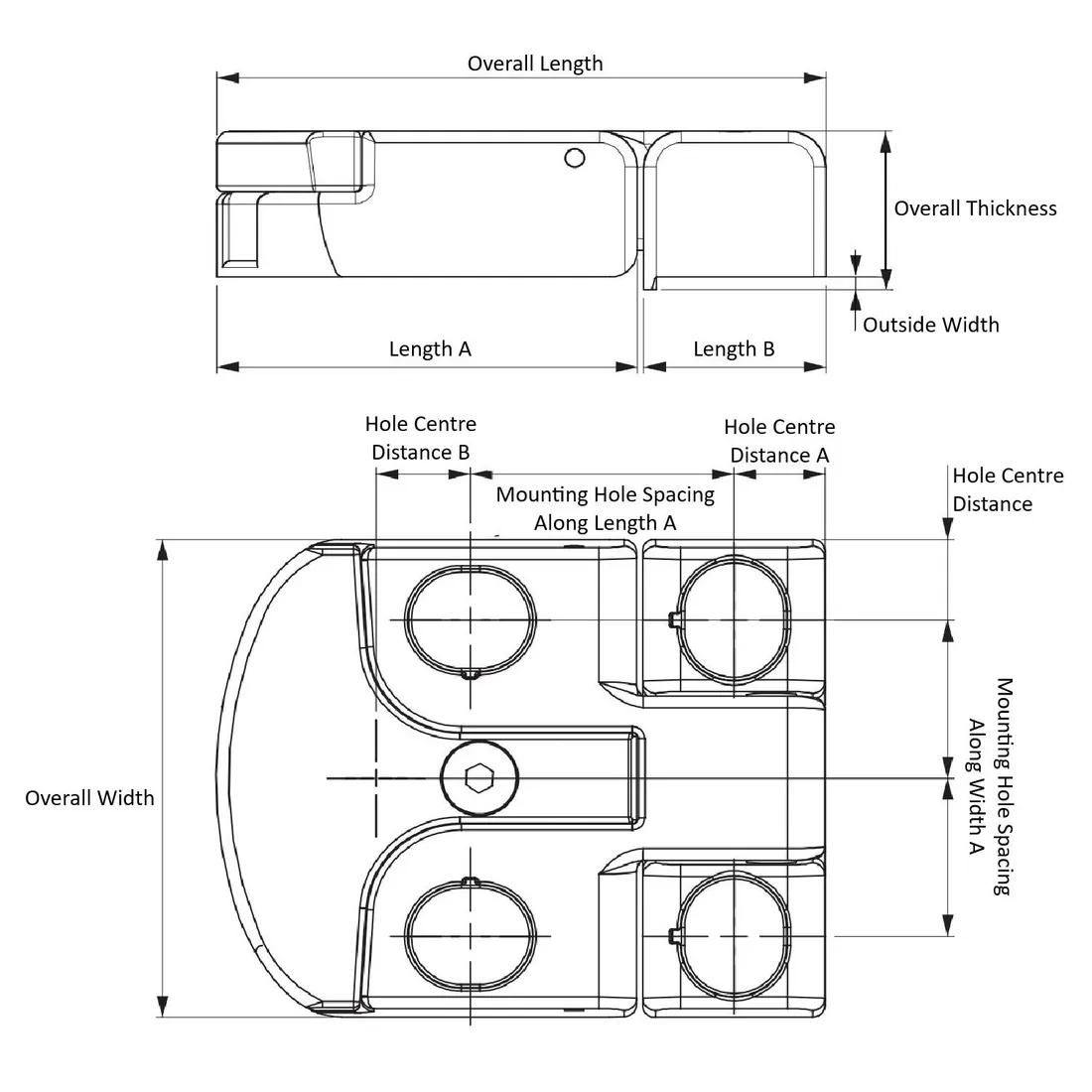

Item Code | Mounting Method | Color | Overall Width | Overall Length | Overall Thickness | Hinge Type | Length A | Mounting Hole Spacing Along Width A | Thread Size | Material | Mounting Hole Spacing Along Length A | Maximum Rotation | Length B | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
71220M | Fastener Screw/Bolts | Black | 78.6 mm | 97.0 mm | 26.0 mm | Left-Handed | 67.0 mm | 26.0 mm, 26.0 mm | M8 | 30% Glass Fibre Nylon | 42.0 mm | 180 ° | 29.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
71220M
Mounting Method
Fastener Screw/Bolts
Color
Black
Overall Width
78.6 mm
Overall Length
97.0 mm
