SR699 - Surface Mount Hinge - Lift-Off
Showing 1-8 of 8
Per page:1-8 of 8

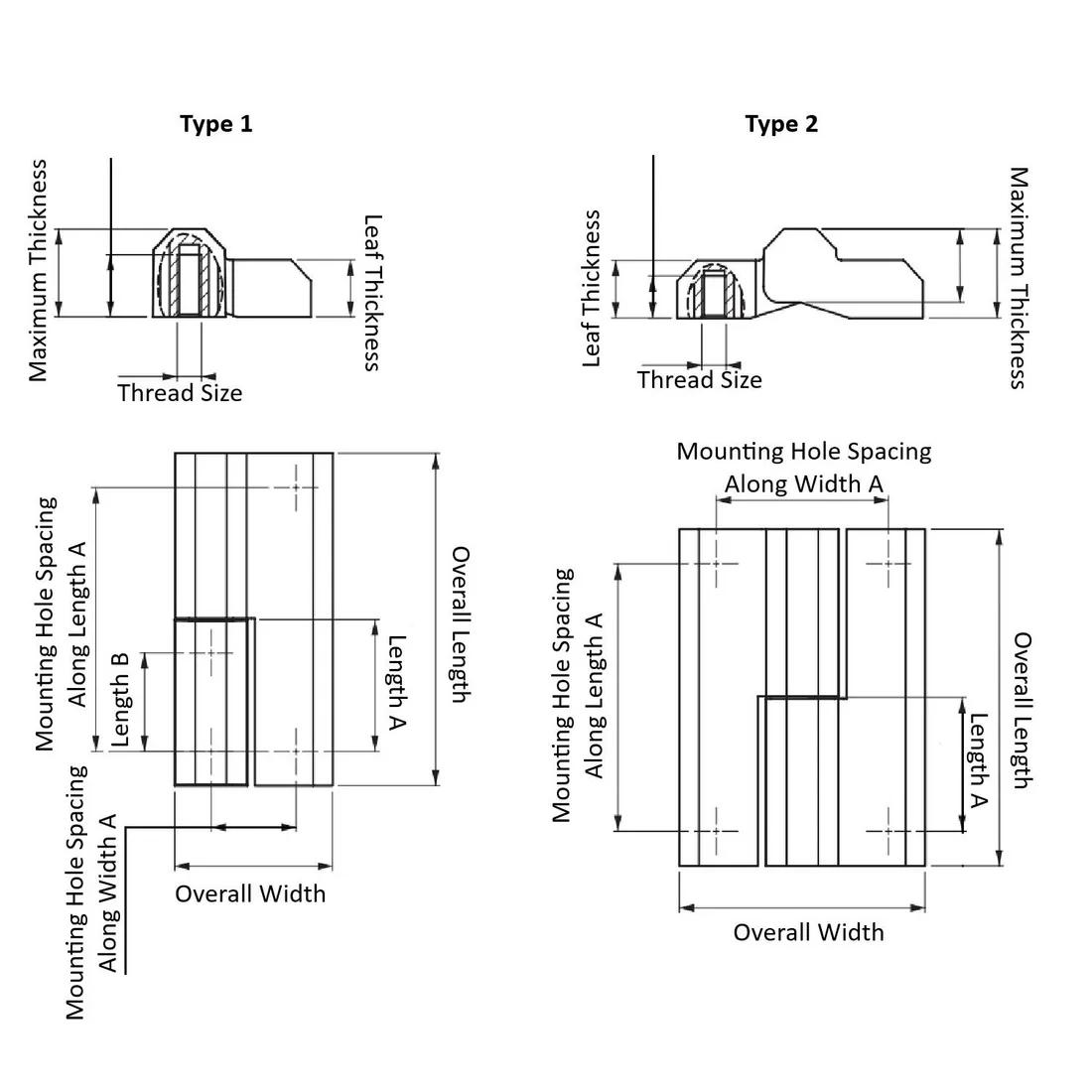

Item Code | Mounting Method | Overall Width | Overall Length | Pin Material | Finish | Leaf Thickness | Hinge Type | Maximum Thickness | Type | Length A | Mounting Hole Spacing Along Width A | Thread Size | Material | Mounting Hole Spacing Along Length A | Maximum Rotation | Length B | Minimum Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
699111002 | Fastener Nuts | 32.5 mm | 64.0 mm | Stainless Steel | Chrome Plated | 11.0 mm | Left-Handed | 17.0 mm | 1 | 25.5 mm | 17.5 mm | M5 | Zinc Alloy | 51.0 mm | 180 ° | 19.0 mm | - | |
699112002 | Fastener Nuts | 50.0 mm | 64.0 mm | Stainless Steel | Chrome Plated | 11.0 mm | Left-Handed | 17.0 mm | 2 | 25.5 mm | 35.0 mm | M5 | Zinc Alloy | 51.0 mm | 180 ° | - | 14.0 mm | |
699121001 | Fastener Nuts | 32.5 mm | 64.0 mm | Stainless Steel | Black Powder-Coated | 11.0 mm | Right-Handed | 17.0 mm | 1 | 25.5 mm | 17.5 mm | M5 | Zinc Alloy | 51.0 mm | 180 ° | 19.0 mm | - | |
699112001 | Fastener Nuts | 50.0 mm | 64.0 mm | Stainless Steel | Chrome Plated | 11.0 mm | Right-Handed | 17.0 mm | 2 | 25.5 mm | 35.0 mm | M5 | Zinc Alloy | 51.0 mm | 180 ° | - | 14.0 mm | |
699111001 | Fastener Nuts | 32.5 mm | 64.0 mm | Stainless Steel | Chrome Plated | 11.0 mm | Right-Handed | 17.0 mm | 1 | 25.5 mm | 17.5 mm | M5 | Zinc Alloy | 51.0 mm | 180 ° | 19.0 mm | - | |
699121002 | Fastener Nuts | 32.5 mm | 64.0 mm | Stainless Steel | Black Powder-Coated | 11.0 mm | Left-Handed | 17.0 mm | 1 | 25.5 mm | 17.5 mm | M5 | Zinc Alloy | 51.0 mm | 180 ° | 19.0 mm | - | |
699122001 | Fastener Nuts | 50.0 mm | 64.0 mm | Stainless Steel | Black Powder-Coated | 11.0 mm | Right-Handed | 17.0 mm | 2 | 25.5 mm | 35.0 mm | M5 | Zinc Alloy | 51.0 mm | 180 ° | - | 14.0 mm | |
699122002 | Fastener Nuts | 50.0 mm | 64.0 mm | Stainless Steel | Black Powder-Coated | 11.0 mm | Left-Handed | 17.0 mm | 2 | 25.5 mm | 35.0 mm | M5 | Zinc Alloy | 51.0 mm | 180 ° | - | 14.0 mm |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
699111002
Mounting Method
Fastener Nuts
Overall Width
32.5 mm
Overall Length
64.0 mm
Pin Material
Stainless Steel
699112002
Overall Width
50.0 mm
Overall Length
64.0 mm
Pin Material
Stainless Steel
Finish
Chrome Plated
699121001
Mounting Method
Fastener Nuts
Overall Width
32.5 mm
Overall Length
64.0 mm
Pin Material
Stainless Steel
699112001
Overall Width
50.0 mm
Overall Length
64.0 mm
Pin Material
Stainless Steel
Finish
Chrome Plated
Per page:
1–5 of 9
