SR693 - Side Mount Hinge
Showing 1-4 of 4
Per page:1-4 of 4

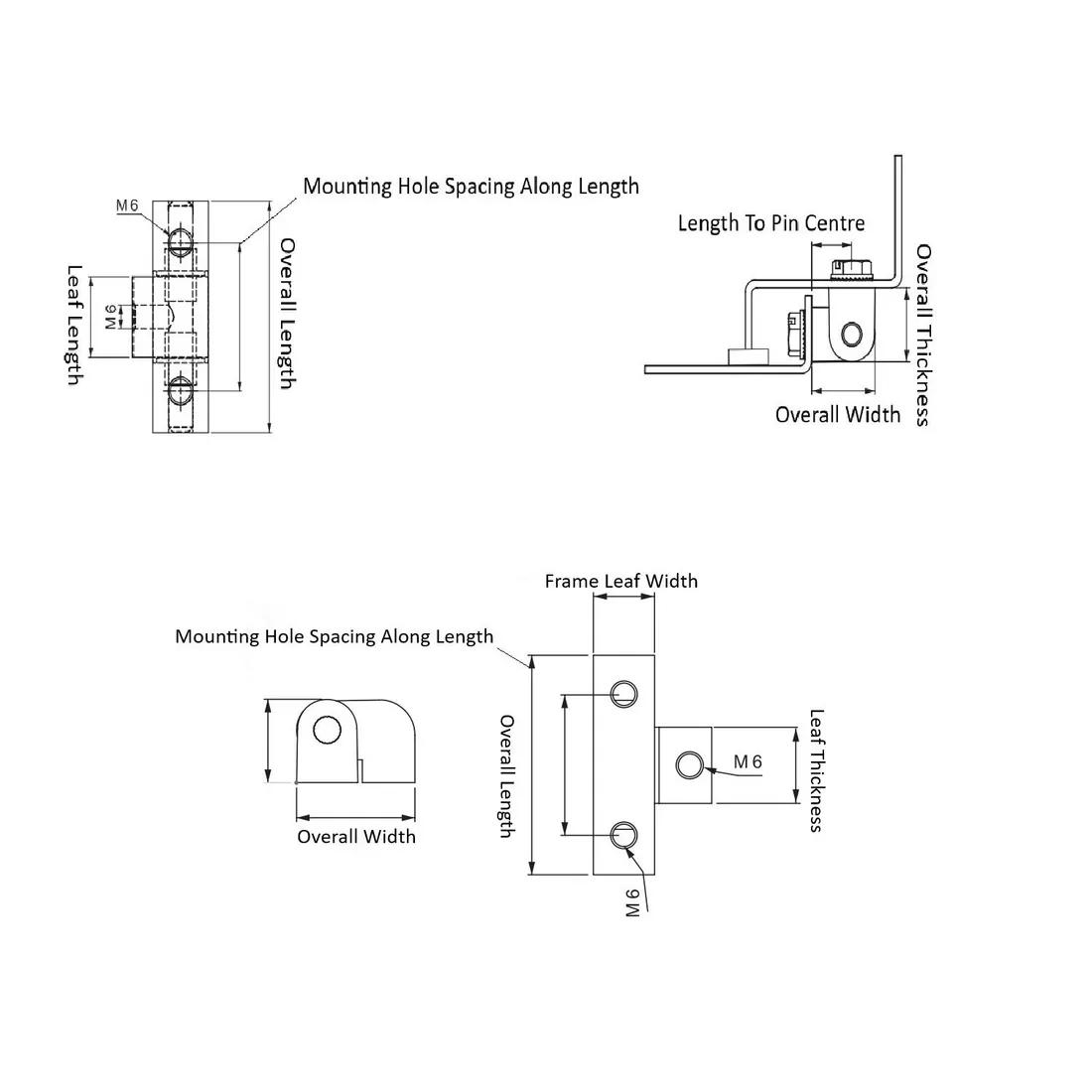

Item Code | Color | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Finish | Body Material | Mounting Method | Length To Pin Centre | Removability | Body Coating | Mount Style | Leaf Length (Seed) | Pin Material | Screw/Stud Size | Hinge Type | Mounting Hole Spacing Along Length A | Maximum Rotation | Mounting Hole Shape | Leaf Thickness | Bearing Type | Frame Leaf Width (Seed) | Maximum Swivel Angle | Hole Shape | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
69312 | Black | Universal | Zinc Alloy | 19.0 mm | 50.0 mm | 19.0 mm | Black Powder-Coated | Zinc Alloy | Screw, Bolt | 12.0 mm | Fixed | Powder-Coated | Side Mount | 17.5 mm | Stainless Steel | M6 | Side Mount Hinge | 32.0 mm | 180 ° | - | - | - | - | - | - | |
69311 | Silver | Universal | Zinc Alloy | 19.0 mm | 50.0 mm | 19.0 mm | Chrome Plated | Zinc Alloy | Screw, Bolt | 12.0 mm | Fixed | Chrome-Plated | Side Mount | 17.5 mm | Stainless Steel | M6 | Side Mount Hinge | 32.0 mm | 180 ° | - | - | - | - | - | - | |
693112 | Silver | Universal | Zinc Alloy | 27.0 mm | 50.0 mm | 19.0 mm | Chrome Plated | Zinc Alloy | Screw, Bolt | - | Fixed | Chrome-Plated | Side Mount | - | Stainless Steel | M6 | Side Mount Hinge | 32.0 mm | 180 ° | Female Thread | 17.5 mm | Delrin | 14.0 mm | - | - | |
693122 | Black | Universal | Zinc Alloy | 27.0 mm | 50.0 mm | 19.0 mm | Black Powder-Coated | Zinc Alloy | Fastener Screw/Bolts | - | Fixed | Powder-Coated | Side Mount | - | Stainless Steel | M6 | Bearing Hinge | 32.0 mm | 180 ° | Female Thread | 17.5 mm | Delrin | 14.0 mm | 180 ° | Open Hole |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
69312
Color
Black
Mounting Orientation
Universal
Material
Zinc Alloy
Overall Width
19.0 mm
69311
Color
Silver
Mounting Orientation
Universal
Material
Zinc Alloy
Overall Width
19.0 mm
693112
Color
Silver
Mounting Orientation
Universal
Overall Width
27.0 mm
Overall Length
50.0 mm
693122
Color
Black
Mounting Orientation
Universal
Overall Width
27.0 mm
Overall Length
50.0 mm
