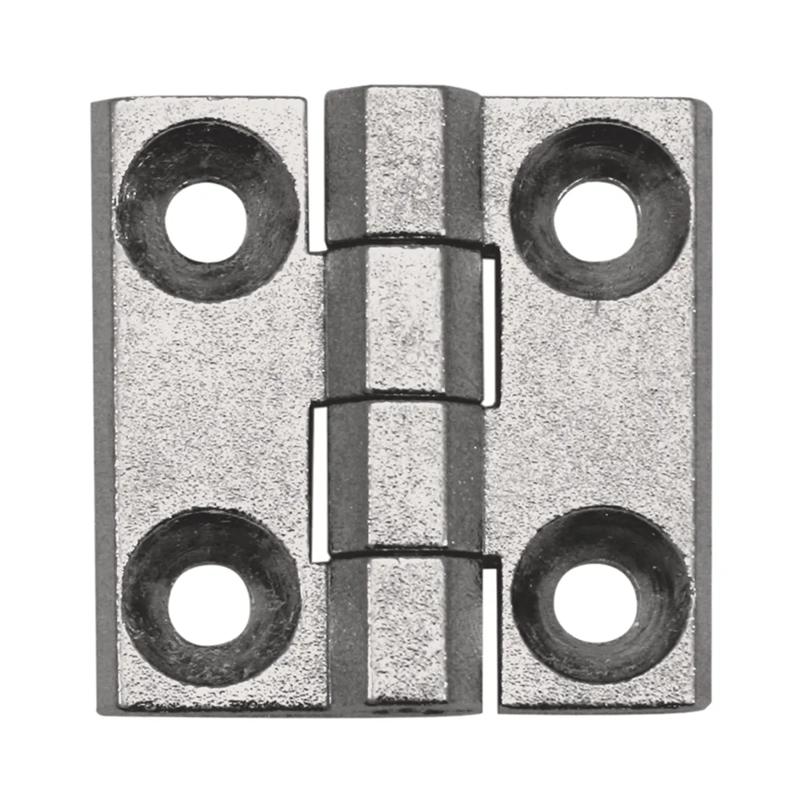

SR600 - Surface Mount Hinge
Showing 1-2 of 2
Per page:1-2 of 2

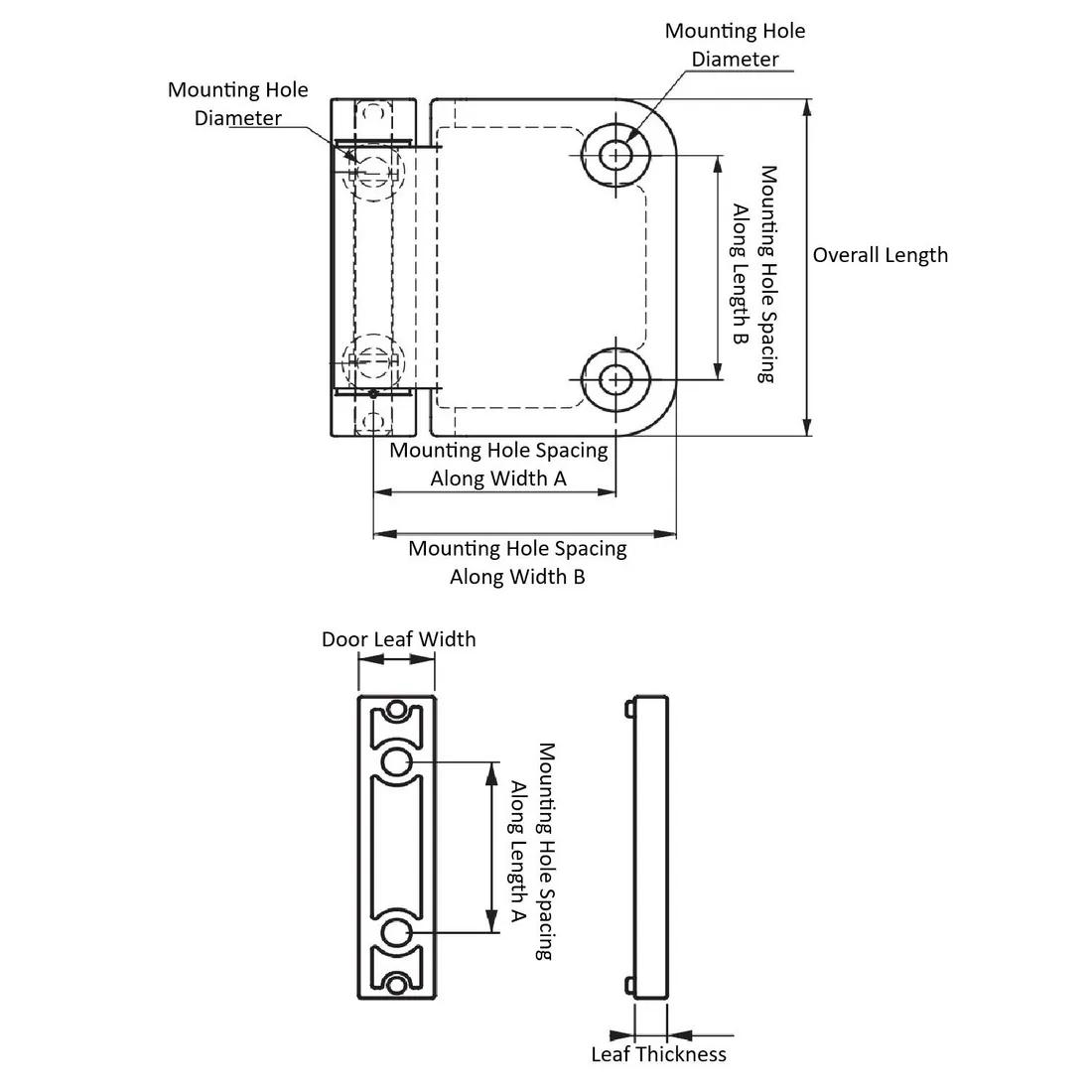

Item Code | Color | Mounting Hole Spacing Along Length B | Mounting Hole Diameter | Pin Material | Body Material | Leaf Thickness | Mounting Hole Spacing Along Width B | Bearing Material | Mounting Hole Spacing Along Width A | Overall Length | Door Leaf Width | Mounting Hole Spacing Along Length A | Maximum Rotation | Hinge Type | Mounting Method | Removability | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
60012003 | Black | 40.0 mm | 5.3 mm, 5.2 mm | Stainless Steel, Steel | Zinc Alloy | 6.0 mm | 40.0 mm | Delrin | 40.0 mm | 60.0 mm | 14.0 mm | 34.0 mm | 180 ° | - | - | - | |
60040003 | Silver | 40.0 mm | 5.3 mm, 5.2 mm | Stainless Steel, Steel | Stainless Steel | 6.0 mm | 40.0 mm | Delrin | 40.0 mm | 60.0 mm | 14.0 mm | 34.0 mm | 180 ° | HVAC Hinge | Fastener Nuts, Screw/Bolts | Fixed |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
60012003
Color
Black
Mounting Hole Spacing Along Length B
40.0 mm
Mounting Hole Diameter
5.3 mm, 5.2 mm
Pin Material
Stainless Steel, Steel
60040003
Color
Silver
Mounting Hole Spacing Along Length B
40.0 mm
Mounting Hole Diameter
5.3 mm, 5.2 mm
Pin Material
Stainless Steel, Steel
