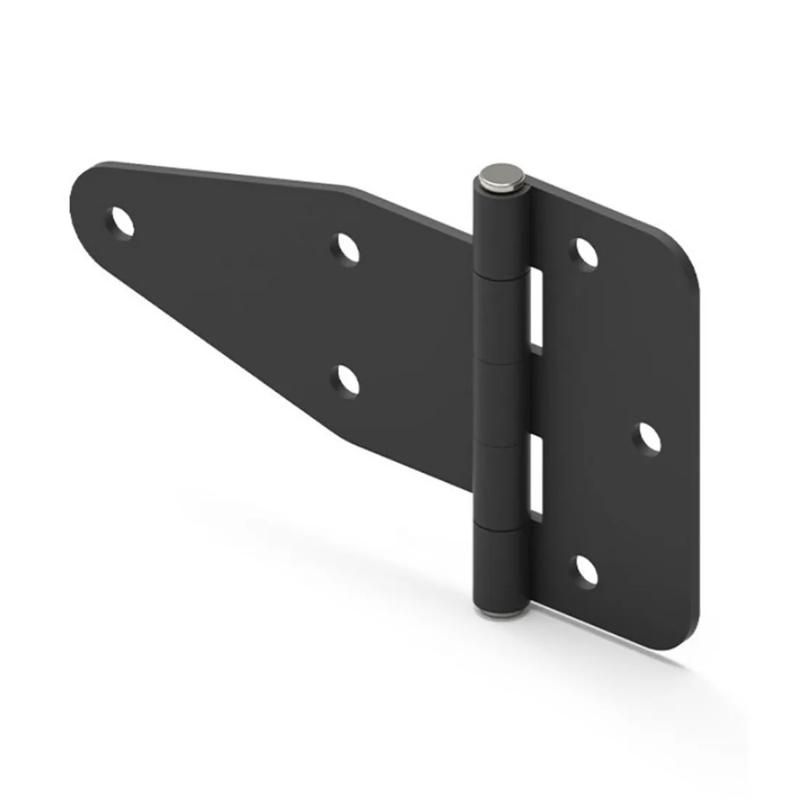

SR599 - Leaf Hinge
Showing 1-2 of 2
Per page:1-2 of 2

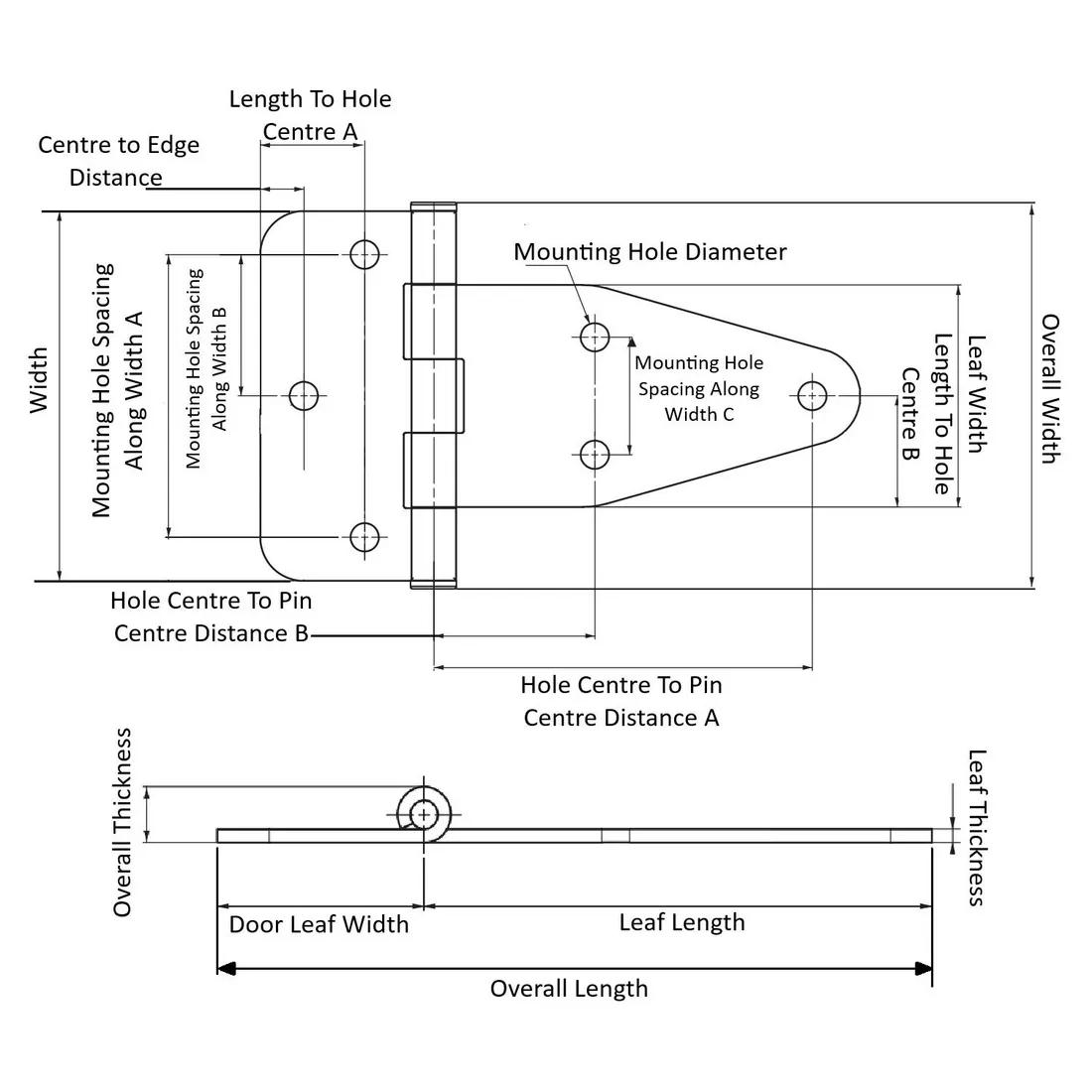

Item Code | Length To Hole Centre A | Overall Width | Overall Thickness | Mounting Hole Diameter | Body Material | Hinge Type | Mounting Hole Spacing Along Width B | Leaf Width | Mounting Method | Removability | Hole Centre To Pin Centre Distance B | Mounting Hole Spacing Along Width A | Overall Length | Door Leaf Width | Length To Hole Centre B | Mounting Hole Spacing Along Width C | Leaf Length (Seed) | Pin Material | Finish | Centre to Edge Distance | Leaf Thickness | Maximum Rotation | Hole Centre To Pin Centre Distance A | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
59962 | 24.0 mm | 89.0 mm | 10.2 mm | 6.5 mm | Steel | Bisagra de correa | 32.5 mm | 51.0 mm | Tuercas, tornillos y pernos de fijación | Fijo | 37.0 mm | 65.0 mm | 138.0 mm | 40.0 mm | 25.5 mm | 27.0 mm | 98.0 mm | Stainless Steel | Black Powder-Coated | 10.0 mm | 2.5 mm | 180 ° | 87.0 mm | |
59940 | 24.0 mm | 89.0 mm | 10.2 mm | 6.5 mm | Stainless Steel | - | 32.5 mm | 51.0 mm | - | - | 37.0 mm | 65.0 mm | 138.0 mm | 40.0 mm | 25.5 mm | 27.0 mm | 98.0 mm | Stainless Steel | Natural | 10.0 mm | 2.5 mm | 180 ° | 87.0 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
59962
Length To Hole Centre A
24.0 mm
Overall Width
89.0 mm
Overall Thickness
10.2 mm
Mounting Hole Diameter
6.5 mm
59940
Length To Hole Centre A
24.0 mm
Overall Width
89.0 mm
Overall Thickness
10.2 mm
Mounting Hole Diameter
6.5 mm
