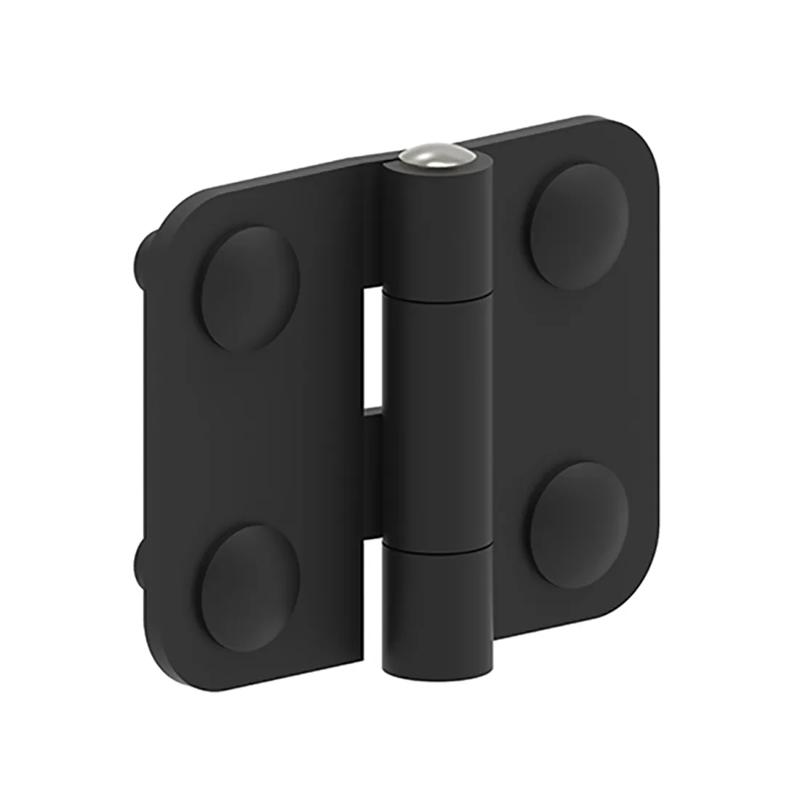

SR499 - Leaf Hinge
Showing 1-3 of 3
Per page:1-3 of 3

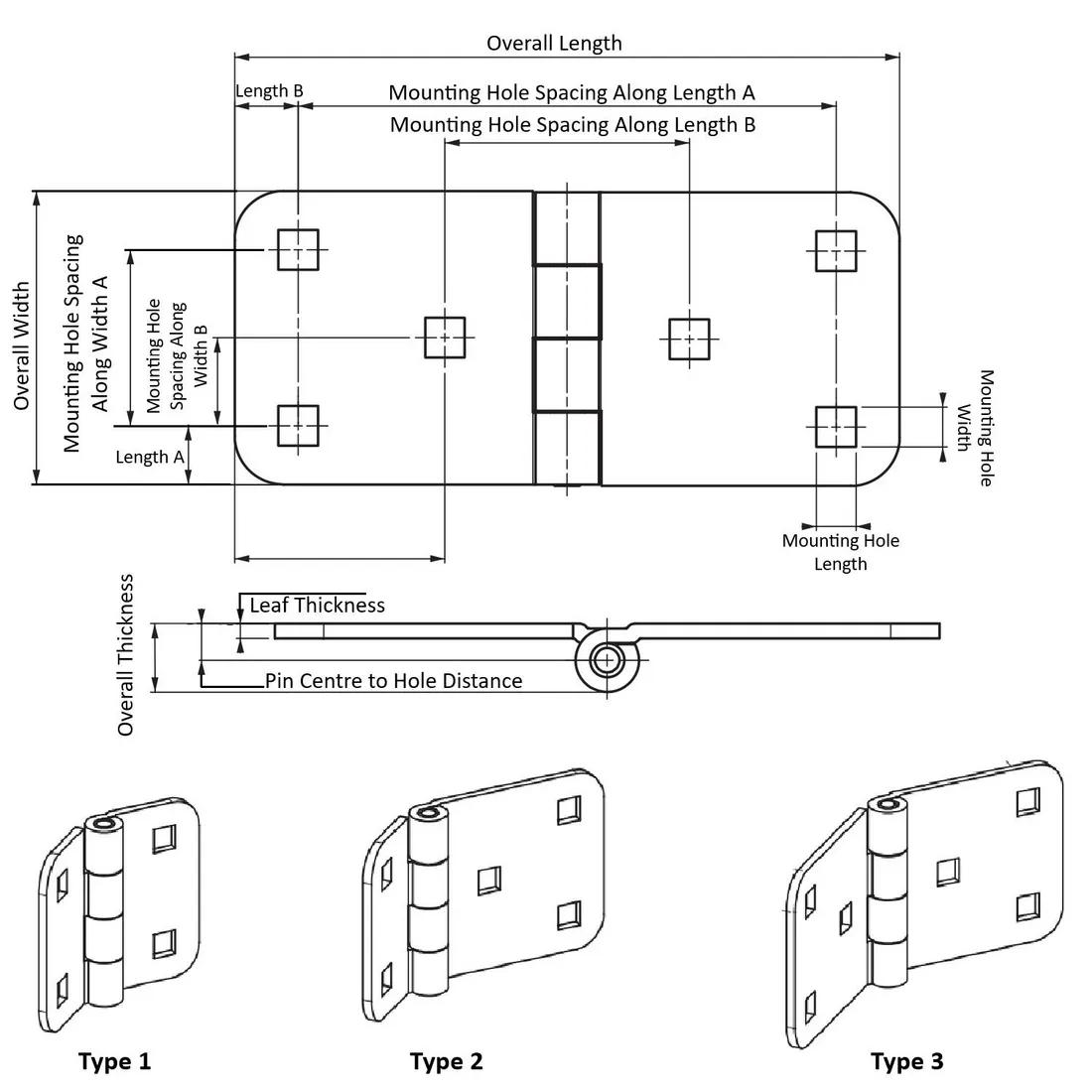

Item Code | Mounting Hole Spacing Along Width A | Overall Width | Overall Length | Length To Hole Centre B | Overall Thickness | Mounting Hole Width | Pin Material | Finish | Leaf Thickness | Hinge Type | Type | Mounting Hole Length | Mounting Method | Removability | Length To Hole Centre A | Color | Thread Size | Material | Mounting Hole Spacing Along Length A | Maximum Rotation | Mounting Hole Spacing Along Length B | Length To Hole Centre C | Mounting Hole Spacing Along Width B | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
499621M | 36.0 mm | 60.0 mm | 76.0 mm | 13.0 mm | 14.0 mm | 8.0 mm | Stainless Steel | Black Powder-Coated | 3.0 mm | Leaf Hinge | 1 | 8.0 mm | Fastener Nuts, Screw/Bolts | Fixed | 12.0 mm | Black | M8 x 12.0 | Steel | 50.0 mm | 270 ° | - | - | - | |
499623M | 36.0 mm | 60.0 mm | 136.0 mm | 13.0 mm | 14.0 mm | 8.0 mm | Stainless Steel | Black Powder-Coated | 3.0 mm | Leaf Hinge | 3 | 8.0 mm | Fastener Nuts, Screw/Bolts | Fixed | 12.0 mm | Black | M8 x 12.0 | Steel | 110.0 mm | 270 ° | 50.0 mm | 43.0 mm | 18.0 mm | |
499622M | 36.0 mm | 60.0 mm | 106.0 mm | 13.0 mm | 14.0 mm | 8.0 mm | Stainless Steel | Black Powder-Coated | 3.0 mm | Leaf Hinge | 2 | 8.0 mm | Fastener Nuts, Screw/Bolts | Fixed | 12.0 mm | Black | M8 x 12.0 | Steel | 80.0 mm | 270 ° | 30.0 mm | - | 18.0 mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
499621M
Mounting Hole Spacing Along Width A
36.0 mm
Overall Width
60.0 mm
Overall Length
76.0 mm
Length To Hole Centre B
13.0 mm
499623M
Mounting Hole Spacing Along Width A
36.0 mm
Mounting Hole Spacing Along Length B
50.0 mm
Overall Width
60.0 mm
Overall Length
136.0 mm
499622M
Mounting Hole Spacing Along Width A
36.0 mm
Mounting Hole Spacing Along Length B
30.0 mm
Overall Width
60.0 mm
Overall Length
106.0 mm
