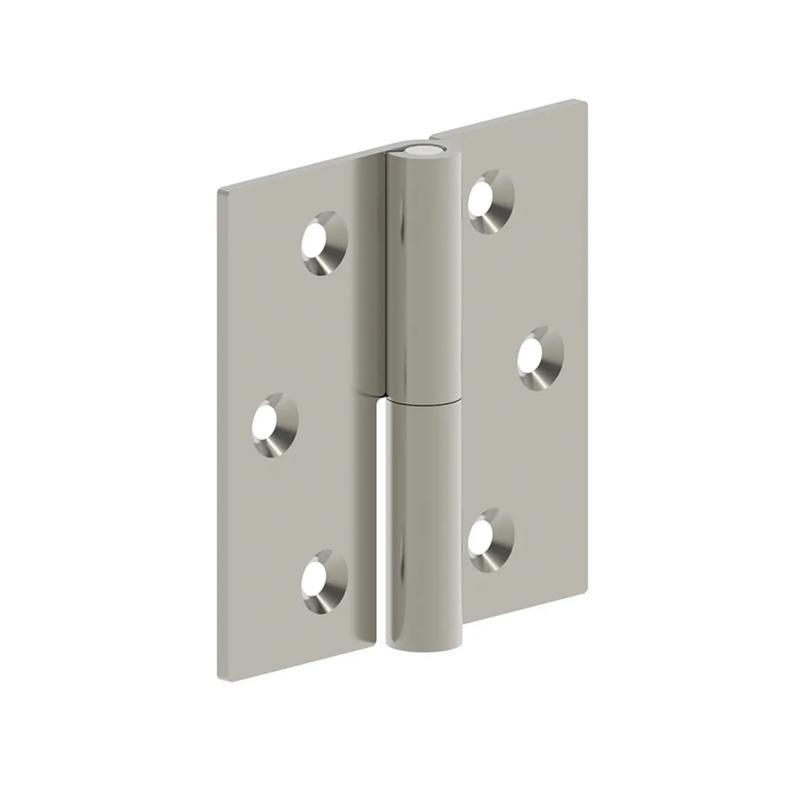

SR4299 - Surface Mount Hinge - Lift-Off
Showing 1-4 of 4
Per page:1-4 of 4

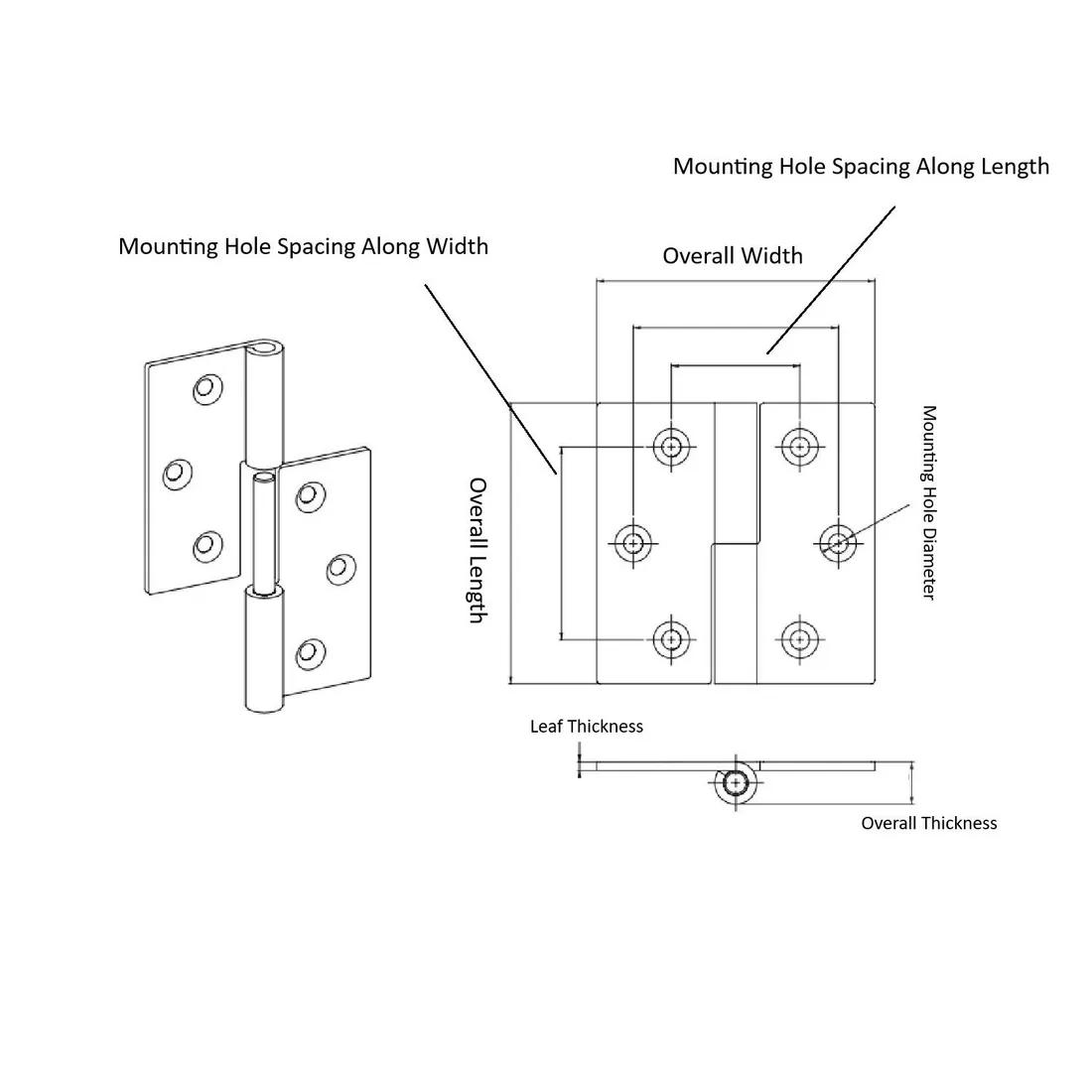

Item Code | Mounting Method | Leaf Shape | Color | Mounting Hole Spacing Along Width | Mounting Hole Spacing Along Length B | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Mounting Hole Diameter | Pin Material | Mounting Hole Shape | Finish | Body Material | Leaf Thickness | Hinge Type | Body Coating | Mount Style | Mounting Hole Spacing Along Length A | Maximum Rotation | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
429940001 | Fastener Screw/Bolts | Rectangular | Natural | 55.0 mm | 59.0 mm | Right-Handed | Steel | 80.0 mm | 80.0 mm | 12.0 mm | 5.5 mm | Stainless Steel | Countersunk | Zinc-Plated | Steel | 2.5 mm | Right-Handed | Zinc-Plated | Surface Mount | 37.0 mm | 270 ° | |
429963001 | Fastener Screw/Bolts | Rectangular | Natural | 55.0 mm | 59.0 mm | Right-Handed | Stainless Steel | 80.0 mm | 80.0 mm | 12.0 mm | 5.5 mm | Stainless Steel | Countersunk | Natural | Stainless Steel | 2.5 mm | Right-Handed | - | Surface Mount | 37.0 mm | 270 ° | |
429940002 | Fastener Screw/Bolts | Rectangular | Natural | 55.0 mm | 59.0 mm | Left-Handed | Steel | 80.0 mm | 80.0 mm | 12.0 mm | 5.5 mm | Stainless Steel | Countersunk | Zinc-Plated | Steel | 2.5 mm | Left-Handed | Zinc-Plated | Surface Mount | 37.0 mm | 270 ° | |
429963002 | Fastener Screw/Bolts | Rectangular | Natural | 55.0 mm | 59.0 mm | Left-Handed | Stainless Steel | 80.0 mm | 80.0 mm | 12.0 mm | 5.5 mm | Stainless Steel | Countersunk | Natural | Stainless Steel | 2.5 mm | Left-Handed | - | Surface Mount | 37.0 mm | 270 ° |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
429940001
Mounting Method
Fastener Screw/Bolts
Leaf Shape
Rectangular
Color
Natural
Mounting Hole Spacing Along Width
55.0 mm
429963001
Mounting Method
Fastener Screw/Bolts
Leaf Shape
Rectangular
Color
Natural
Mounting Hole Spacing Along Width
55.0 mm
429940002
Mounting Method
Fastener Screw/Bolts
Leaf Shape
Rectangular
Color
Natural
Mounting Hole Spacing Along Width
55.0 mm
429963002
Mounting Method
Fastener Screw/Bolts
Leaf Shape
Rectangular
Color
Natural
Mounting Hole Spacing Along Width
55.0 mm
