SR399 - Surface Mount Hinges
Showing 1-6 of 6
Per page:1-6 of 6

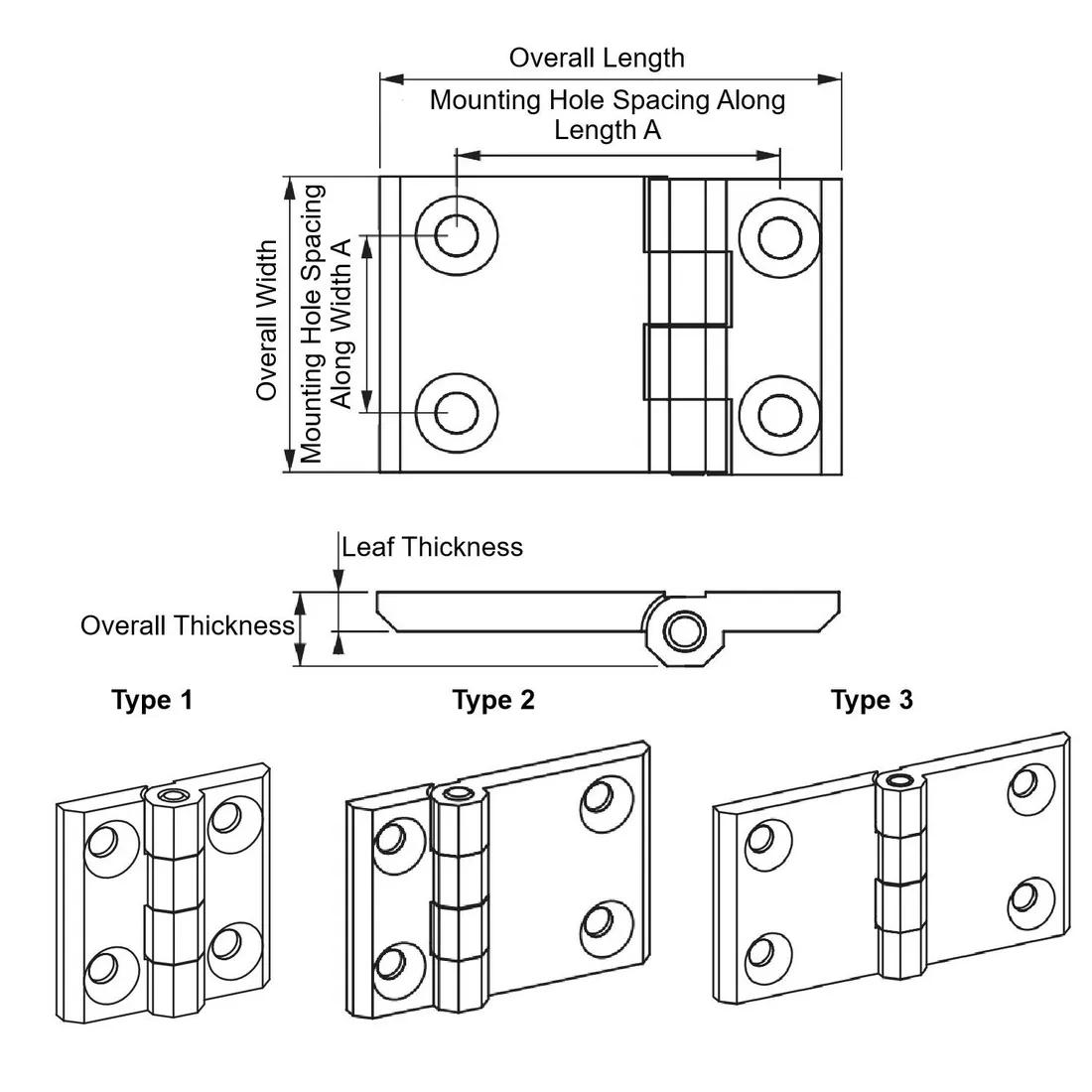

Item Code | Leaf Shape | Color | Mounting Hole Spacing Along Width A | Material | Overall Width | Overall Length | Overall Thickness | Body Coating | Pin Material | Mounting Hole Shape | Finish | Body Material | Leaf Thickness | Hinge Type | Stud Thread Size | Mounting Method | Removability | Mounting Hole Spacing Along Length A | Maximum Rotation | Length to Hole Center | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
399115 | Rectangular | Silver | 63.0 mm | Zinc Alloy;Stainless Steel | 90.0 mm | 60.0 mm | 15.0 mm | Chrome-Plated | Stainless Steel | Countersink Through-Hole | Chrome Plated | Zinc Alloy | 8.0 mm | Butt Hinge | Not Applicable | Fastener Nuts, Screw/Bolts | Fixed | 36.0 mm | 270 ° | - | |
399125 | Rectangular | Black | 63.0 mm | Zinc Alloy;Stainless Steel | 90.0 mm | 60.0 mm | 15.0 mm | Powder-Coated | Stainless Steel | Countersink Through-Hole | Black Powder-Coated | Zinc Alloy | 8.0 mm | Butt Hinge | Not Applicable | Fastener Nuts, Screw/Bolts | Fixed | 36.0 mm | 270 ° | 15.0 mm | |
399114 | Rectangular | Silver | 36.0 mm | Zinc Alloy;Stainless Steel | 60.0 mm | 60.0 mm | 15.0 mm | Chrome-Plated | Stainless Steel | Countersink Through-Hole | Chrome Plated | Zinc Alloy | 8.0 mm | Butt Hinge | Not Applicable | Fastener Nuts, Screw/Bolts | Fixed | 36.0 mm | 270 ° | - | |
399126 | Rectangular | Black | 90.0 mm | Zinc Alloy;Stainless Steel | 120.0 mm | 60.0 mm | 15.0 mm | Powder-Coated | Stainless Steel | Countersink Through-Hole | Black Powder-Coated | Zinc Alloy | 8.0 mm | Butt Hinge | Not Applicable | Fastener Nuts, Screw/Bolts | Fixed | 36.0 mm | 270 ° | - | |
399124 | Rectangular | Black | 36.0 mm | Zinc Alloy;Stainless Steel | 60.0 mm | 60.0 mm | 15.0 mm | Powder-Coated | Stainless Steel | Countersink Through-Hole | Black Powder-Coated | Zinc Alloy | 8.0 mm | Butt Hinge | Not Applicable | Fastener Nuts, Screw/Bolts | Fixed | 36.0 mm | 270 ° | - | |
399116 | Rectangular | Silver | 90.0 mm | Zinc Alloy;Stainless Steel | 120.0 mm | 60.0 mm | 15.0 mm | Chrome-Plated | Stainless Steel | Countersink Through-Hole | Chrome Plated | Zinc Alloy | 8.0 mm | Butt Hinge | Not Applicable | Fastener Nuts, Screw/Bolts | Fixed | 36.0 mm | 270 ° | - |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
399115
Leaf Shape
Rectangular
Color
Silver
Mounting Hole Spacing Along Width A
63.0 mm
Material
Zinc Alloy;Stainless Steel
399125
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width A
63.0 mm
Material
Zinc Alloy;Stainless Steel
399114
Leaf Shape
Rectangular
Color
Silver
Mounting Hole Spacing Along Width A
36.0 mm
Material
Zinc Alloy;Stainless Steel
399126
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width A
90.0 mm
Material
Zinc Alloy;Stainless Steel
Per page:
1–5 of 7
