SR399 - Leaf and Flag Hinges- Flush Mount
Showing 1-6 of 6
Per page:1-6 of 6

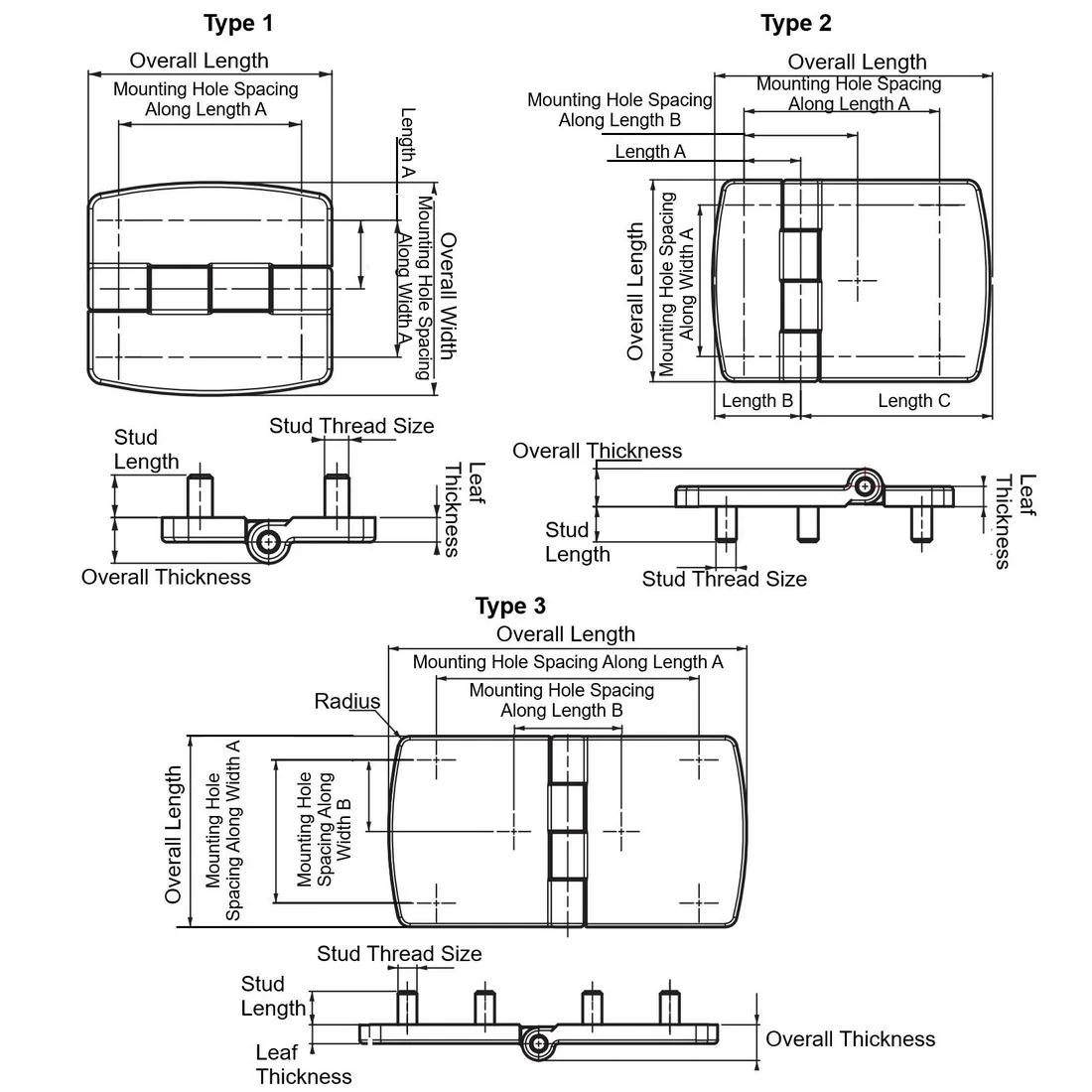

Item Code | Stud Length | Leaf Shape | Color | Mounting Hole Spacing Along Width | Mounting Hole Spacing Along Length | Material | Overall Width | Overall Length | Overall Thickness | Body Coating | Pin Material | Finish | Body Material | Leaf Thickness | Hinge Type | Stud Thread Size | Maximum Rotation | Mounting Method | Removability | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
399123 | 14.0 mm | Rectangular | Black | 90.0 mm | 36.0 mm | Zinc Alloy;Stainless Steel | 120.0 mm | 60.0 mm | 15.0 mm | Powder-Coated | Stainless Steel | Black Powder-Coated | Zinc Alloy | 8.0 mm | Butt Hinge | M8 | 270 ° | Fastener Nuts | Fixed | |
399121 | 14.0 mm | Rectangular | Black | 36.0 mm | 36.0 mm | Zinc Alloy;Stainless Steel | 60.0 mm | 60.0 mm | 15.0 mm | Powder-Coated | Stainless Steel | Black Powder-Coated | Zinc Alloy | 8.0 mm | Butt Hinge | M8 | 270 ° | Fastener Nuts | Fixed | |
399111 | 14.0 mm | Rectangular | Silver | 36.0 mm | 36.0 mm | Zinc Alloy;Stainless Steel | 60.0 mm | 60.0 mm | 15.0 mm | Chrome-Plated | Stainless Steel | Chrome Plated | Zinc Alloy | 8.0 mm | Butt Hinge | M8 | 270 ° | Fastener Nuts | Fixed | |
399122 | 14.0 mm | Rectangular | Black | 63.0 mm | 36.0 mm | Zinc Alloy;Stainless Steel | 90.0 mm | 60.0 mm | 15.0 mm | Powder-Coated | Stainless Steel | Black Powder-Coated | Zinc Alloy | 8.0 mm | Butt Hinge | M8 | 270 ° | Fastener Nuts | Fixed | |
399113 | 14.0 mm | Rectangular | Silver | 90.0 mm | 36.0 mm | Zinc Alloy;Stainless Steel | 120.0 mm | 60.0 mm | 15.0 mm | Chrome-Plated | Stainless Steel | Chrome Plated | Zinc Alloy | 8.0 mm | Butt Hinge | M8 | 270 ° | Fastener Nuts | Fixed | |
399112 | 14.0 mm | Rectangular | Silver | 63.0 mm | 36.0 mm | Zinc Alloy;Stainless Steel | 90.0 mm | 60.0 mm | 15.0 mm | Chrome-Plated | Stainless Steel | Chrome Plated | Zinc Alloy | 8.0 mm | Butt Hinge | M8 | 270 ° | Fastener Nuts | Fixed |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
399123
Stud Length
14.0 mm
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width
90.0 mm
399121
Stud Length
14.0 mm
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width
36.0 mm
399111
Stud Length
14.0 mm
Leaf Shape
Rectangular
Color
Silver
Mounting Hole Spacing Along Width
36.0 mm
399122
Stud Length
14.0 mm
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width
63.0 mm
