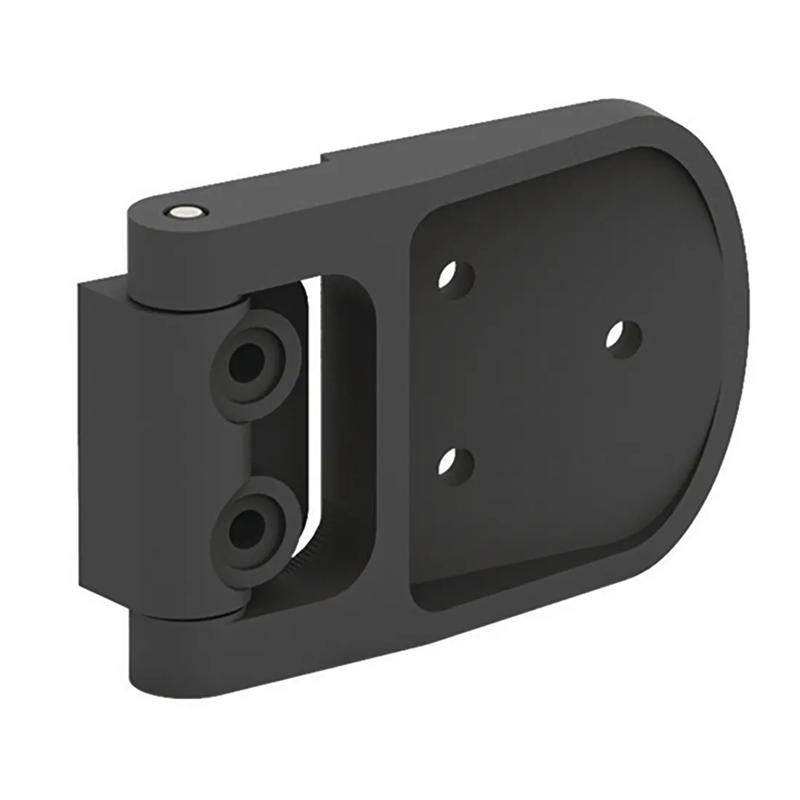

SR300 - Surface Mount Hinge - Heavy Duty
Showing 1-1 of 1
Per page:1-1 of 1

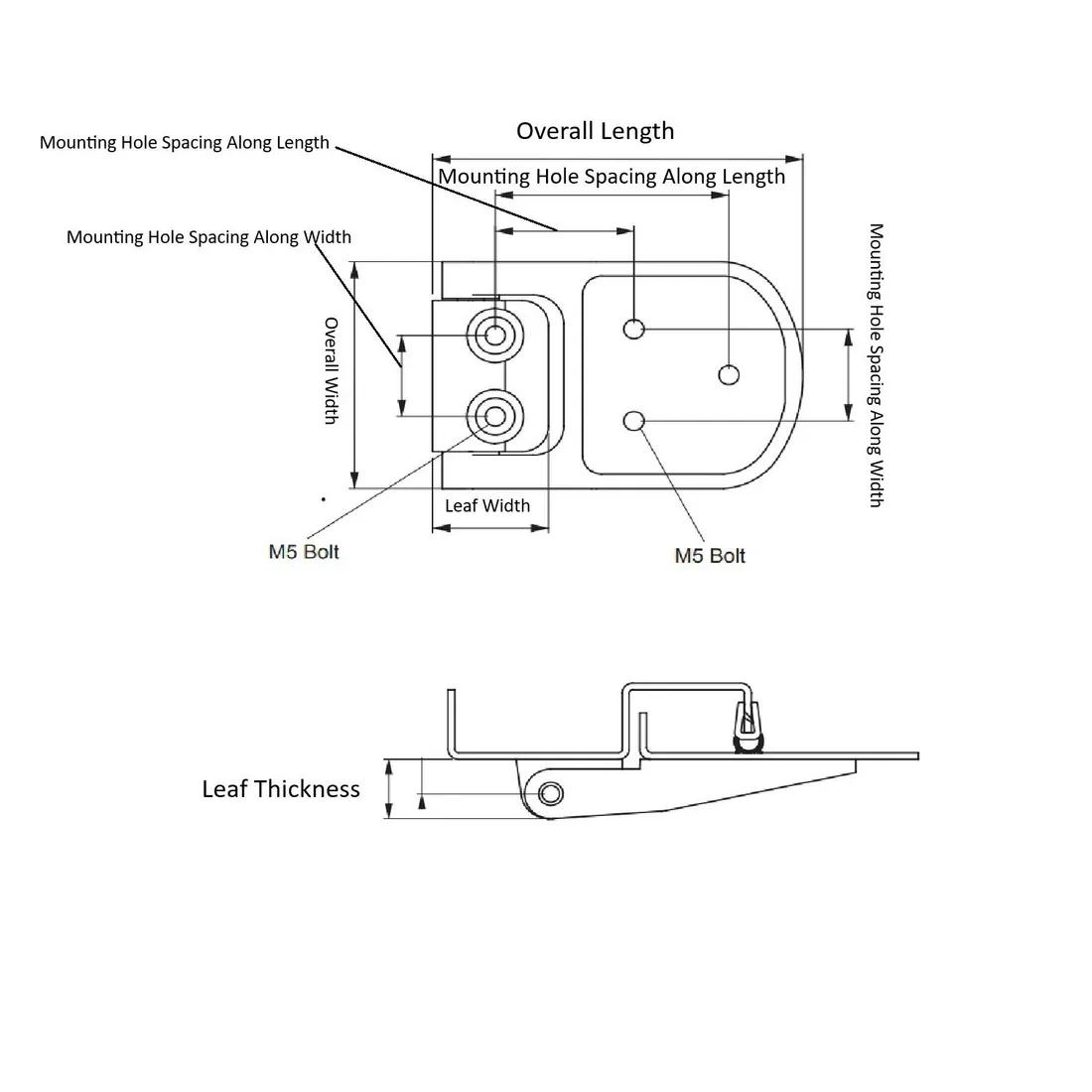

Item Code | Leaf Shape | Color | Mounting Hole Spacing Along Width A | Mounting Hole Spacing Along Length B | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Mount Style | Pin Material | Mounting Hole Shape | Leaf Thickness | Mounting Hole Spacing Along Width B | Leaf Width | Mounting Method | Removability | Overall Height | Hinge Type | Mounting Hole Spacing Along Length A | Maximum Rotation | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
300M | Rectangular | Black | 22.5 mm | 61.5 mm | Universal | Nylon 6 | 63.0 mm | 97.5 mm | 18.0 mm | Surface Mount | Stainless Steel | Countersink Through-Hole | 18.0 mm | 25.5 mm | 30.5 mm | Fastener Nuts, Screw/Bolts | Fixed | 18.0 mm | HVAC Hinge | 36.5 mm | 180 ° |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
300M
Leaf Shape
Rectangular
Color
Black
Mounting Hole Spacing Along Width A
22.5 mm
Mounting Hole Spacing Along Length B
61.5 mm
